DID chain kit for KTM EXC 250 12-17 520 NZ chain kit

DID Chain Kit for KTM EXC 250 12-17 520 NZ Chain Set

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

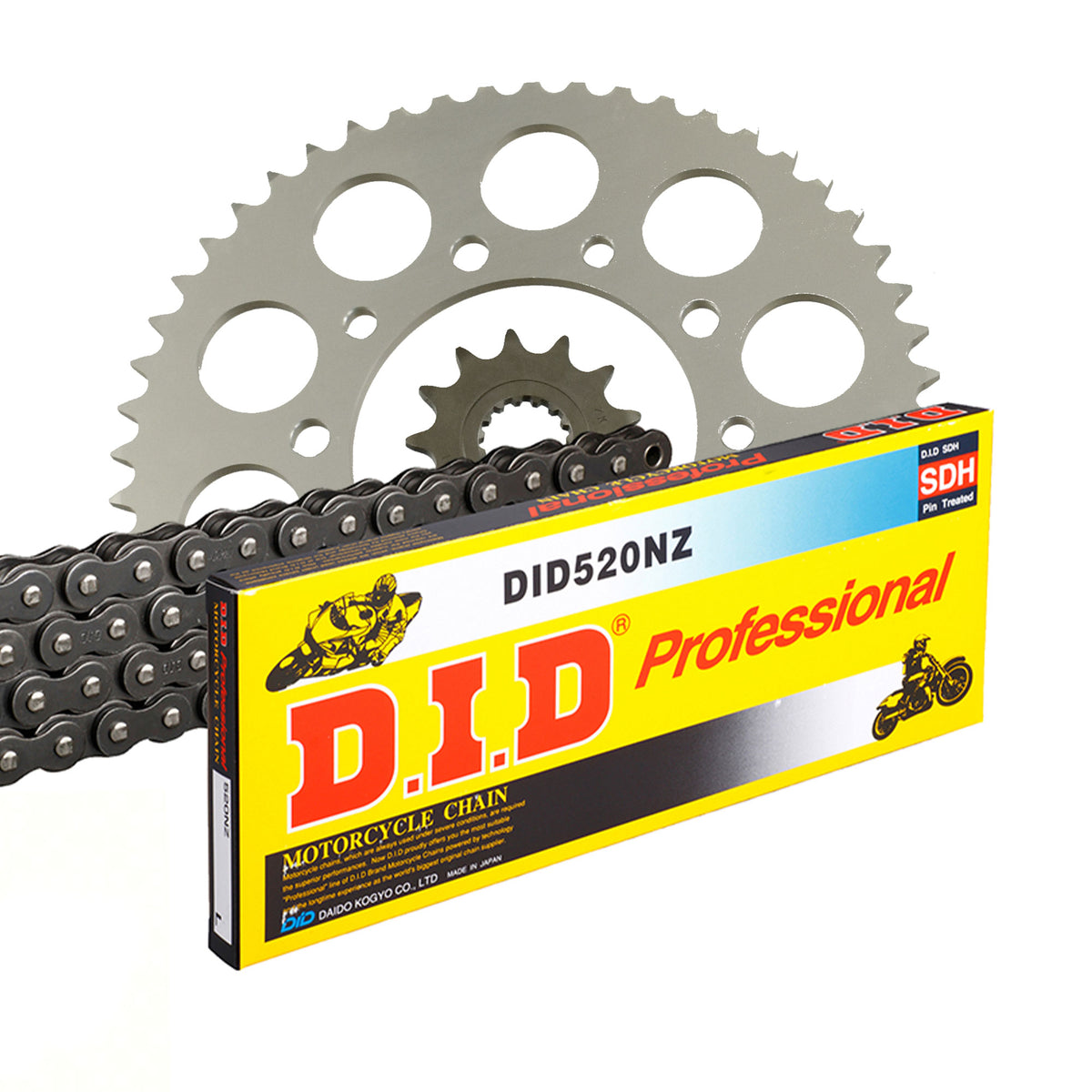

Components of the chain kit KTM EXC 250 2T 2012-2017

• Front sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 NZ 118 with clip link - d6252001118
• Rear sprocket: AFAM sprocket ALU #520 50 teeth - a72304n.50
• Gear ratio front sprocket-chain-rear sprocket: 14-118-50

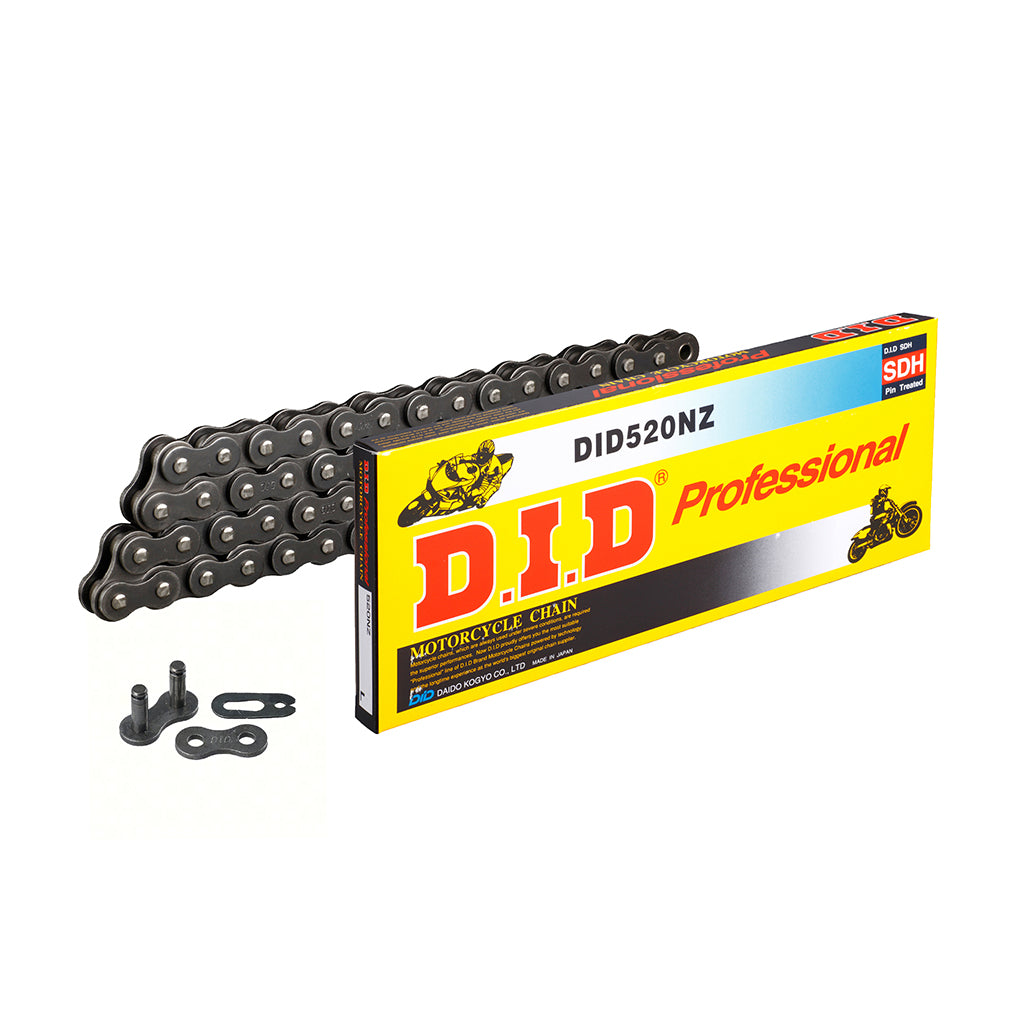

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-25317

Suitable for

KTM 126 - 250 cc EXC 250 2T 2012
KTM 126 - 250 cc EXC 250 2T 2013
KTM 126 - 250 cc EXC 250 2T 2014
KTM 126 - 250 cc EXC 250 2T 2015
KTM 126 - 250 cc EXC 250 2T 2016
KTM 126 - 250 cc EXC 250 2T 2017
