DID chain kit for KTM EXC 250 Six Days 12-17 520 NZ chain kit

DID chain set for KTM EXC 250 Six Days 12-17 520 NZ chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

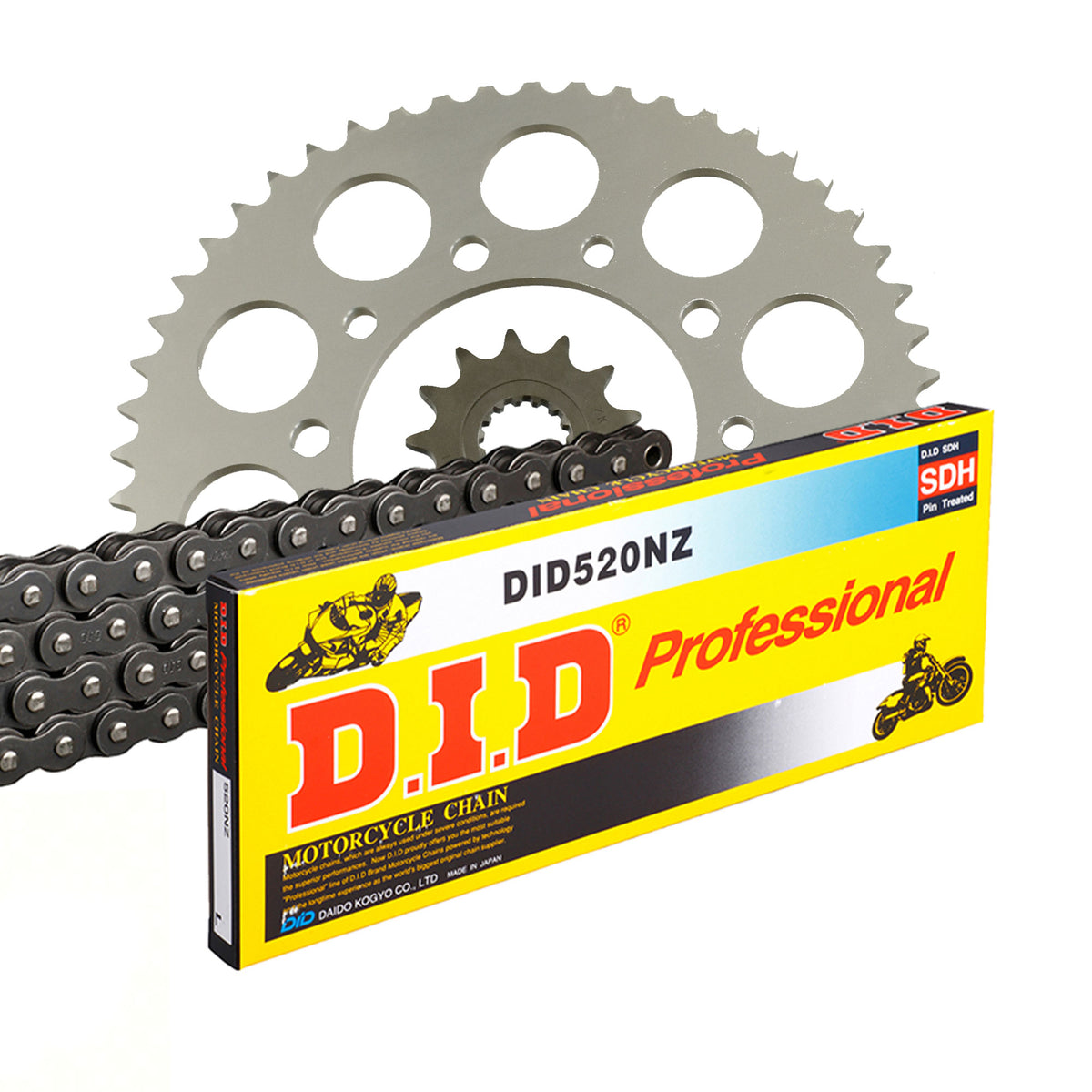

Components of the chain kit KTM EXC 250 Six Days 2T 2012-2017

• Front sprocket: AFAM sprocket #520 14 teeth - a73301.14

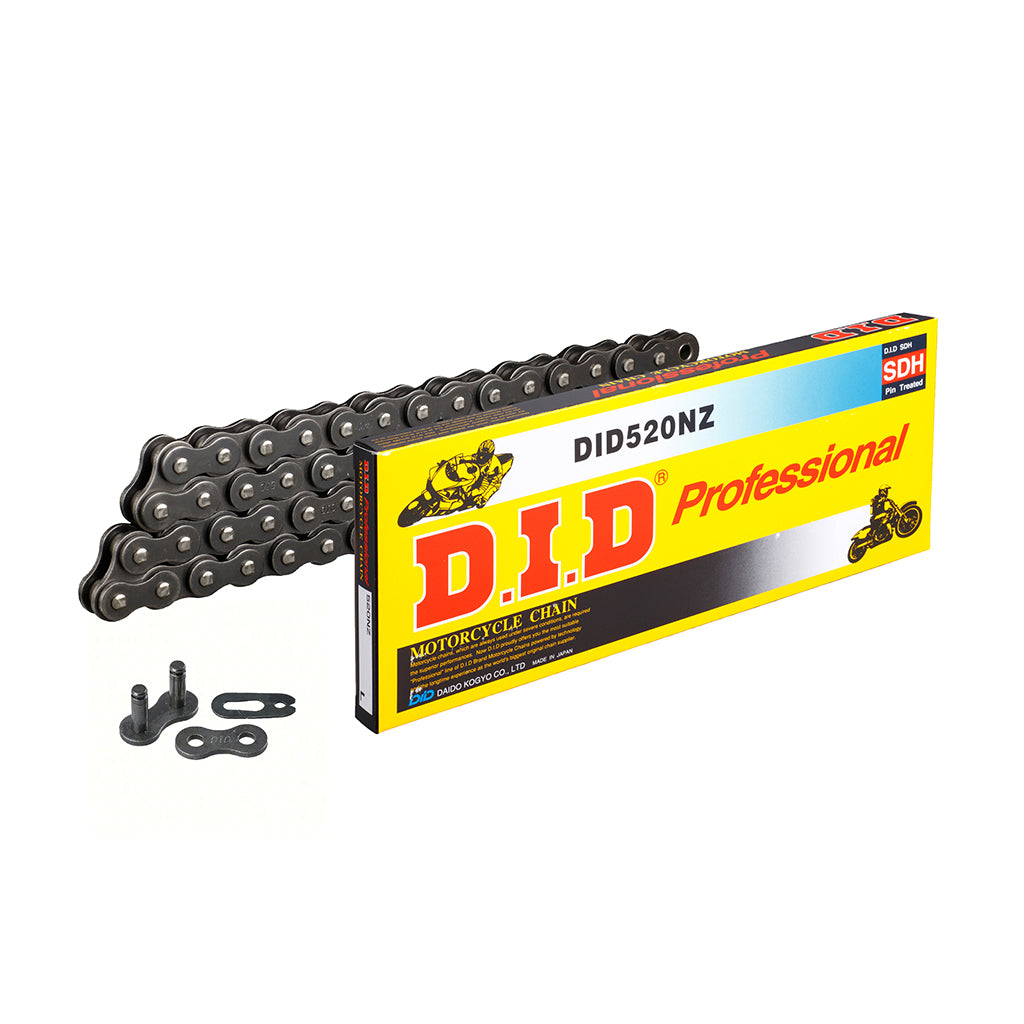

• Chain: DID chain 520 NZ 118 with clip connecting link - d6252001118
• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a71304.50
• Gear ratio sprocket-chain-rear sprocket: 14-118-50

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical specifications:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-28323

Fits for

KTM 126 - 250 cc EXC 250 Six Days 2T 2012
KTM 126 - 250 cc EXC 250 Six Days 2T 2013
KTM 126 - 250 cc EXC 250 Six Days 2T 2014
KTM 126 - 250 cc EXC 250 Six Days 2T 2015
KTM 126 - 250 cc EXC 250 Six Days 2T 2016
KTM 126 - 250 cc EXC 250 Six Days 2T 2017
