DID chain kit for KTM EXC 250 TPI 2021 520 VX3 chain kit

DID chain set for KTM EXC 250 TPI 2021 520 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless stated otherwise: Not an original part - manufacturer names are for compatibility purposes only!

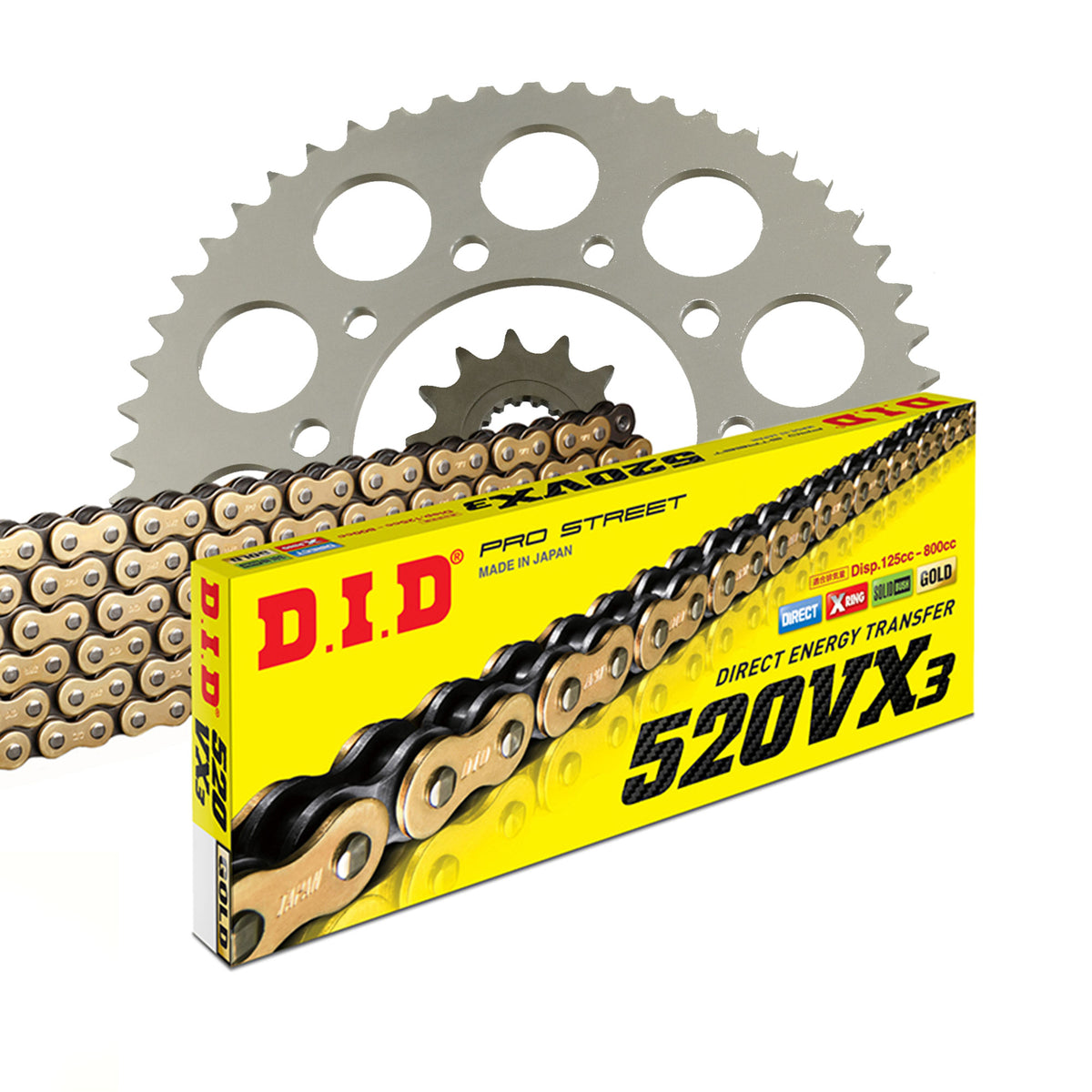

Components of the chain kit KTM EXC 250 TPI 2T 2021-2021

• Sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 VX3 G&B 118 with rivet link - d520vx3-118
• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a72304n.50
• Gear ratio sprocket-chain-rear sprocket: 13-118-50

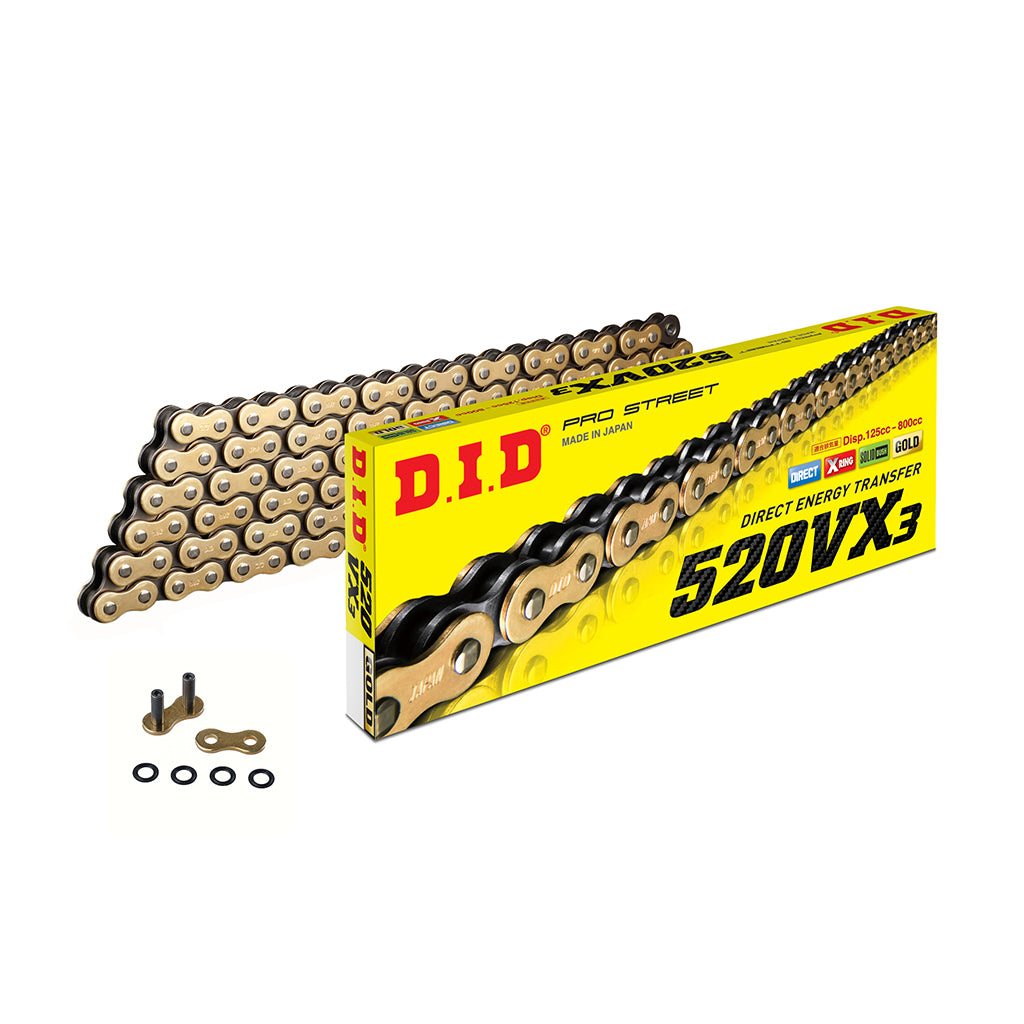

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: gold/black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless stated otherwise: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-25453

Suitable for

KTM 126 - 250 cc EXC 250 TPI 2T 2021
