DID chain kit for KTM EXC 250 TPI Six Days 18-22 520 ERT3 chain kit

DID chain kit for KTM EXC 250 TPI Six Days 18-22 520 ERT3 chain set

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM EXC 250 TPI Six Days 2T 2018-2022

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 ERT3 G&G 118 with clip link - d520ert3-118

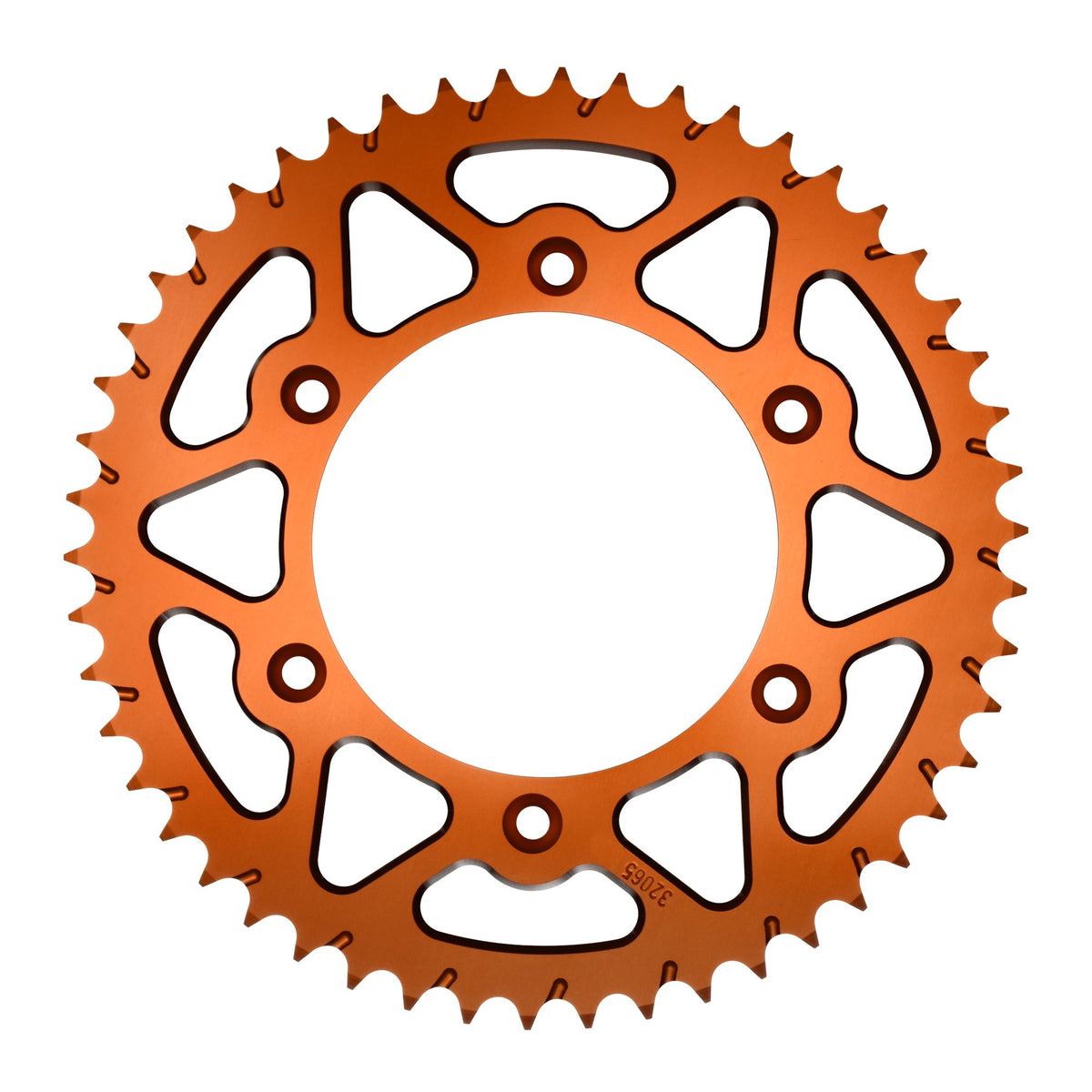

• Rear sprocket: Esjot rear sprocket 72304-50 ALU #520 50 teeth orange - a72304o.50
• Transmission ratio sprocket-chain-rear sprocket: 14-118-50

DID 520 ERT3

Extra reinforced pure Moto-Cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / Moto-Cross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Part number	KKF-25510

Suitable for

KTM 126 - 250 cc EXC 250 TPI Six Days 2T 2018
KTM 126 - 250 cc EXC 250 TPI Six Days 2T 2019
KTM 126 - 250 cc EXC 250 TPI Six Days 2T 2020
KTM 126 - 250 cc EXC 250 TPI Six Days 2T 2021
KTM 126 - 250 cc EXC 250 TPI Six Days 2T 2022
