DID chain set for KTM EXC 250 TPI Six Days 2021 520 NZ chain kit

DID chain kit for KTM EXC 250 TPI Six Days 2021 520 NZ chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

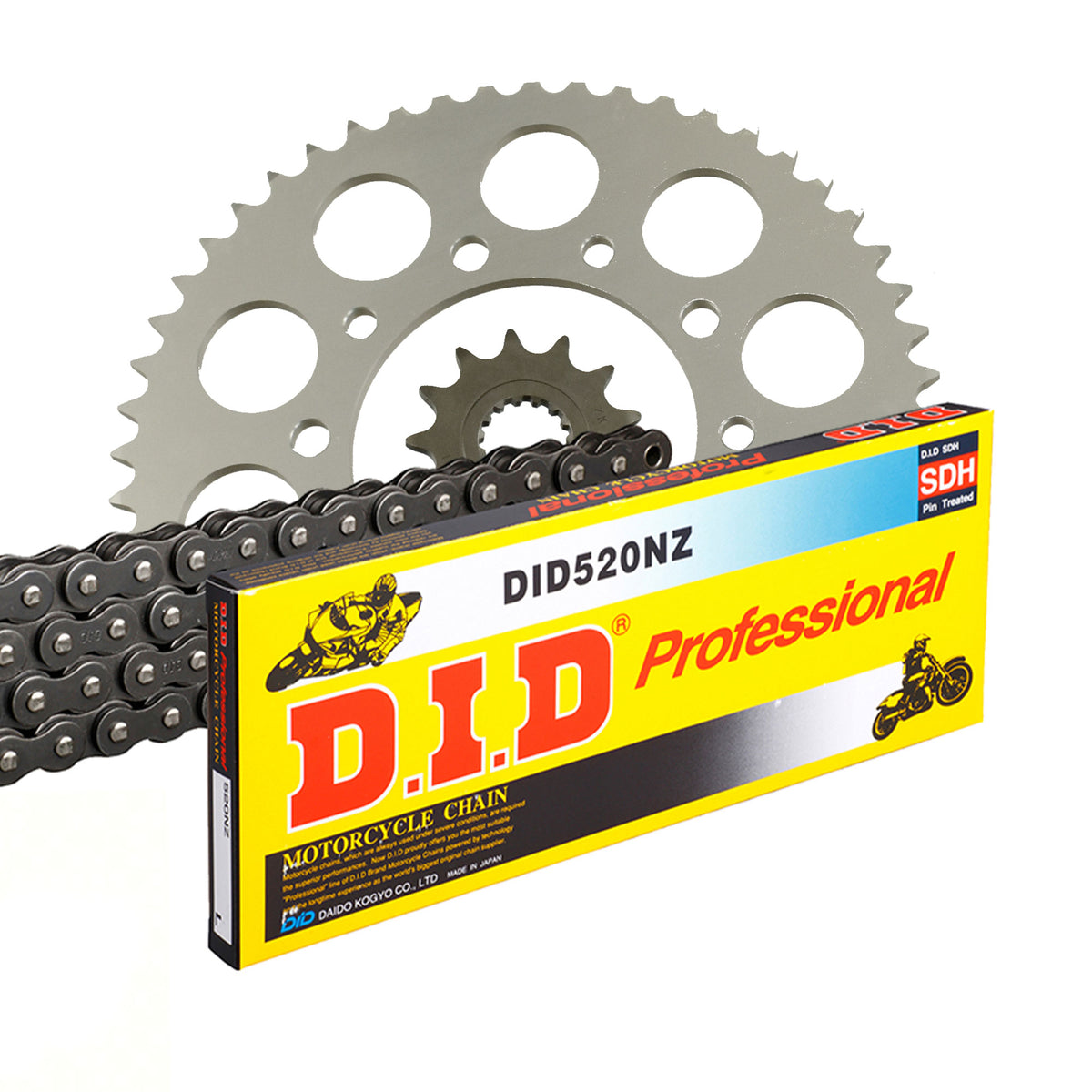

Components of the chain kit KTM EXC 250 TPI Six Days 2T 2021-2021

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 NZ 118 with clip link - d6252001118
• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a71304.50
• Transmission ratio front sprocket-chain-rear sprocket: 13-118-50

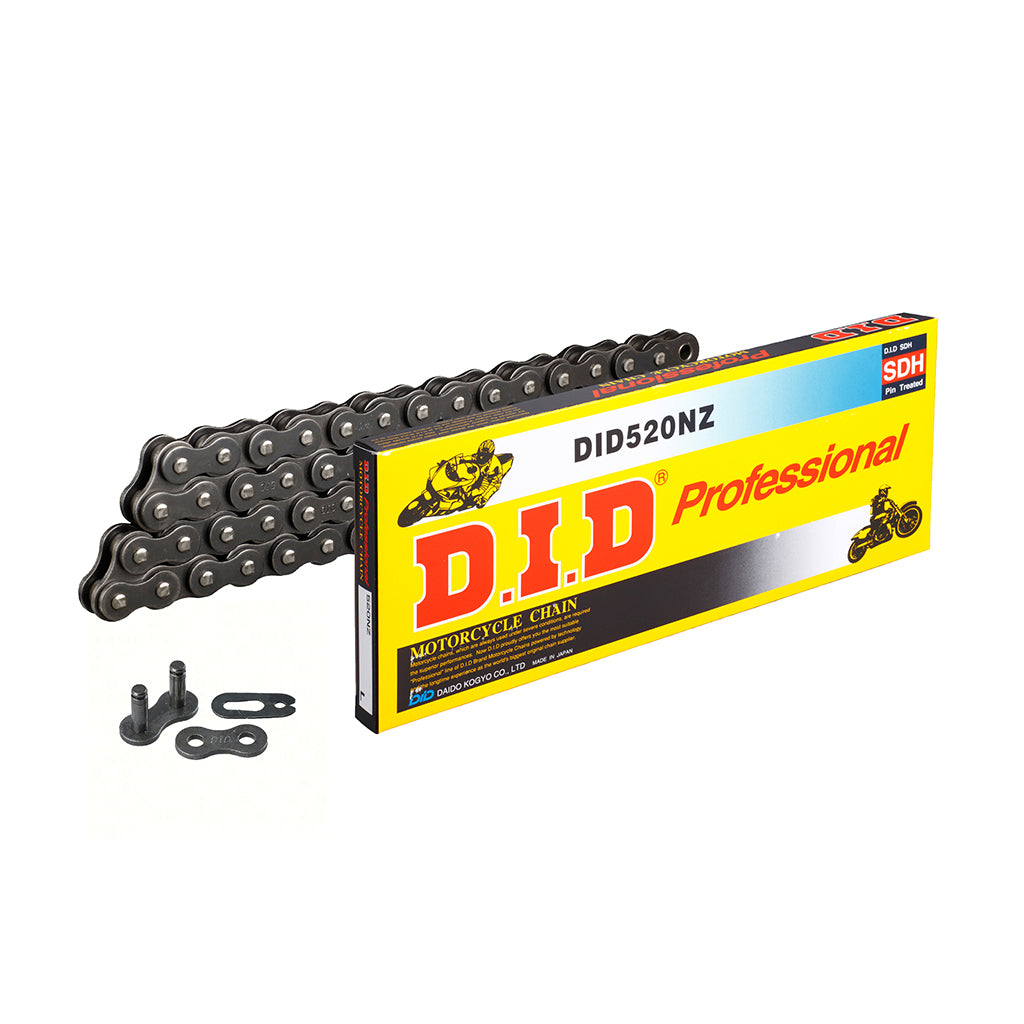

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical specifications:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-28368

Fits

KTM 126 - 250 cc EXC 250 TPI Six Days 2T 2021
