DID chain set for KTM EXC 300 06-11 520 ERT3 chain kit

DID chain set for KTM EXC 300 06-11 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are only mentioned for the representation of compatibility!

Components of the chain kit KTM EXC 300 2T 2006-2011

• Front sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 ERT3 G&G 116 with clip connecting link - d520ert3-116

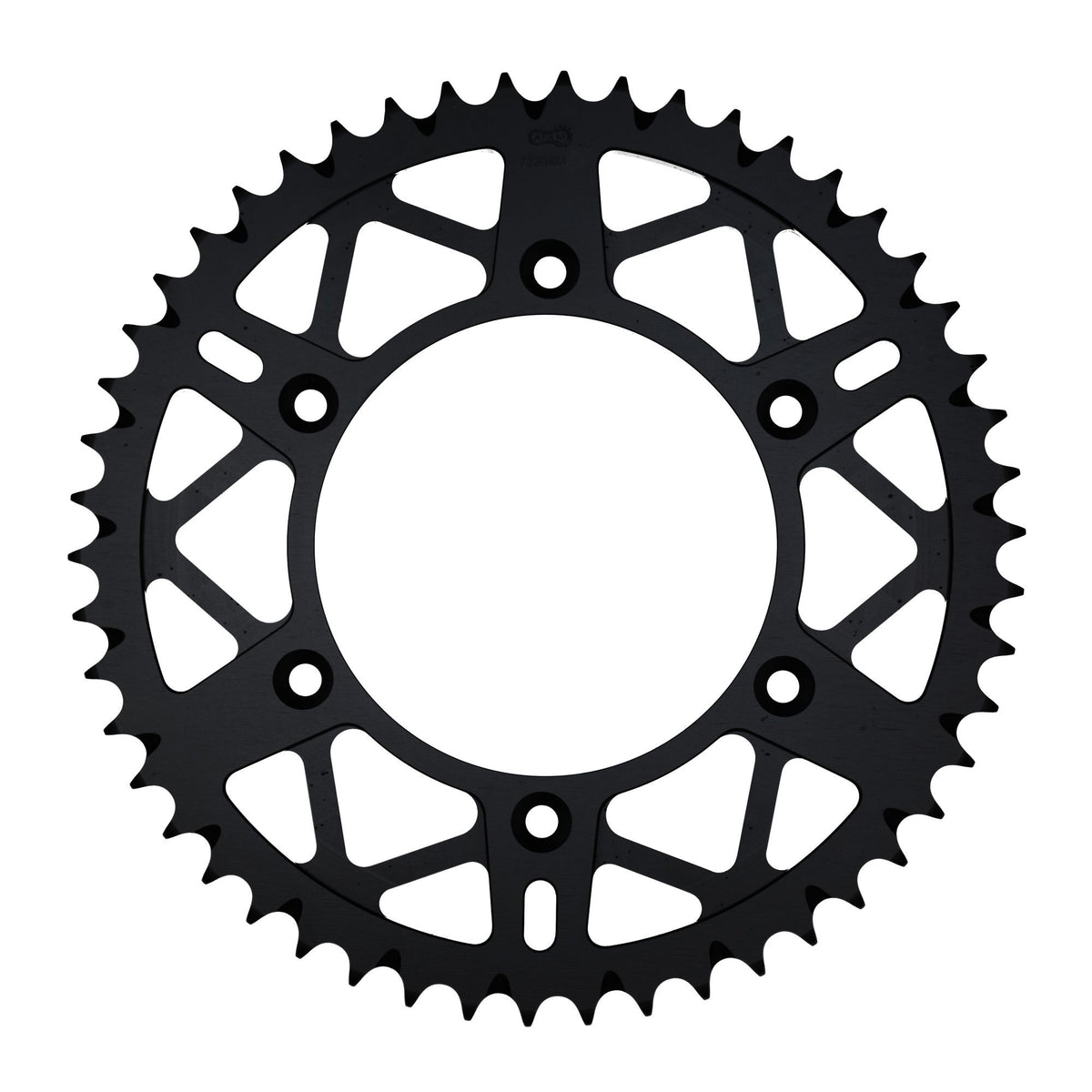

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio front sprocket-chain-rear sprocket: 13-116-50

DID 520 ERT3

Extra reinforced pure moto-cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / moto-cross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless stated otherwise: The offered goods are accessories/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-25955

Fits

KTM 251 - 500 cc EXC 300 2T 2006
KTM 251 - 500 cc EXC 300 2T 2007
KTM 251 - 500 cc EXC 300 2T 2008
KTM 251 - 500 cc EXC 300 2T 2009
KTM 251 - 500 cc EXC 300 2T 2010
KTM 251 - 500 cc EXC 300 2T 2011
