DID chain kit for KTM EXC 300 99-17 520 ERT3 chain set

DID Chain Kit for KTM EXC 300 99-17 520 ERT3 Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM EXC 300 2T 1999-2017

• Front sprocket: AFAM front sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 ERT3 G&G 118 with clip link - d520ert3-118

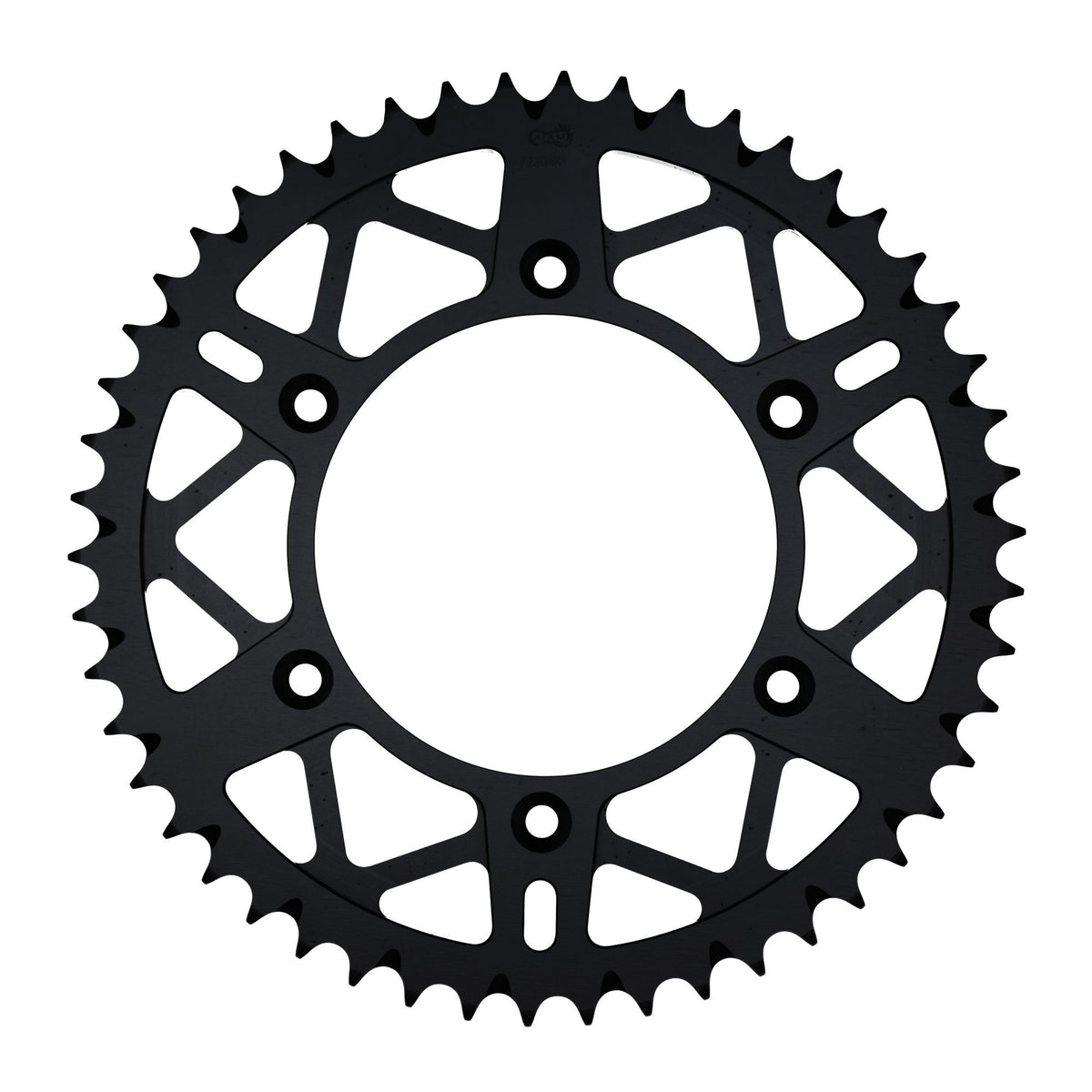

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio front sprocket-chain-rear sprocket: 14-118-50

DID 520 ERT3

Extra reinforced pure motocross chain
Without seal rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-25031

Suitable for

KTM 251 - 500 cc EXC 300 2T 1999
KTM 251 - 500 cc EXC 300 2T 2000
KTM 251 - 500 cc EXC 300 2T 2001
KTM 251 - 500 cc EXC 300 2T 2002
KTM 251 - 500 cc EXC 300 2T 2003
KTM 251 - 500 cc EXC 300 2T 2004
KTM 251 - 500 cc EXC 300 2T 2005
KTM 251 - 500 cc EXC 300 2T 2006
KTM 251 - 500 cc EXC 300 2T 2007
KTM 251 - 500 cc EXC 300 2T 2008
KTM 251 - 500 cc EXC 300 2T 2009
KTM 251 - 500 cc EXC 300 2T 2010
KTM 251 - 500 cc EXC 300 2T 2011
KTM 251 - 500 cc EXC 300 2T 2012
KTM 251 - 500 cc EXC 300 2T 2013
KTM 251 - 500 cc EXC 300 2T 2014
KTM 251 - 500 cc EXC 300 2T 2015
KTM 251 - 500 cc EXC 300 2T 2016
KTM 251 - 500 cc EXC 300 2T 2017
