DID chain set for KTM EXC 300 Six Days 12-17 520 ZVMX chain kit

DID chain kit for KTM EXC 300 Six Days 12-17 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only for the purpose of indicating compatibility!

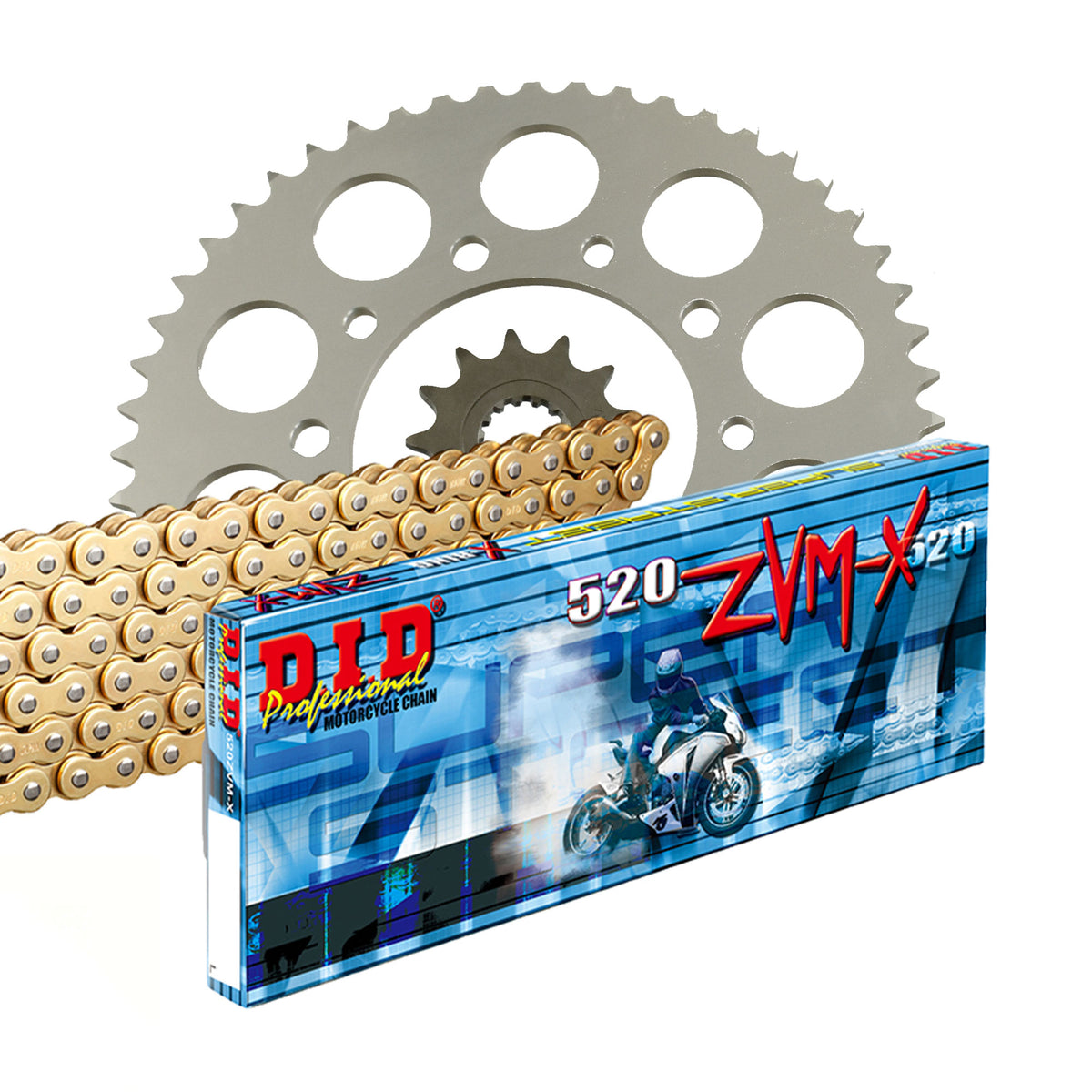

Components of the chain kit KTM EXC 300 Six Days 2T 2012-2017

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118

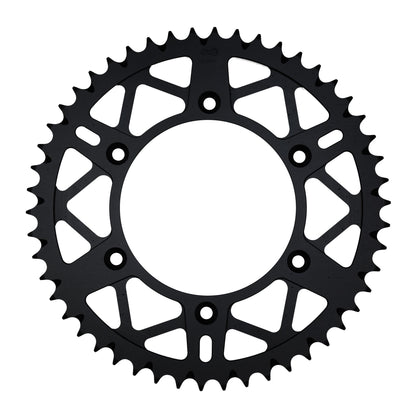

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 50T - a72304PK.50
• Gear ratio sprocket-chain-rear sprocket: 14-118-50

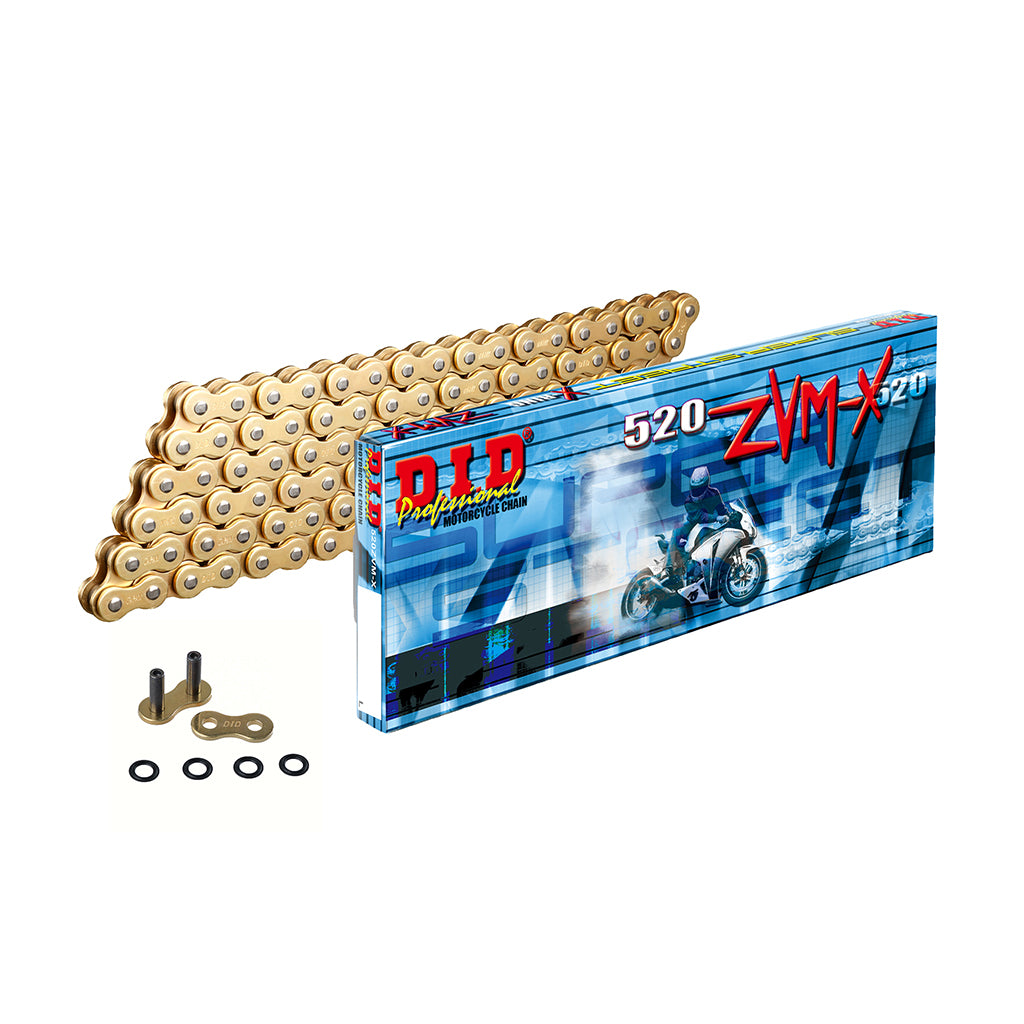

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Mileage index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the permission of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-28715

Suitable for

KTM 251 - 500 cc EXC 300 Six Days 2T 2012
KTM 251 - 500 cc EXC 300 Six Days 2T 2013
KTM 251 - 500 cc EXC 300 Six Days 2T 2014
KTM 251 - 500 cc EXC 300 Six Days 2T 2015
KTM 251 - 500 cc EXC 300 Six Days 2T 2016
KTM 251 - 500 cc EXC 300 Six Days 2T 2017
