DID chain kit for KTM EXC 300 TPI Six Days 18-20 520 NZ chain kit

DID chain kit for KTM EXC 300 TPI Six Days 18-20 520 NZ chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

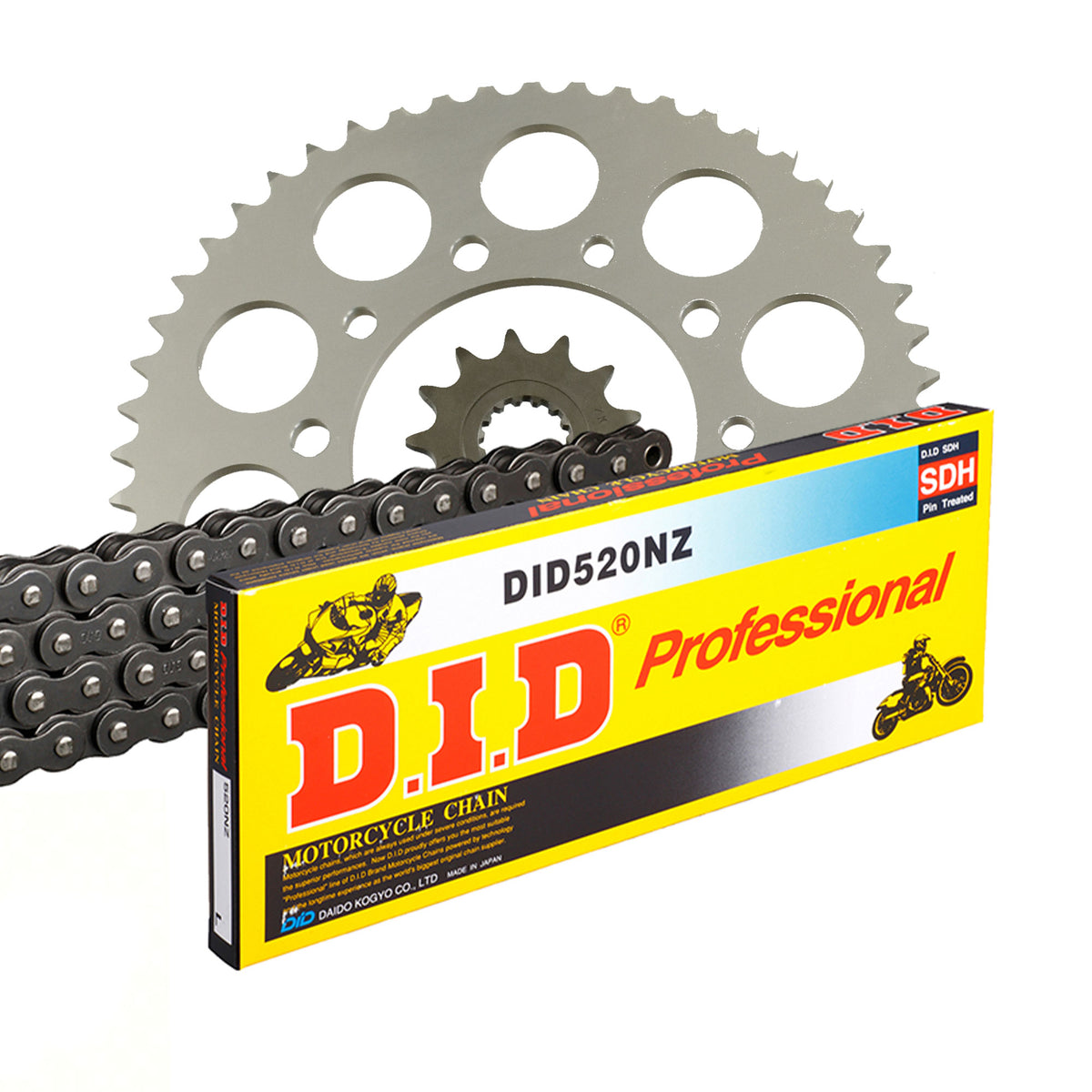

Components of the chain kit KTM EXC 300 TPI Six Days 2T 2018-2020

• Front sprocket: AFAM front sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 NZ 118 with clip link - d6252001118
• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a72304n.50
• Gear ratio front sprocket-chain-rear sprocket: 14-118-50

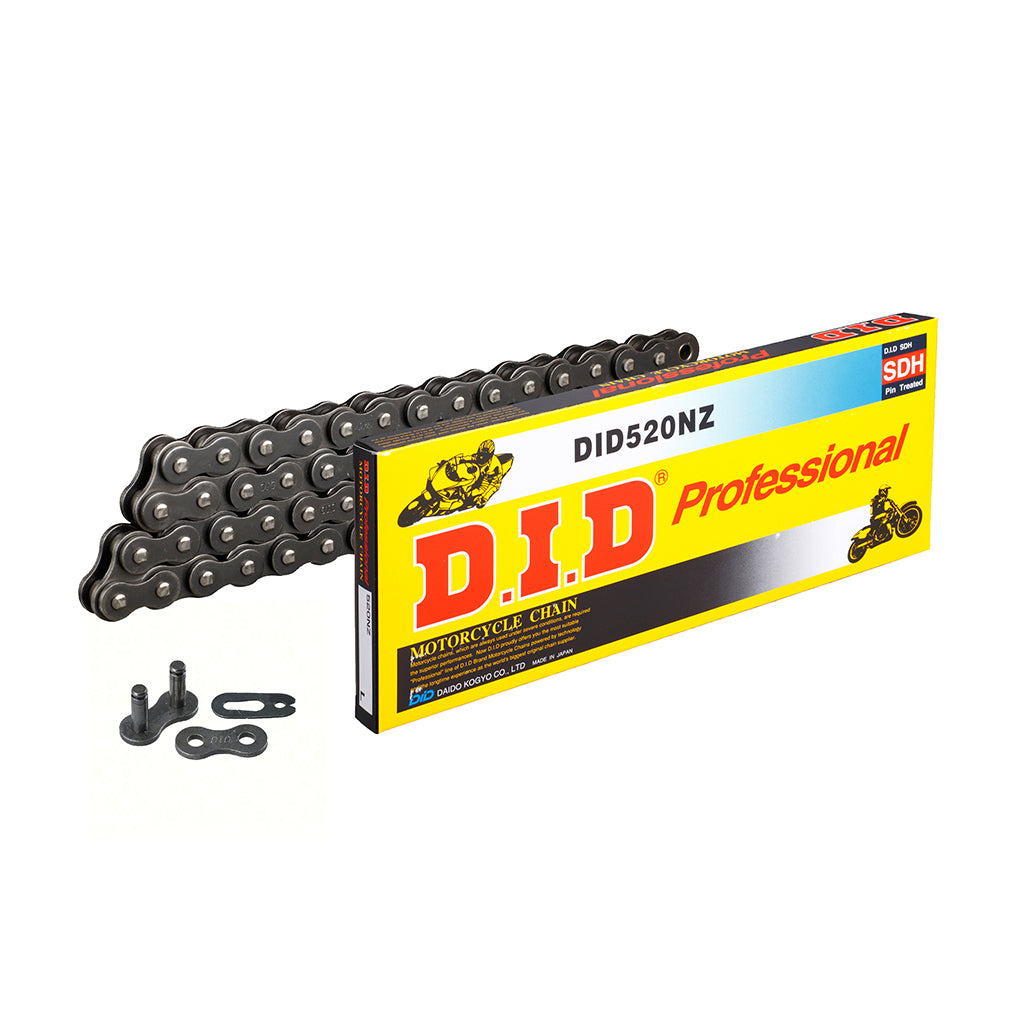

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical specifications:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-25244

Suitable for

KTM 251 - 500 cc EXC 300 TPI Six Days 2T 2018
KTM 251 - 500 cc EXC 300 TPI Six Days 2T 2019
KTM 251 - 500 cc EXC 300 TPI Six Days 2T 2020
