DID chain set for KTM EXC 500 13-16 520 VX3 chain kit

DID chain kit for KTM EXC 500 13-16 520 VX3 chain kit

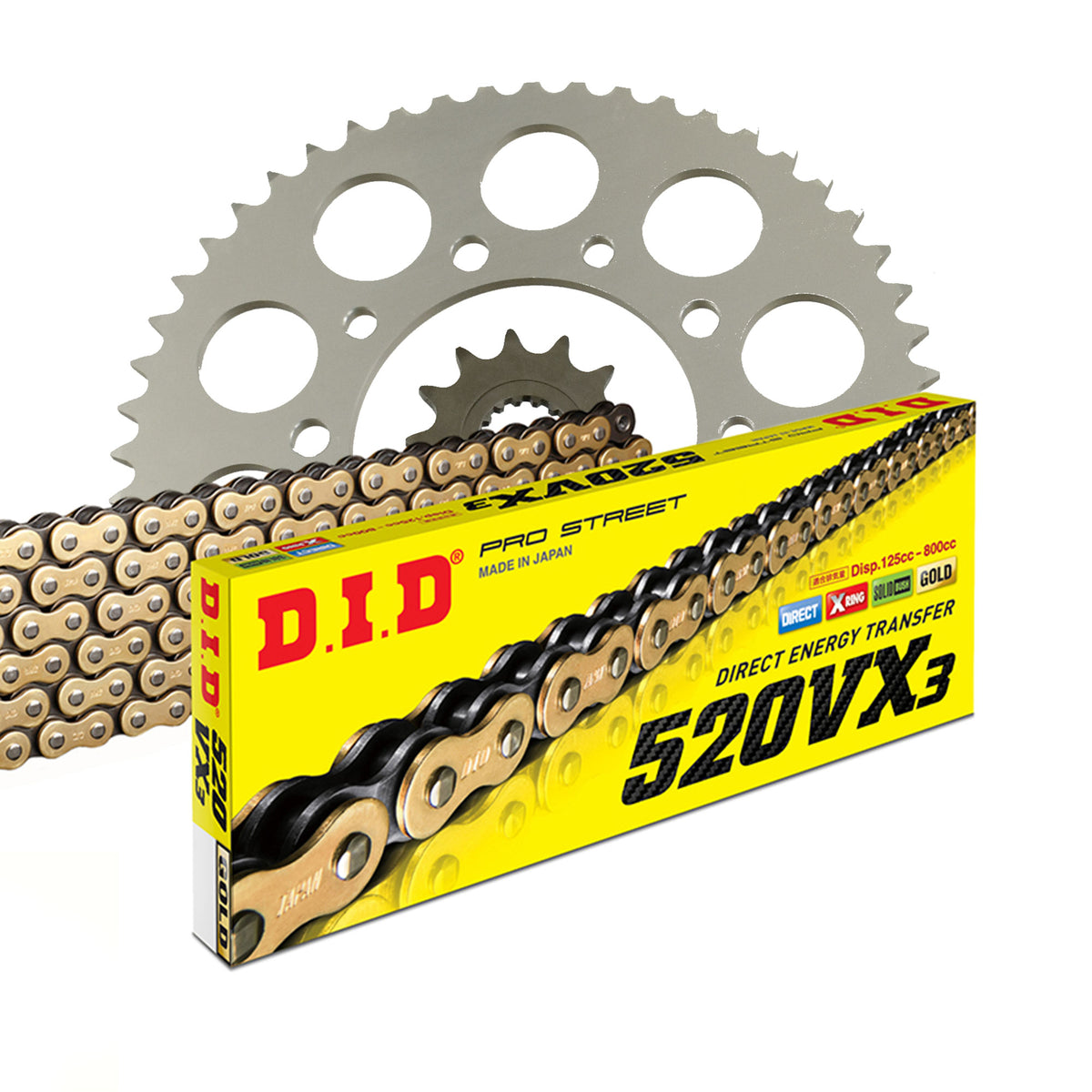

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to illustrate compatibility!

Components of the chain kit KTM EXC 500 4T 2013-2016

• Front sprocket: AFAM front sprocket #520 14 teeth - a73301.14

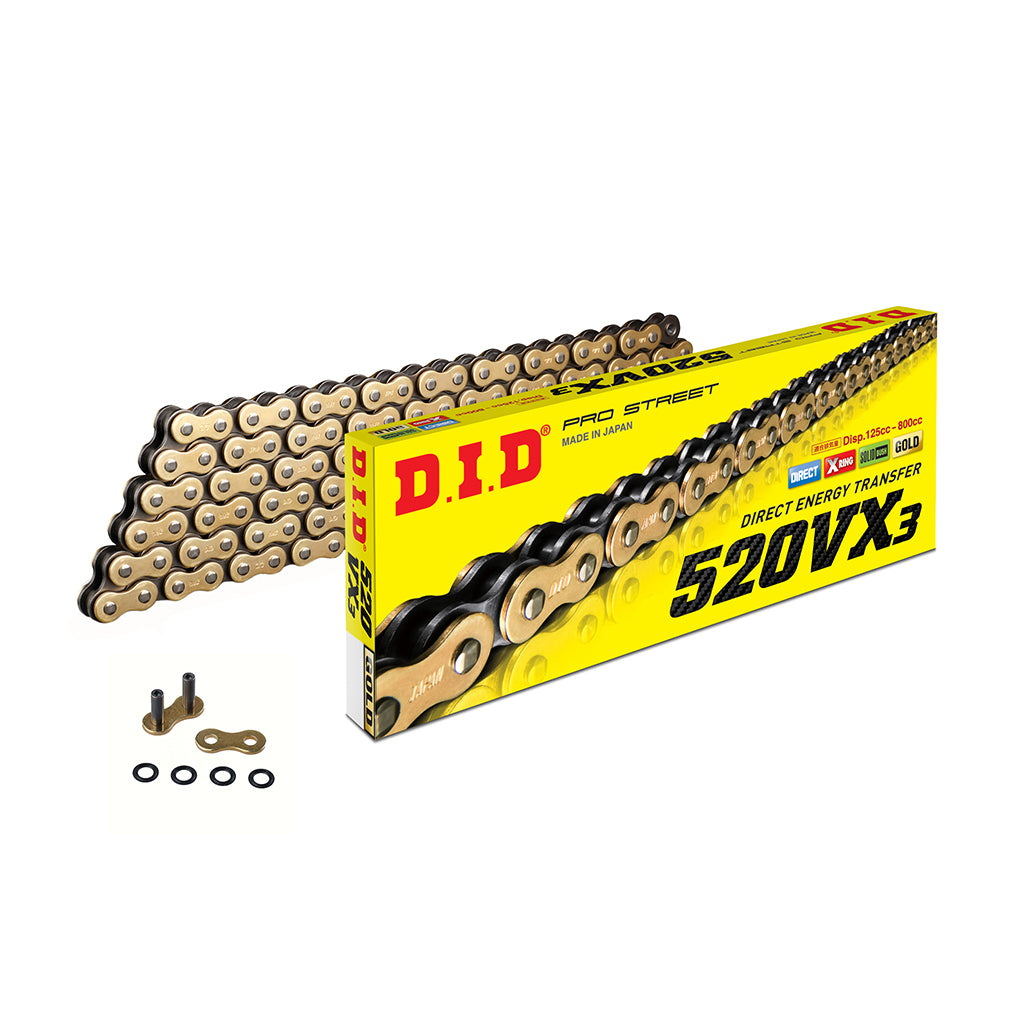

• Chain: DID chain 520 VX3 G&B 116 with rivet master link - d520vx3-116

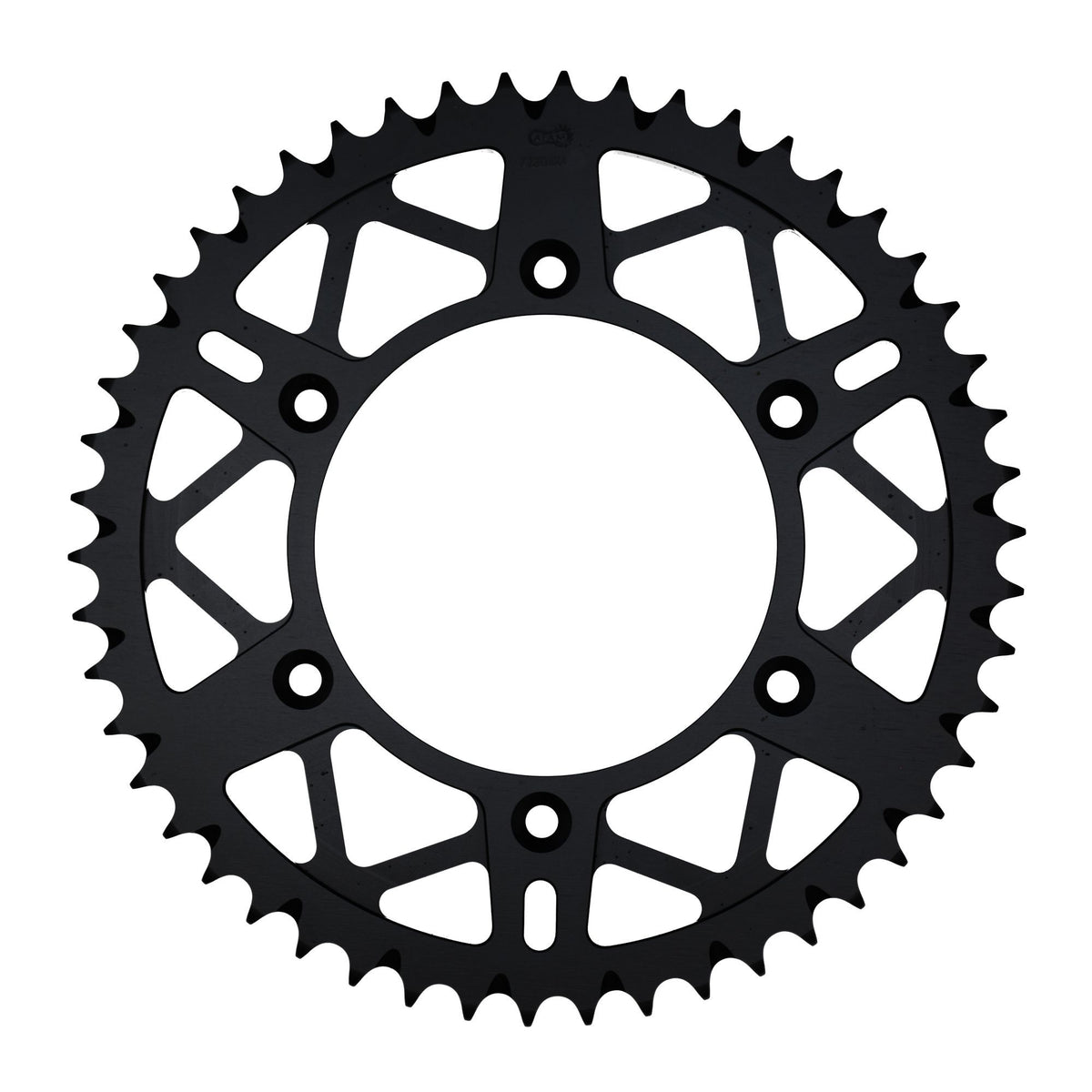

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio front sprocket-chain-rear sprocket: 14-116-50

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-27569

Suitable for

KTM 501 - 750 cc EXC 500 4T 2013
KTM 501 - 750 cc EXC 500 4T 2014
KTM 501 - 750 cc EXC 500 4T 2015
KTM 501 - 750 cc EXC 500 4T 2016
