DID chain set for KTM EXC 520 Racing 2000 520 ERT3 chain kit

DID chain kit for KTM EXC 520 Racing 2000 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit KTM EXC 520 Racing 4T 2000-2000

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 ERT3 G&G 114 with clip link - d520ert3-114

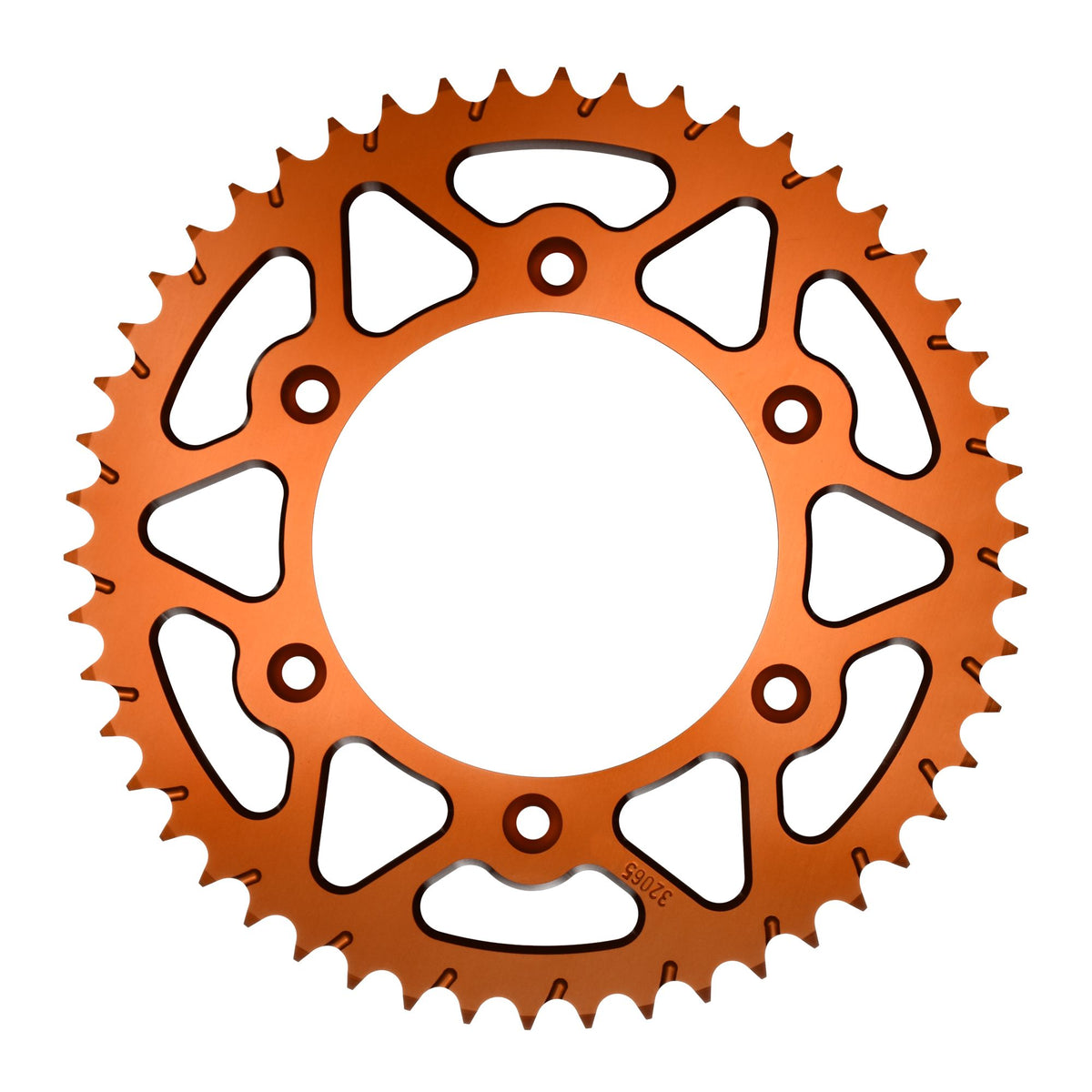

• Rear sprocket: Esjot rear sprocket 72304-50 ALU #520 50 teeth orange - a72304o.50
• Gear ratio sprocket-chain-rear sprocket: 14-114-50

DID 520 ERT3

Extra reinforced pure motocross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-26373

Suitable for

KTM 501 - 750 cc EXC 520 Racing 4T 2000
