DID chain set for KTM EXC 525 Racing 03-07 520 NZ chain kit

DID chain kit for KTM EXC 525 Racing 03-07 520 NZ chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

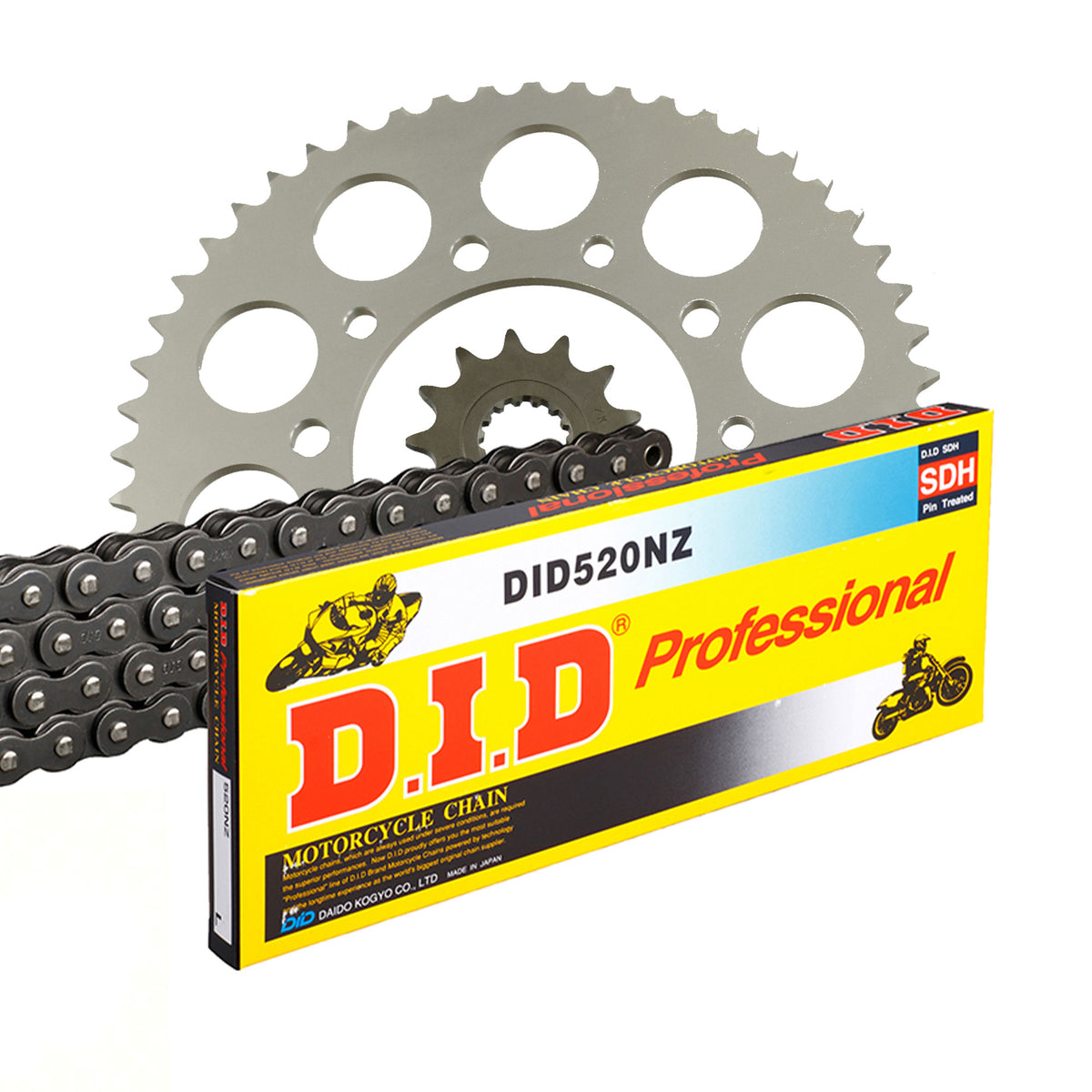

Components of the chain kit KTM EXC 525 Racing 4T 2003-2007

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 NZ 114 with clip connecting link - d6252001114
• Rear sprocket: AFAM rear sprocket ALU #520 48 teeth - a72304n.48
• Gear ratio sprocket-chain-rear sprocket: 14-114-48

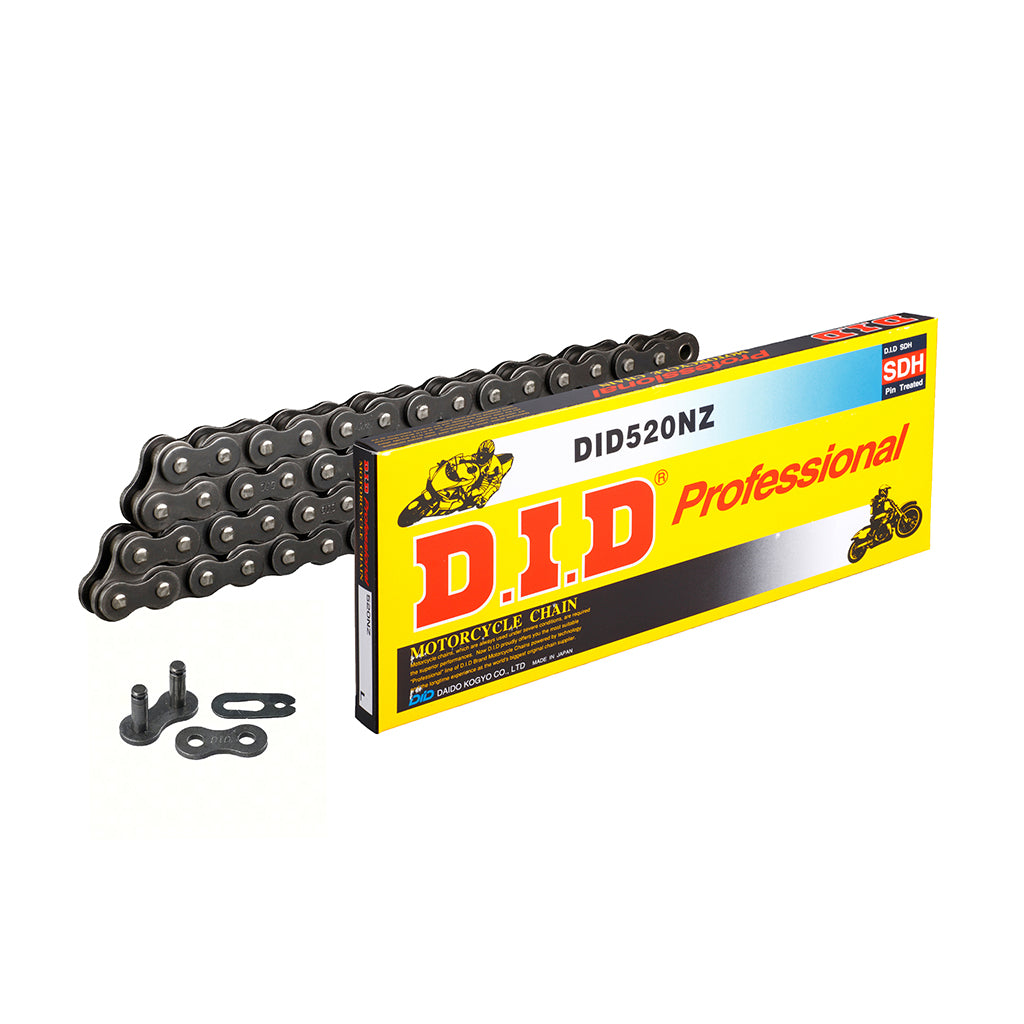

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-27783

Suitable for

KTM 501 - 750 cc EXC 525 Racing 4T 2003
KTM 501 - 750 cc EXC 525 Racing 4T 2004
KTM 501 - 750 cc EXC 525 Racing 4T 2005
KTM 501 - 750 cc EXC 525 Racing 4T 2006
KTM 501 - 750 cc EXC 525 Racing 4T 2007
