DID chain kit for KTM Freeride E 12-14 520 ERT3 chain kit

DID chain kit for KTM Freeride E 12-14 520 ERT3 chain set

Chain set or chain kit for the specified model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit KTM Freeride E Electric 2012-2014

• Front sprocket: AFAM front sprocket #520 11 teeth - a73301.11
• Chain: DID chain 520 ERT3 G&G 118 with clip connecting link - d520ert3-118

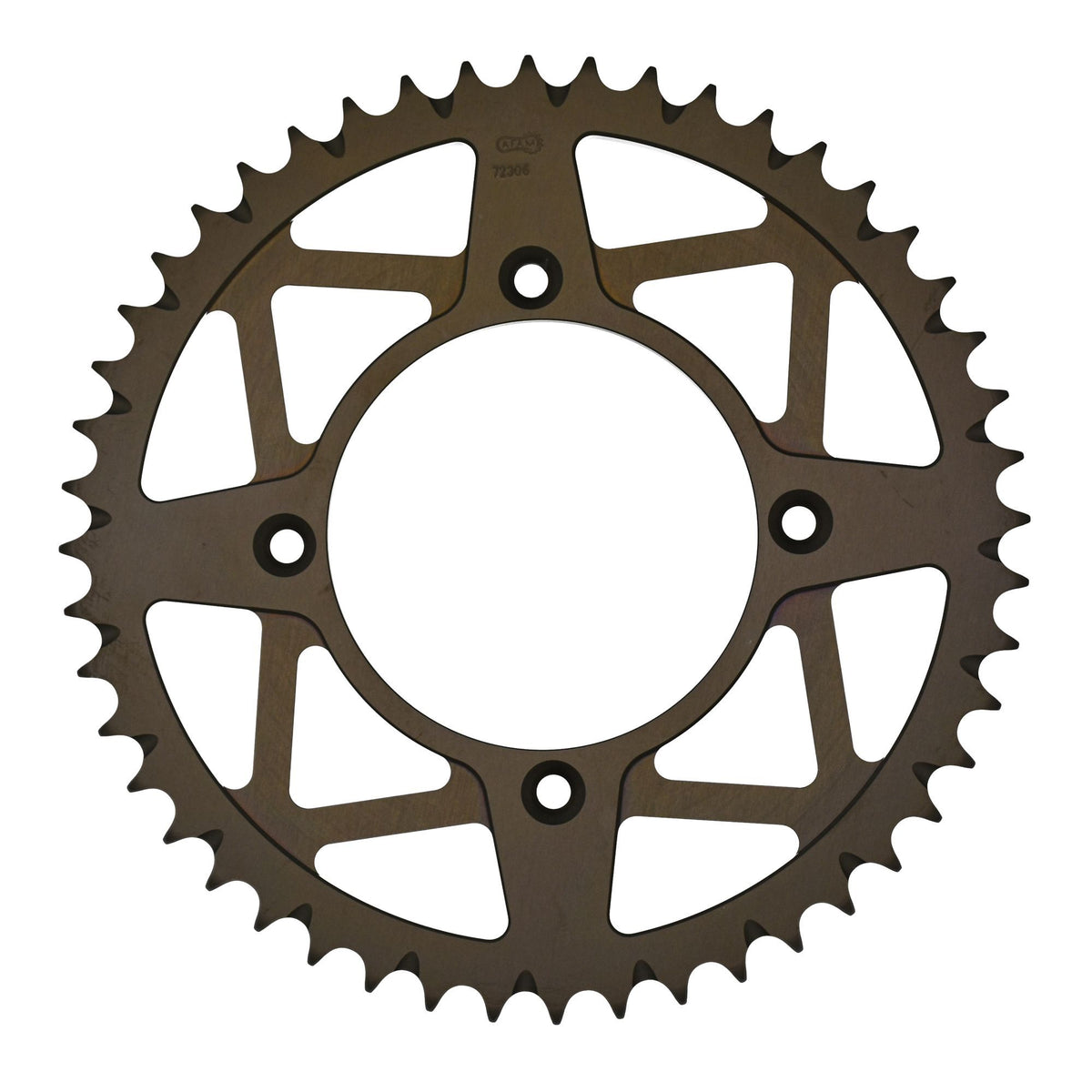

• Rear sprocket: AFAM rear sprocket 32243-48 ALU #520 S/C 48 teeth - a72306.48
• Gear ratio front sprocket-chain-rear sprocket: 11-118-48

DID 520 ERT3

Extra reinforced pure motocross chain
Without O-rings
Color: Gold/Gold
Application by engine displacement: up to 450 cc / motocross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for compatibility purposes.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-78792

Fits

KTM electric Freeride E Electric 2012
KTM electric Freeride E Electric 2013
KTM electric Freeride E Electric 2014
