DID chain set for KTM Freeride E 12-14 520 ZVMX chain kit

DID chain kit for KTM Freeride E 12-14 520 ZVMX chain kit

Chain kit or chain set for assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM Freeride E Electric 2012-2014

• Front sprocket: AFAM front sprocket #520 11 teeth - a73301.11
• Chain: DID chain 520 ZVM-X G&G 118 with rivet link - d6252029118

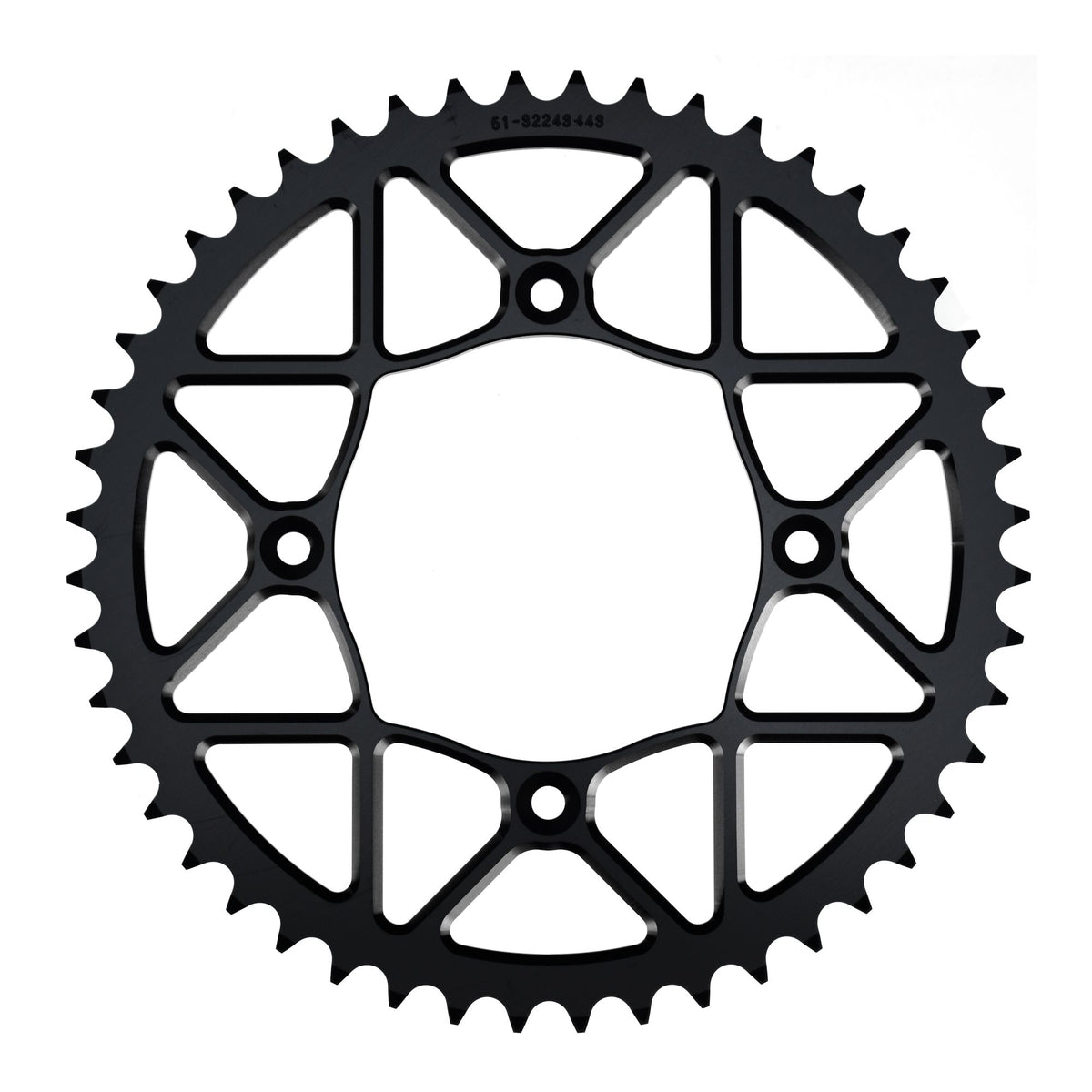

• Rear sprocket: Esjot rear sprocket 72306-48 ALU #520 48 teeth - e5132243.48
• Gear ratio sprocket-chain-rear sprocket: 11-118-48

DID 520 ZVM-X

Extra reinforced chain, versatile application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-78800

Suitable for

KTM electric Freeride E Electric 2012
KTM electric Freeride E Electric 2013
KTM electric Freeride E Electric 2014
