DID chain kit for KTM SX 150 15-17 520 NZ chain set

DID chain kit for KTM SX 150 15-17 520 NZ chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

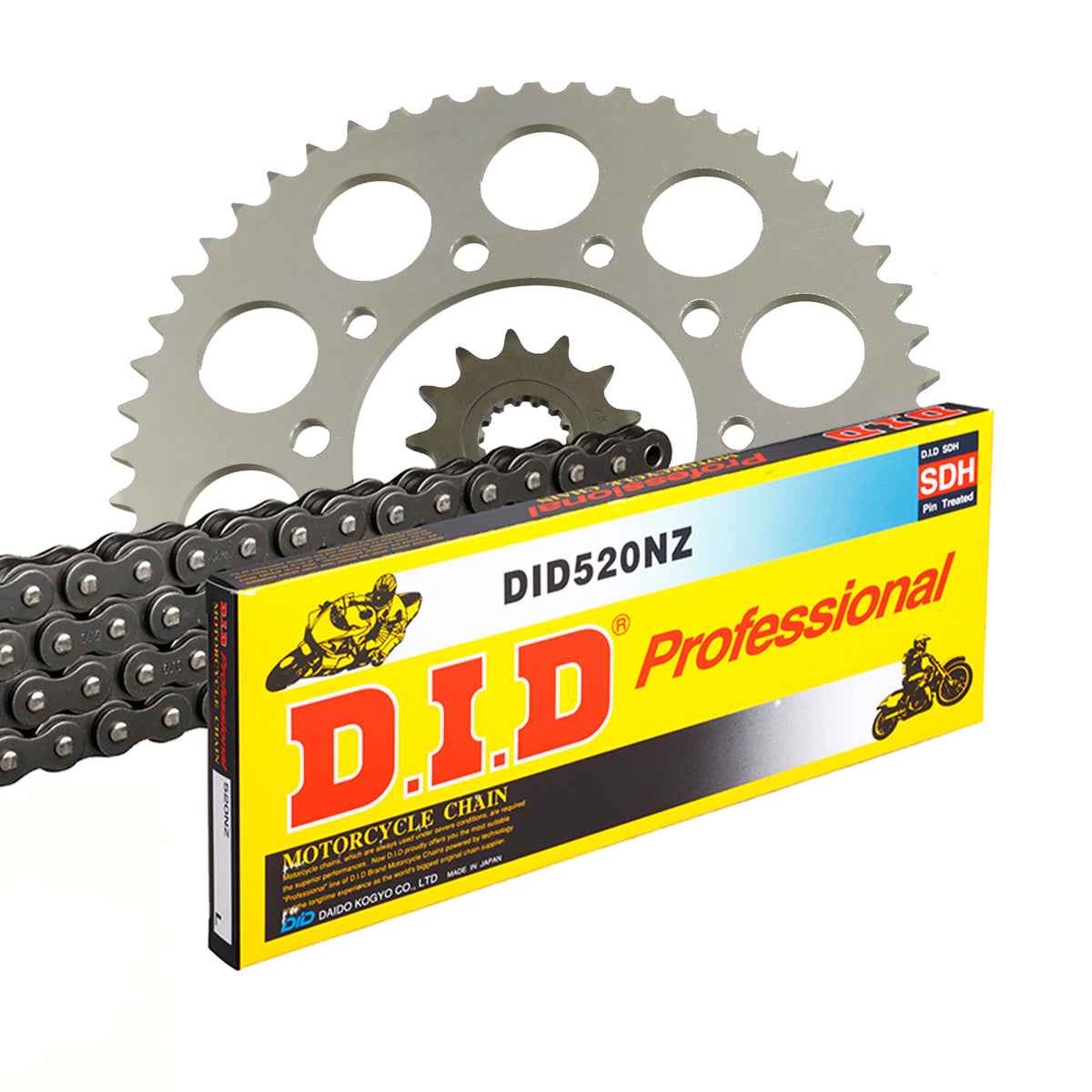

Components of the chain kit KTM SX 150 2T 2015-2017

• Sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 NZ 120 with clip connecting link - d6252001120
• Rear sprocket: AFAM rear sprocket STEEL #520 48 teeth - a71304.48
• Gear ratio sprocket-chain-rear sprocket: 14-120-48

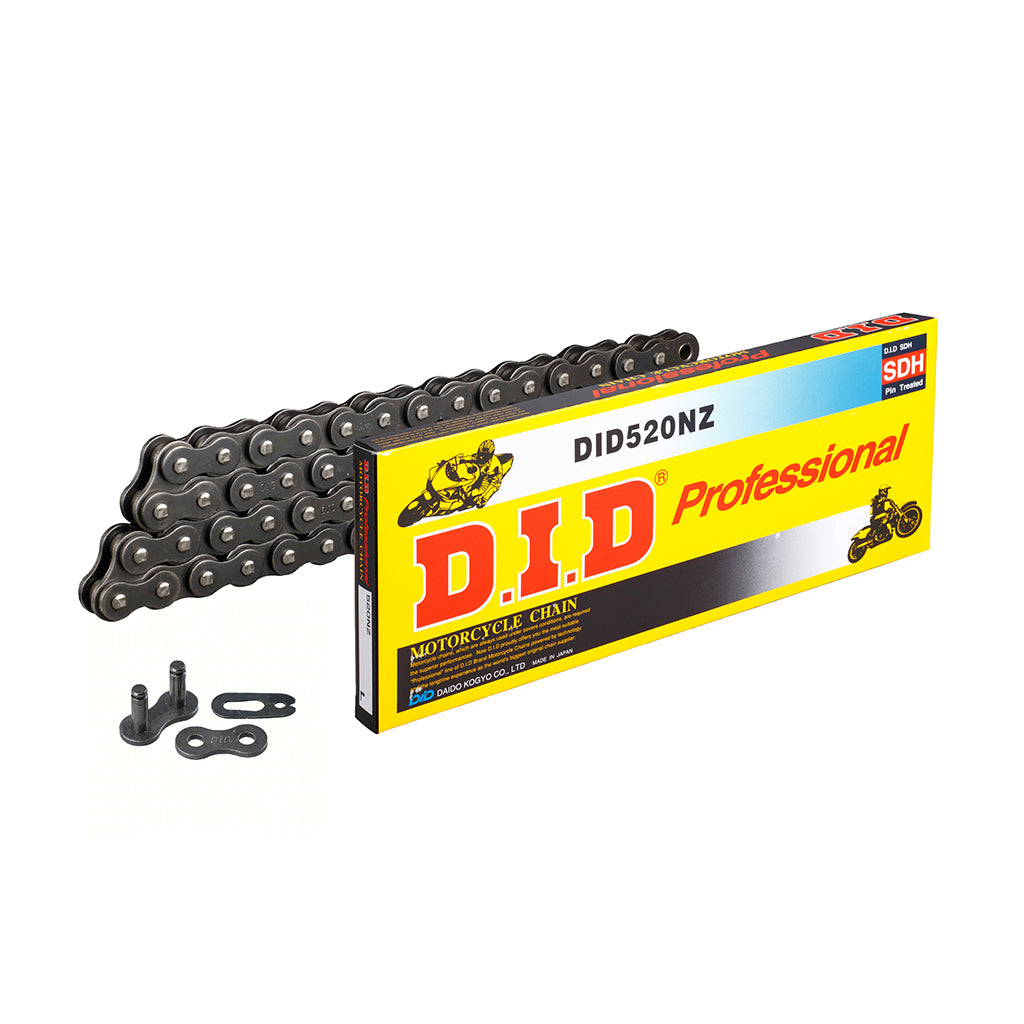

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical specifications:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Mileage index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-18379

Suitable for

KTM 126 - 250 cc SX 150 2T 2015
KTM 126 - 250 cc SX 150 2T 2016
KTM 126 - 250 cc SX 150 2T 2017
