DID chain kit for KTM SX 150 15-17 520 VX3 chain kit

DID Chain Kit for KTM SX 150 15-17 520 VX3 Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

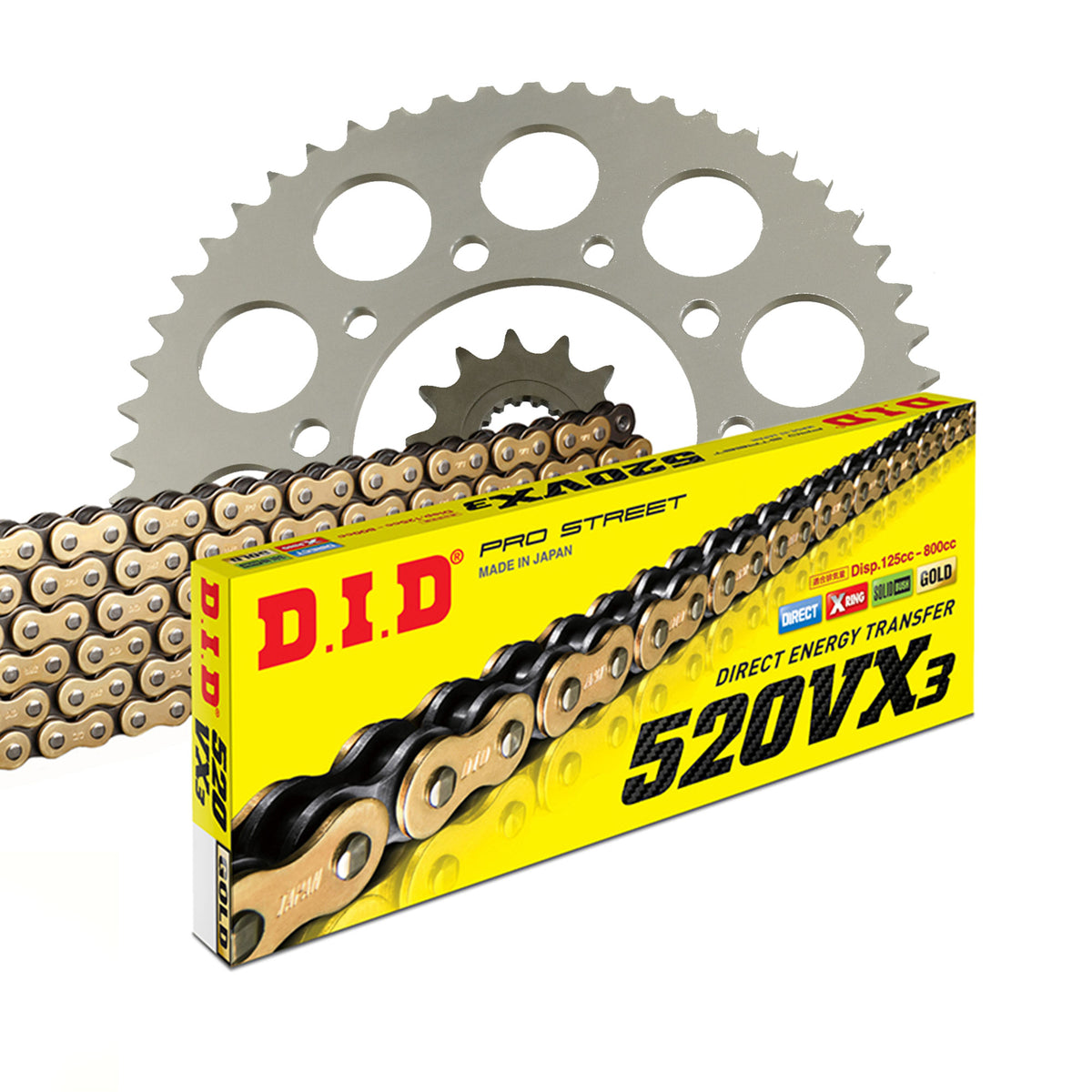

Components of the chain kit KTM SX 150 2T 2015-2017

• Front sprocket: AFAM sprocket #520 14 teeth - a73301.14

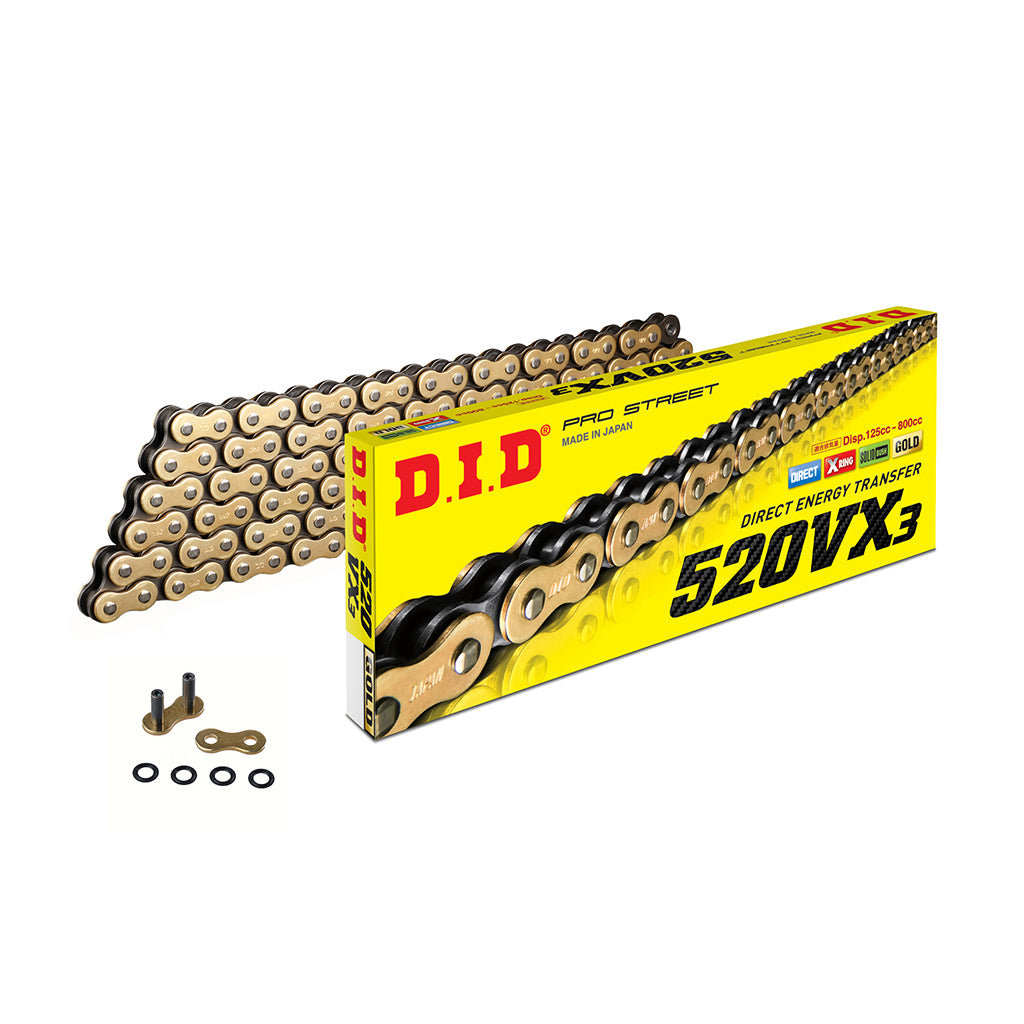

• Chain: DID chain 520 VX3 G&B 120 with rivet link - d520vx3-120

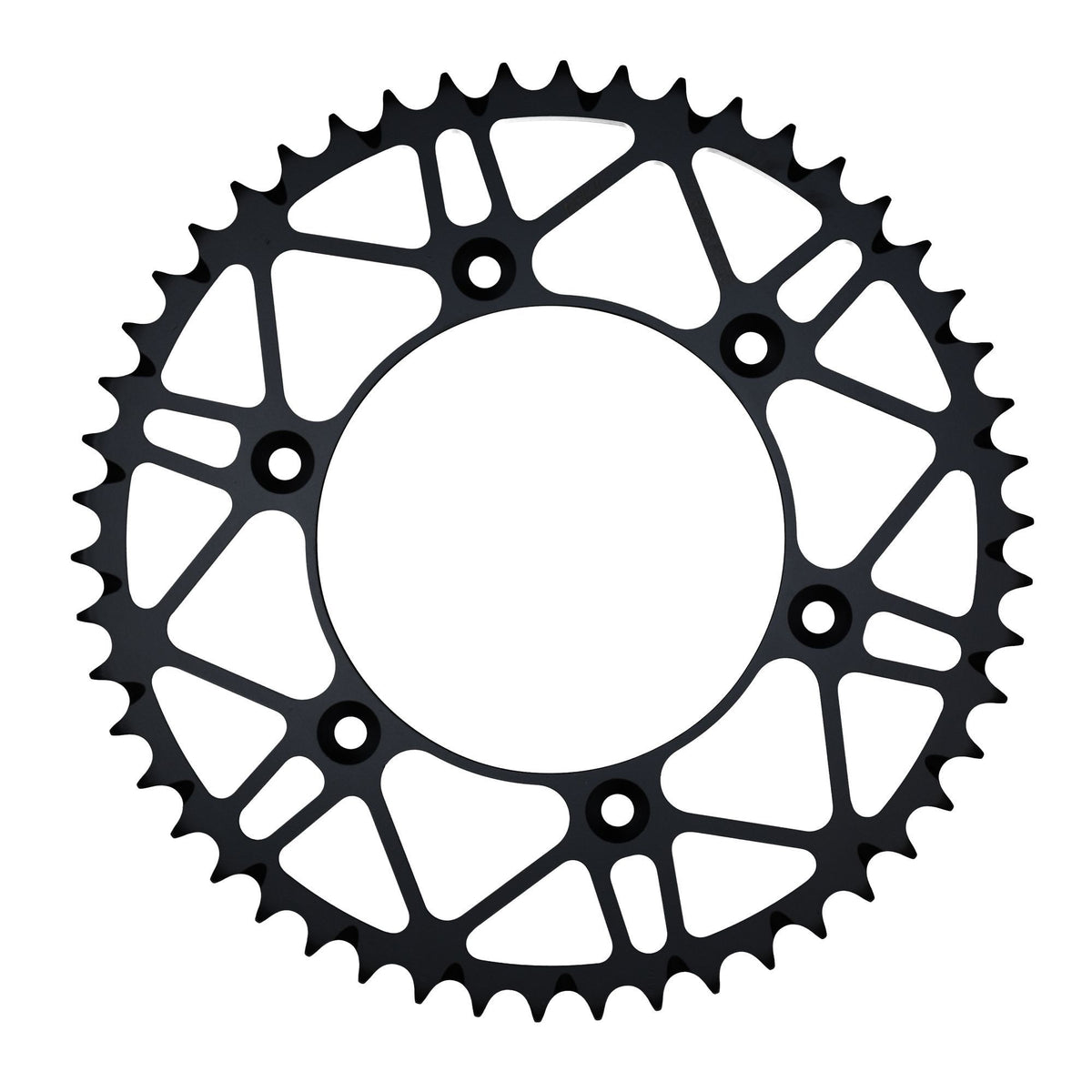

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 48 T - a71304slk.48
• Gear ratio front sprocket-chain-rear sprocket: 14-120-48

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear life index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-25143

Suitable for

KTM 126 - 250 cc SX 150 2T 2015
KTM 126 - 250 cc SX 150 2T 2016
KTM 126 - 250 cc SX 150 2T 2017
