DID chain set for KTM SX 150 18-22 520 ERT3 chain kit

DID Chain Kit for KTM SX 150 18-22 520 ERT3 Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX 150 2T 2018-2022

• Sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 ERT3 G&G 118 with clip link - d520ert3-118

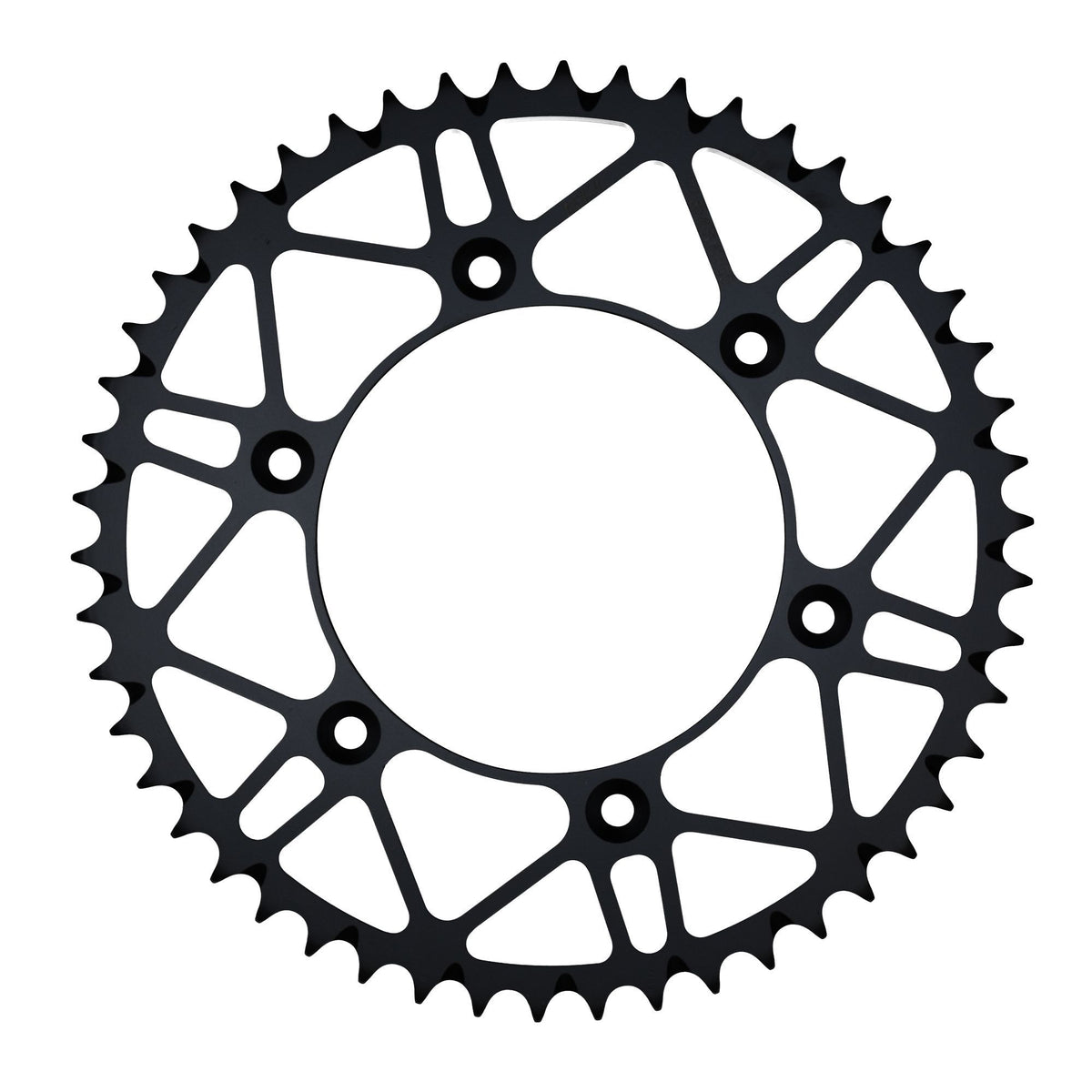

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 48 T - a71304slk.48
• Gear ratio sprocket-chain-rear sprocket: 13-118-48

DID 520 ERT3

Extra reinforced pure motocross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-21131

Suitable for

KTM 126 - 250 cc SX 150 2T 2018
KTM 126 - 250 cc SX 150 2T 2019
KTM 126 - 250 cc SX 150 2T 2020
KTM 126 - 250 cc SX 150 2T 2021
KTM 126 - 250 cc SX 150 2T 2022
