DID chain kit for KTM SX 360 96-97 520 VX3 chain kit

DID Chain kit for KTM SX 360 96-97 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to demonstrate compatibility!

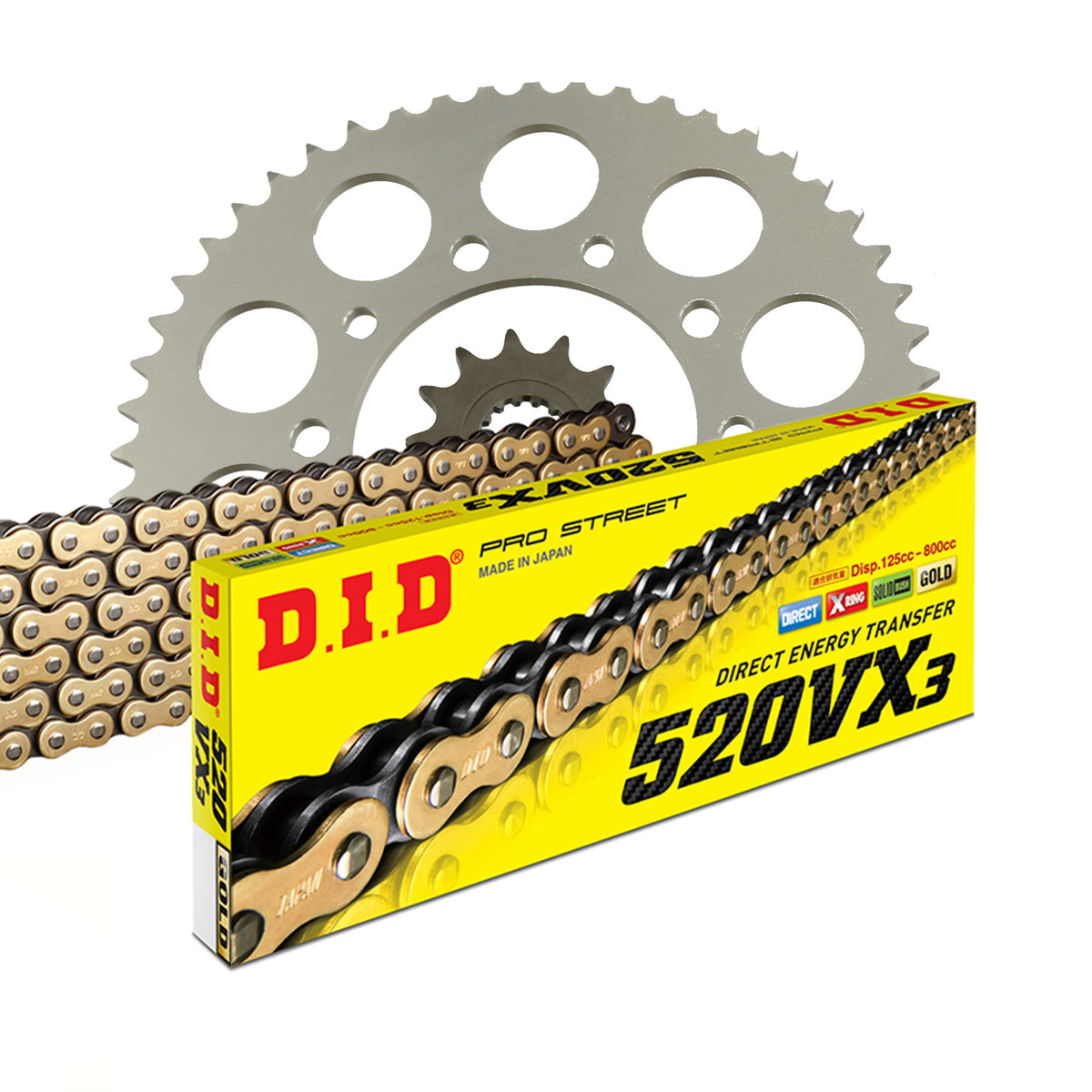

Components of the chain kit KTM SX 360 2T 1996-1997

• Front sprocket: AFAM sprocket #520 13 teeth - a73301.13

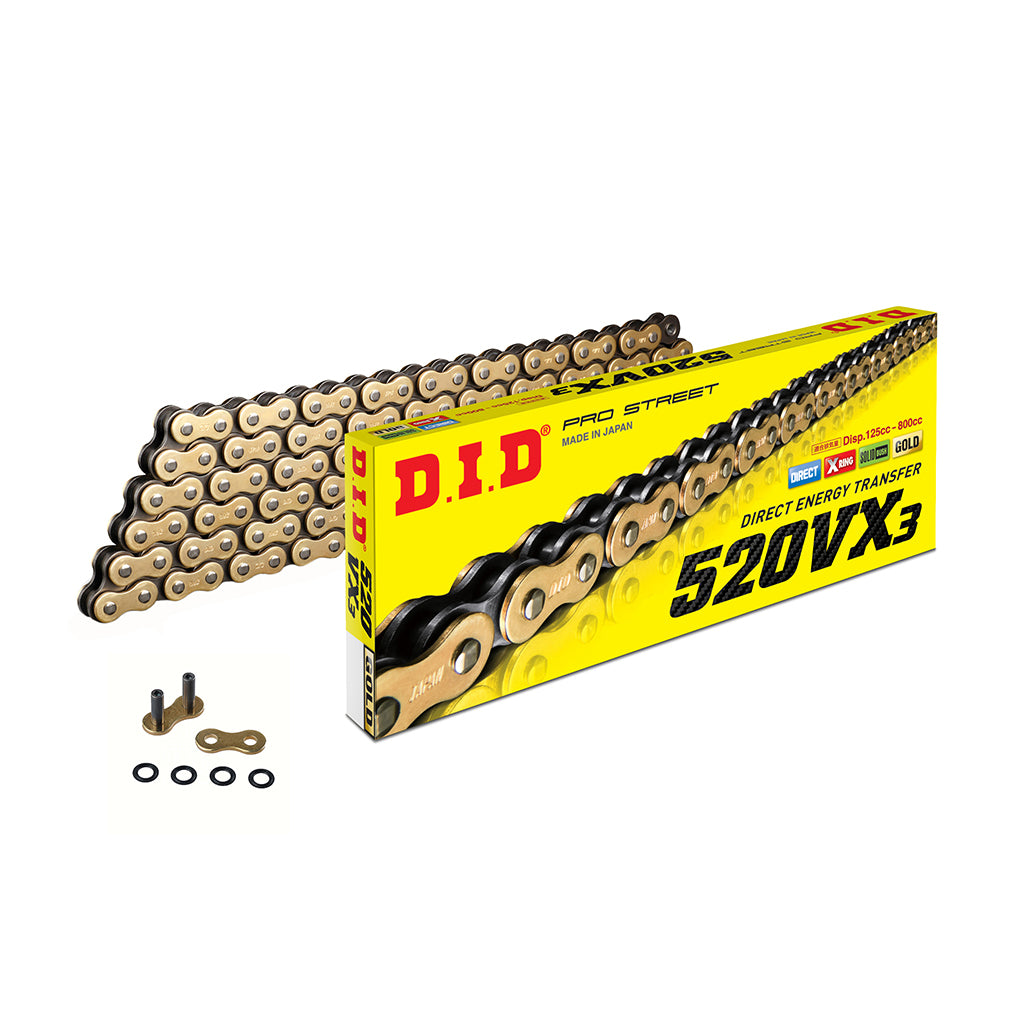

• Chain: DID chain 520 VX3 G&B 114 with rivet link - d520vx3-114

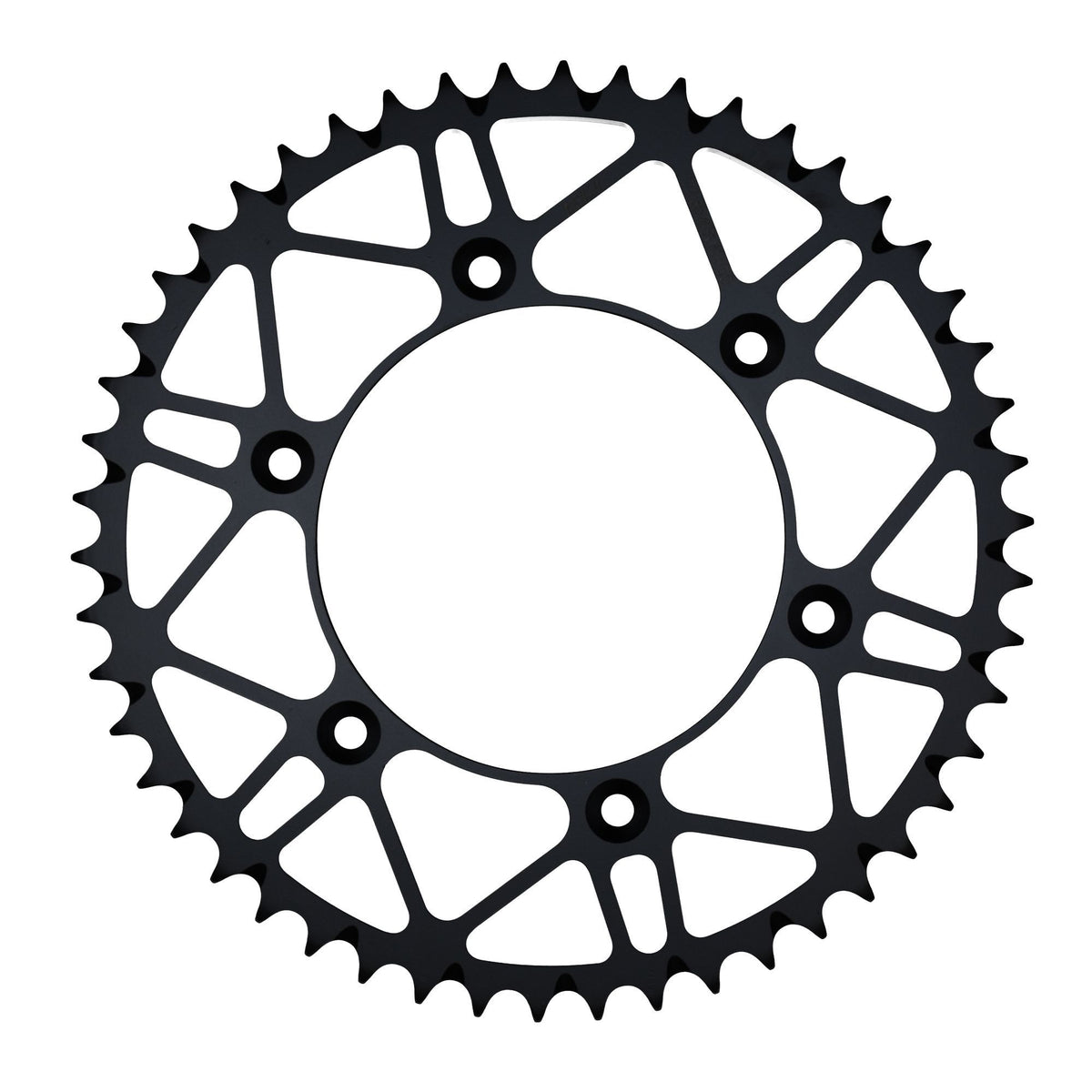

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a71304slk.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

DID 520 VX3

Successor to the proven 520 VX2
X-Ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-16971

Suitable for

KTM 251 - 500 cc SX 360 2T 1996
KTM 251 - 500 cc SX 360 2T 1997
