DID chain kit for KTM SX 620 LC4 94-99 520 VX3 chain kit

DID Chain Kit for KTM SX 620 LC4 94-99 520 VX3 Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit KTM SX 620 LC4 1994-1999

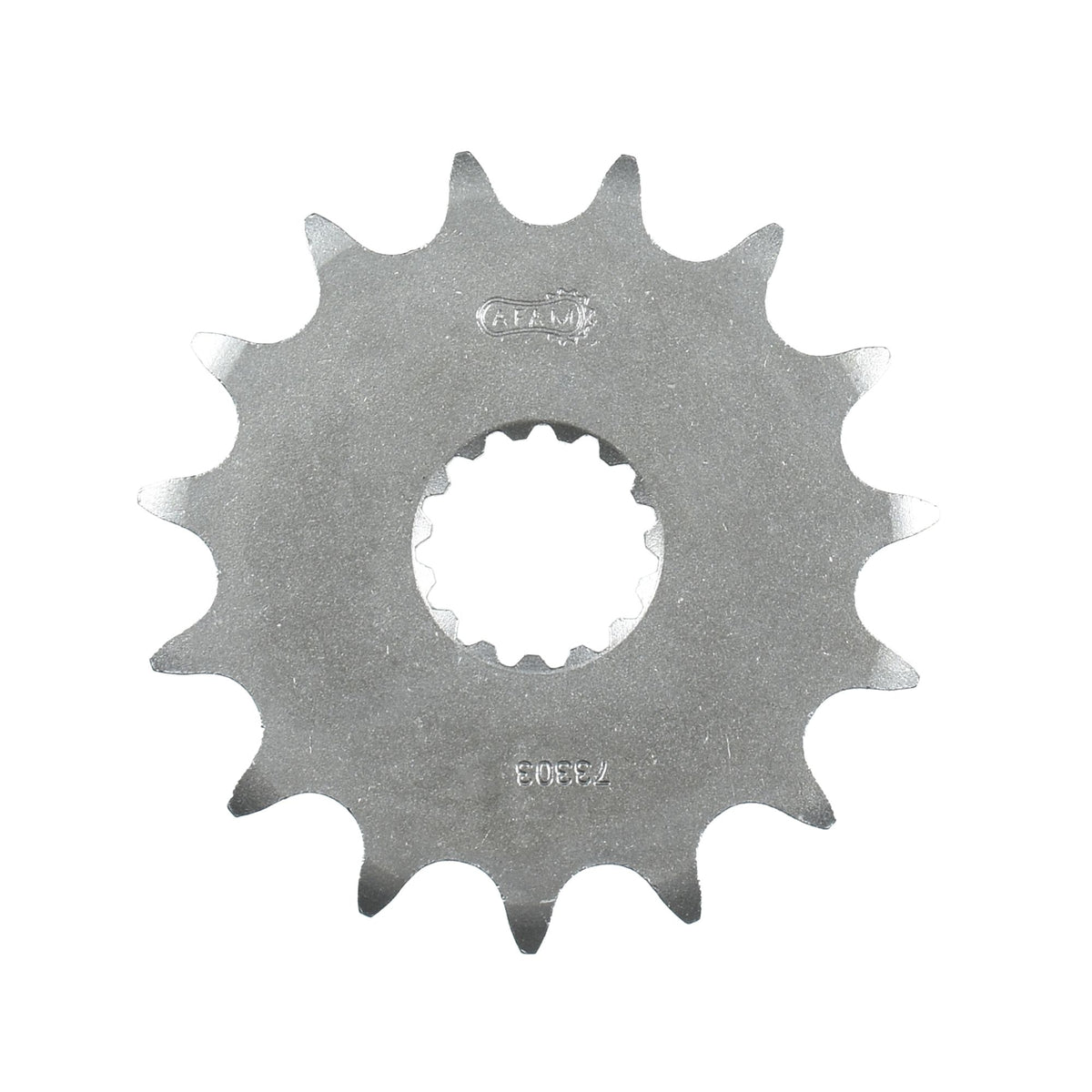

• Front sprocket: AFAM front sprocket #520 15 teeth - a73303.15
• Chain: DID chain 520 VX3 G&B 114 with rivet link - d520vx3-114
• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a71304.50
• Gear ratio front sprocket-chain-rear sprocket: 15-114-50

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-26645

Suitable for

KTM 501 - 750 cc SX 620 LC4 1994
KTM 501 - 750 cc SX 620 LC4 1995
KTM 501 - 750 cc SX 620 LC4 1996
KTM 501 - 750 cc SX 620 LC4 1997
KTM 501 - 750 cc SX 620 LC4 1998
KTM 501 - 750 cc SX 620 LC4 1999
