DID chain set for KTM SX 65 LC 09-11 420 D chain kit

DID Chain Kit for KTM SX 65 LC 09-11 420 D Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM SX 65 LC 2T 2009-2011

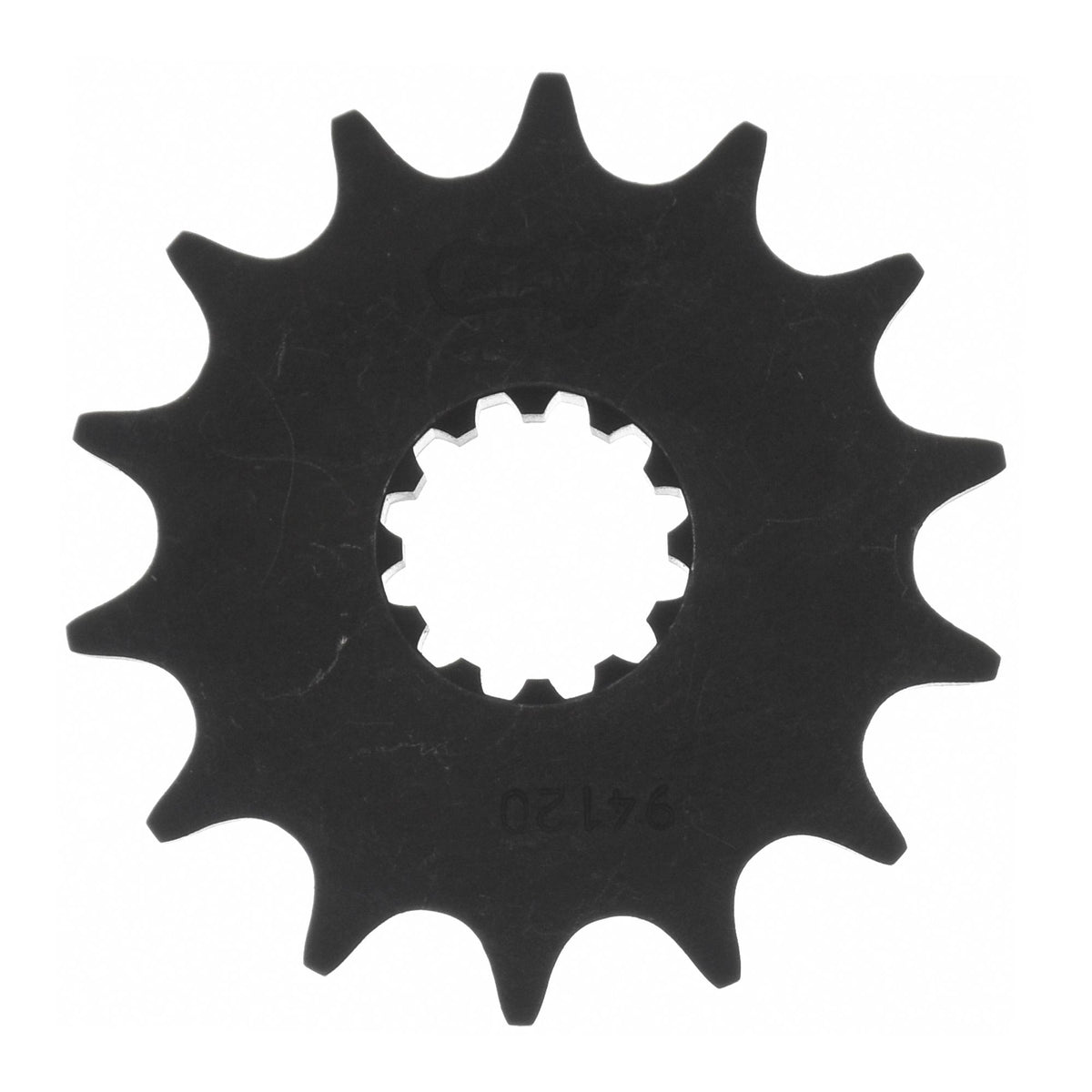

• Front sprocket: AFAM sprocket #420 14 teeth - a94120.14
• Chain: DID chain 420 D 112 with clip master link - d6242000112
• Rear sprocket: AFAM rear sprocket ALU #420 50 teeth - a72101n.50
• Gear ratio sprocket-chain-rear sprocket: 14-112-50

DID 420 D

Affordable and simple standard chain
Without O-rings
Color: Black

Technical data:
Pitch: 420
Pin length: 14.75 mm
Roller Ø: 7.77 mm
Inner plate thickness: 1.5 mm
Outer plate thickness: 1.5 mm
Wear resistance index: 100
Tensile strength: 17.70 kN
Weight per 100 links: 0.74 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-46961

Suitable for

KTM 0 - 100 cc SX 65 LC 2T 2009
KTM 0 - 100 cc SX 65 LC 2T 2010
KTM 0 - 100 cc SX 65 LC 2T 2011
