DID chain kit for KTM SX 65 LC 12-19 420 NZ3 chain kit

DID Chain kit for KTM SX 65 LC 12-19 420 NZ3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless stated otherwise: Not an original part - manufacturer names are mentioned only for compatibility representation!

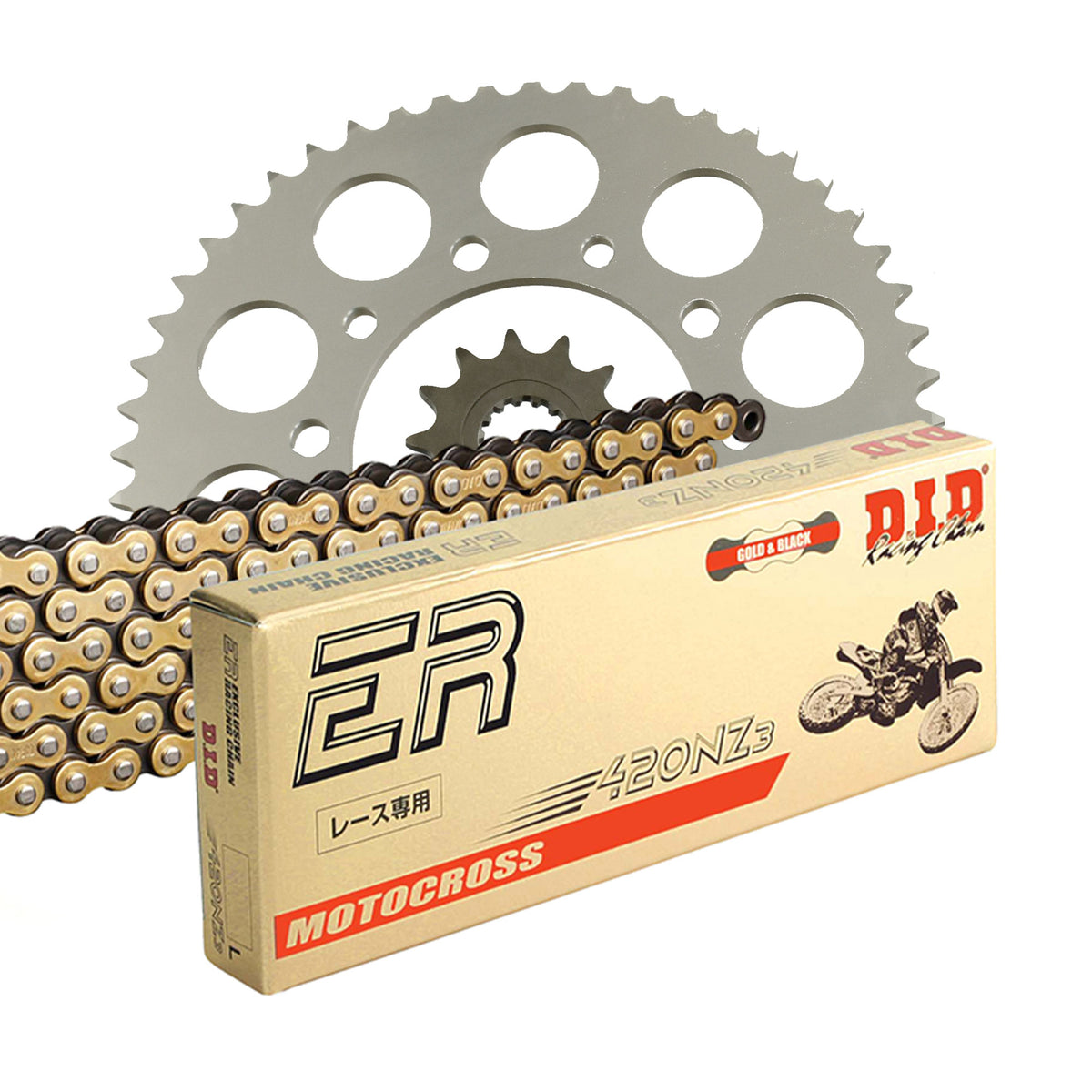

Components of the chain kit KTM SX 65 LC 2T 2012-2019

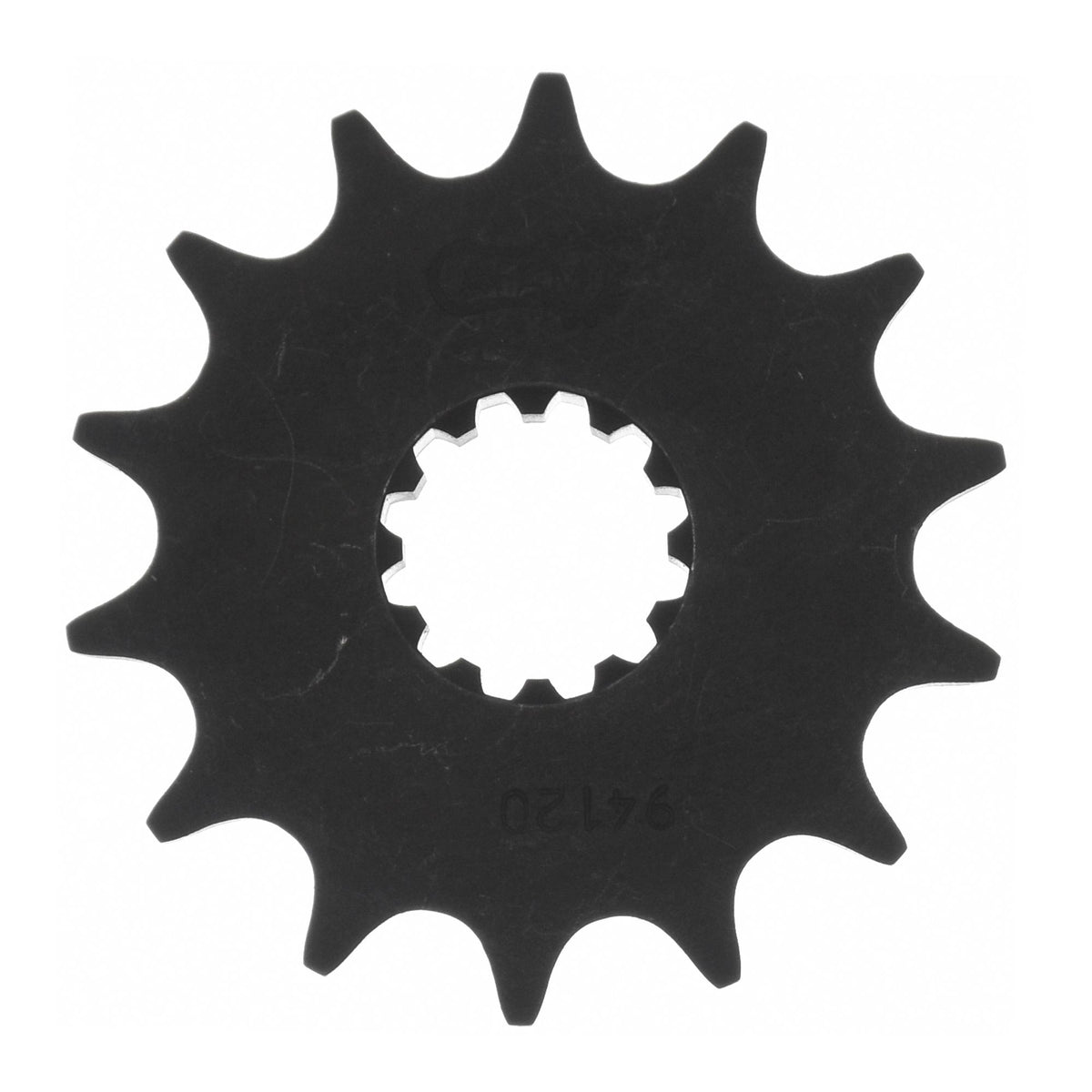

• Front sprocket: AFAM sprocket #420 14 teeth - a94120.14

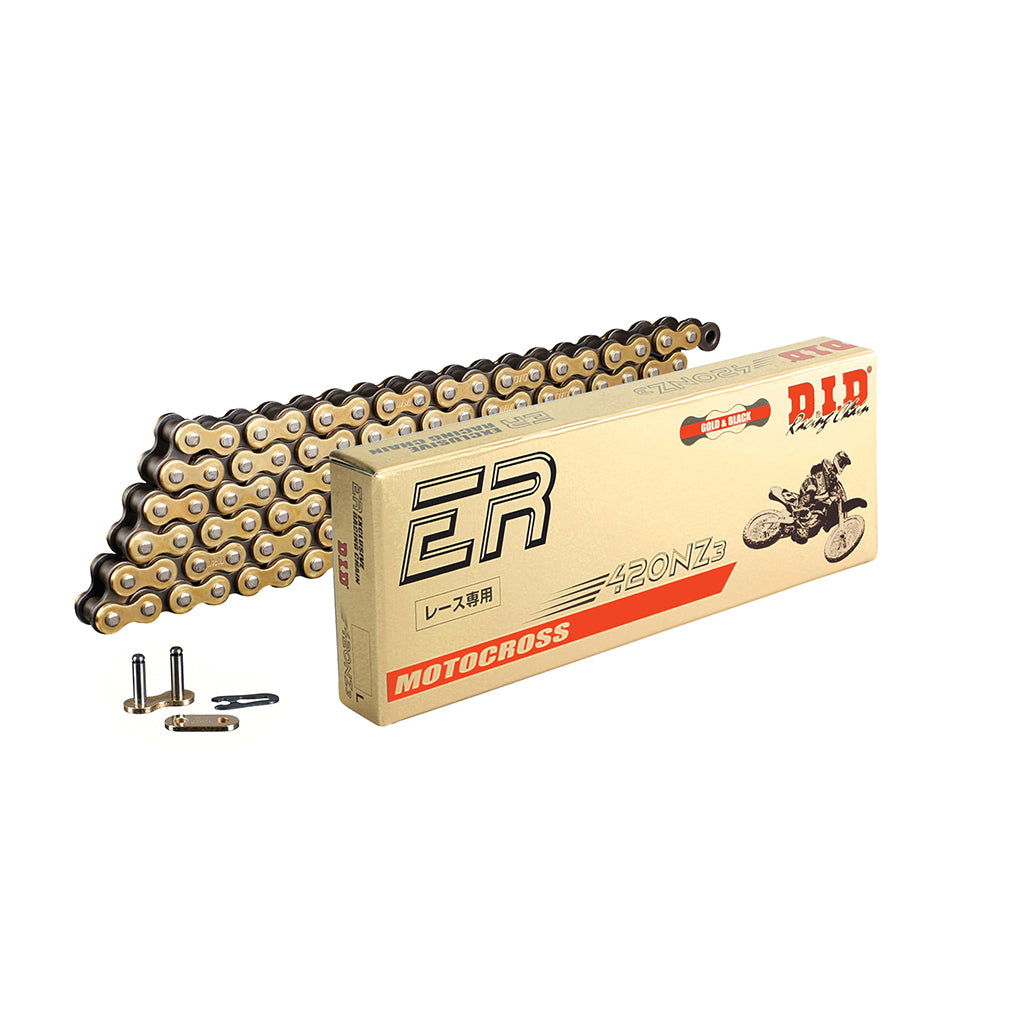

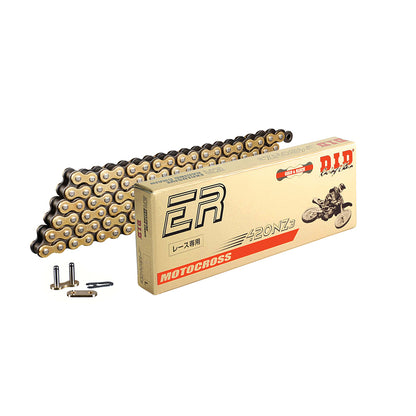

• Chain: DID chain 420 NZ3 G&B 112 with clip link - d6242002112

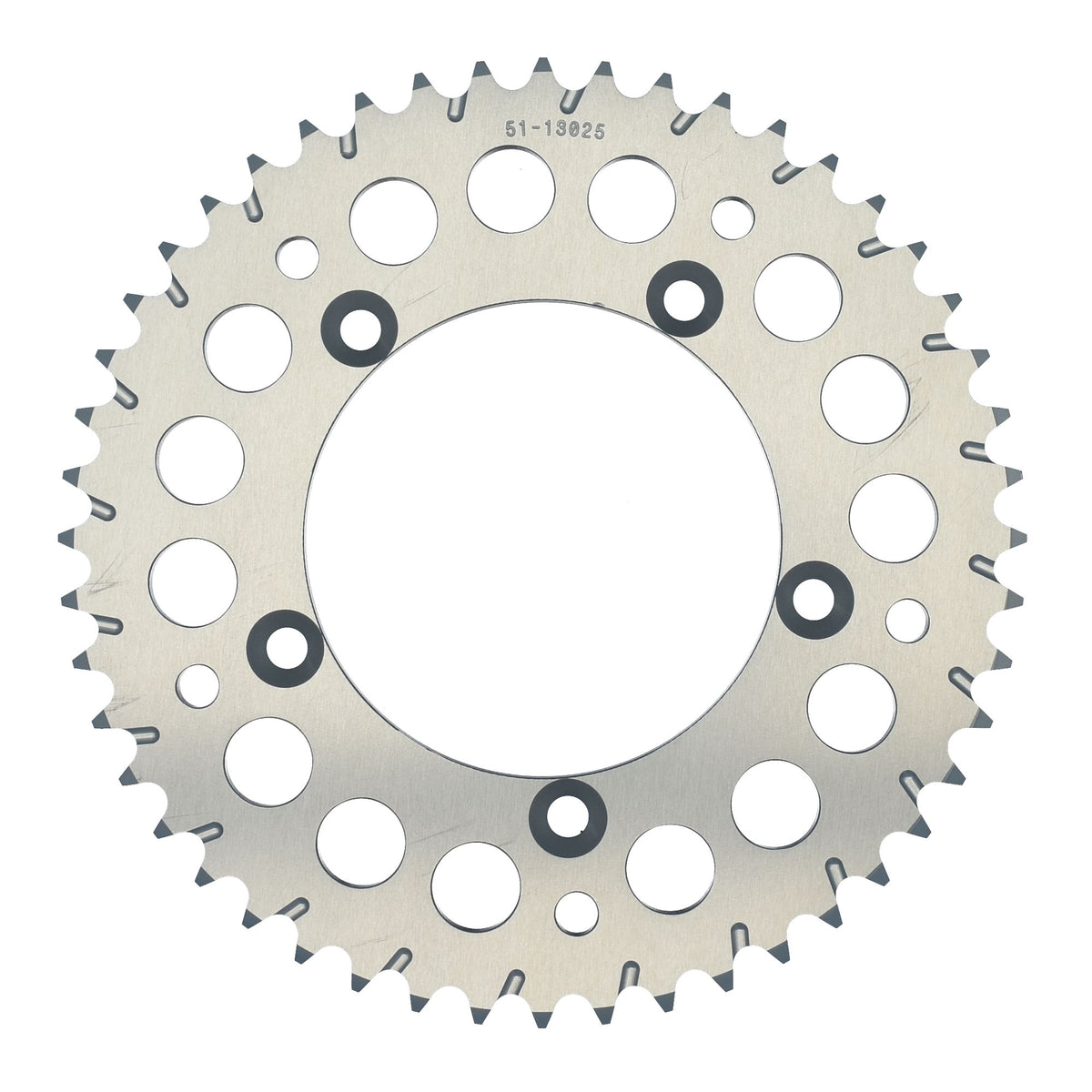

• Rear sprocket: AFAM rear sprocket ALU #420 48 teeth - a72101n.48
• Gear ratio sprocket-chain-rear sprocket: 14-112-48

DID 420 NZ3

Extra reinforced chain
Without O-rings
Color: Gold/Black
Application by displacement: up to 150 cc

Technical data:
Pitch: 420
Pin length: 16.75 mm
Roller Ø: 7.77 mm
Inner plate thickness: 1.8 mm
Outer plate thickness: 1.8 mm
Wear resistance index: 410
Tensile strength: 21.90 kN
Weight per 100 links: 0.82 kg

Unless stated otherwise: The goods offered are an accessory/spare part from a third-party manufacturer that was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-26950

Suitable for

KTM 0 - 100 cc SX 65 LC 2T 2012
KTM 0 - 100 cc SX 65 LC 2T 2013
KTM 0 - 100 cc SX 65 LC 2T 2014
KTM 0 - 100 cc SX 65 LC 2T 2015
KTM 0 - 100 cc SX 65 LC 2T 2016
KTM 0 - 100 cc SX 65 LC 2T 2017
KTM 0 - 100 cc SX 65 LC 2T 2018
KTM 0 - 100 cc SX 65 LC 2T 2019
