DID chain kit for KTM SX 85 (17/14 inch) 07-12 428 HD chain kit

DID Chain Kit for KTM SX 85 (17/14 inch) 07-12 428 HD Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

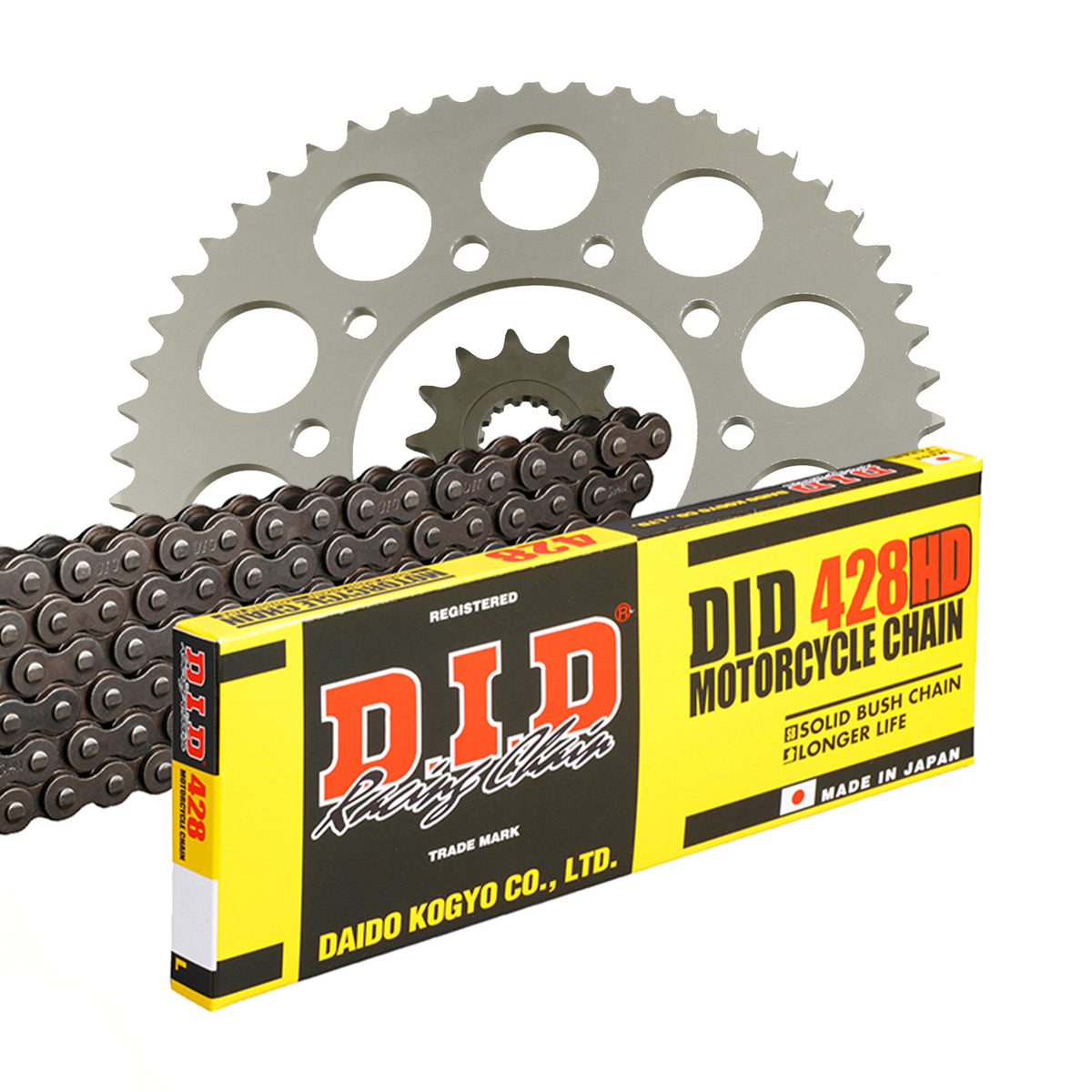

Components of the KTM SX 85 (17/14 inch) 2T 2007-2012 chain kit

• Front sprocket: AFAM front sprocket #428 14 teeth - a94202.14
• Chain: DID chain 428 HD 124 with clip-type master link - d6242801124
• Rear sprocket: AFAM rear sprocket ALU #428 - a72102n.46
• Gear ratio sprocket-chain-rear sprocket: 14-124-46

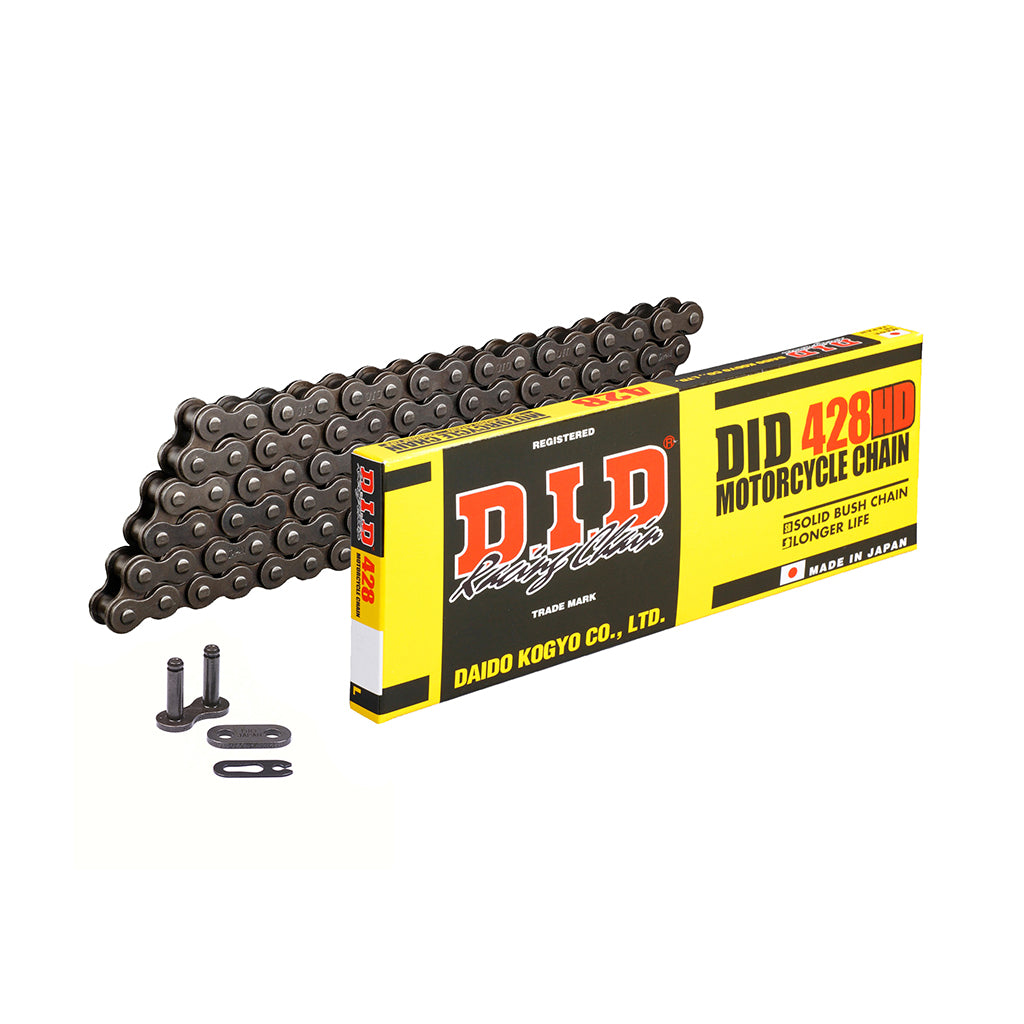

DID 428 HD

Lightly reinforced chain and successor to the proven 428 H
Without sealing rings (o-rings)
Color: Black

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-27325

Suitable for

KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2007
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2008
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2009
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2010
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2011
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2012
