DID chain kit for KTM SX 85 (17/14 inch) 07-12 428 NZ chain kit

DID Chain Kit for KTM SX 85 (17/14 inch) 07-12 428 NZ Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used solely to indicate compatibility!

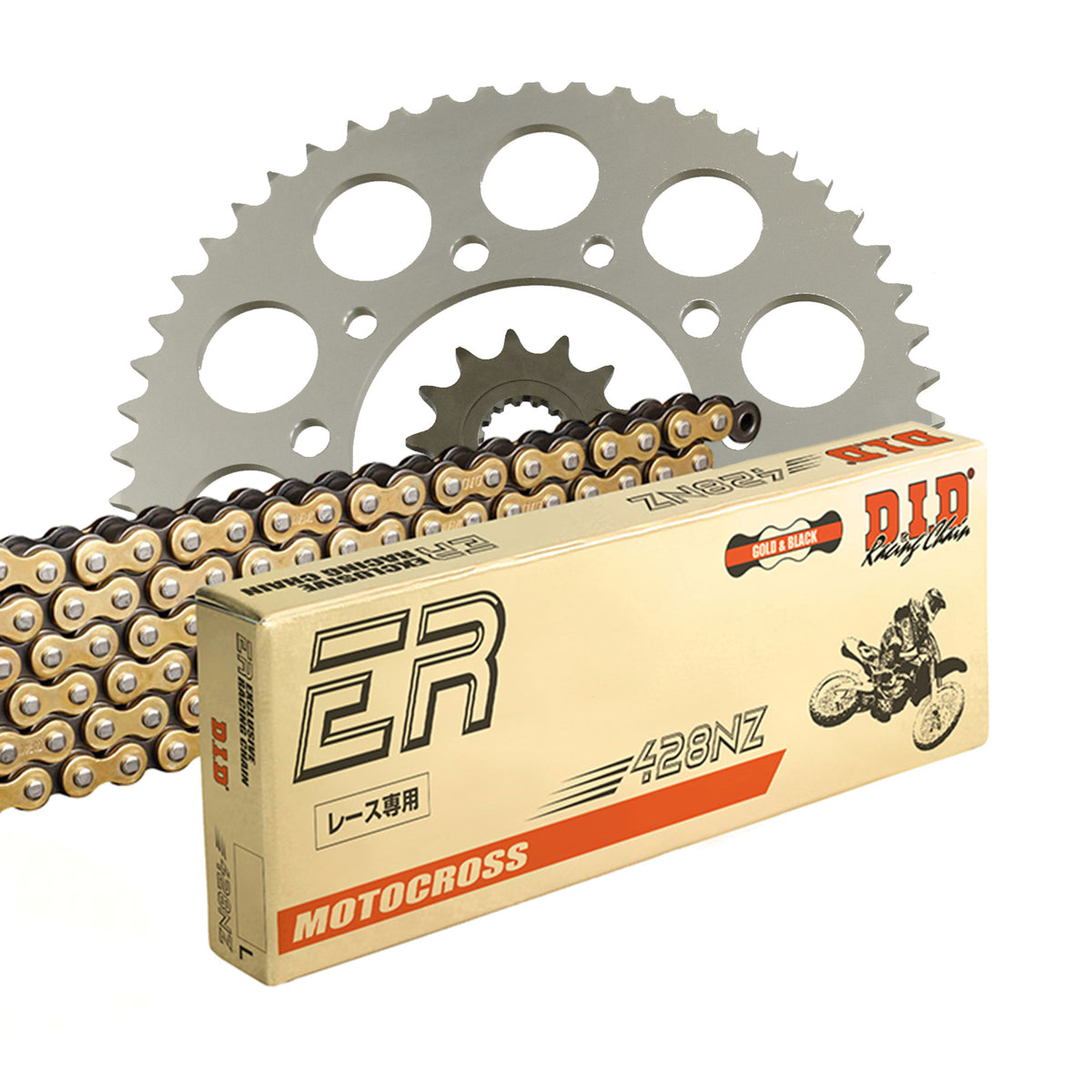

Components of the chain kit KTM SX 85 (17/14 inch) 2T 2007-2012

• Front sprocket: AFAM front sprocket #428 14 teeth - a94202.14
• Chain: DID chain 428 NZ G&B 124 with clip-style master link - d6242802124
• Rear sprocket: AFAM rear sprocket ALU #428 - a72102n.46
• Gear ratio front sprocket-chain-rear sprocket: 14-124-46

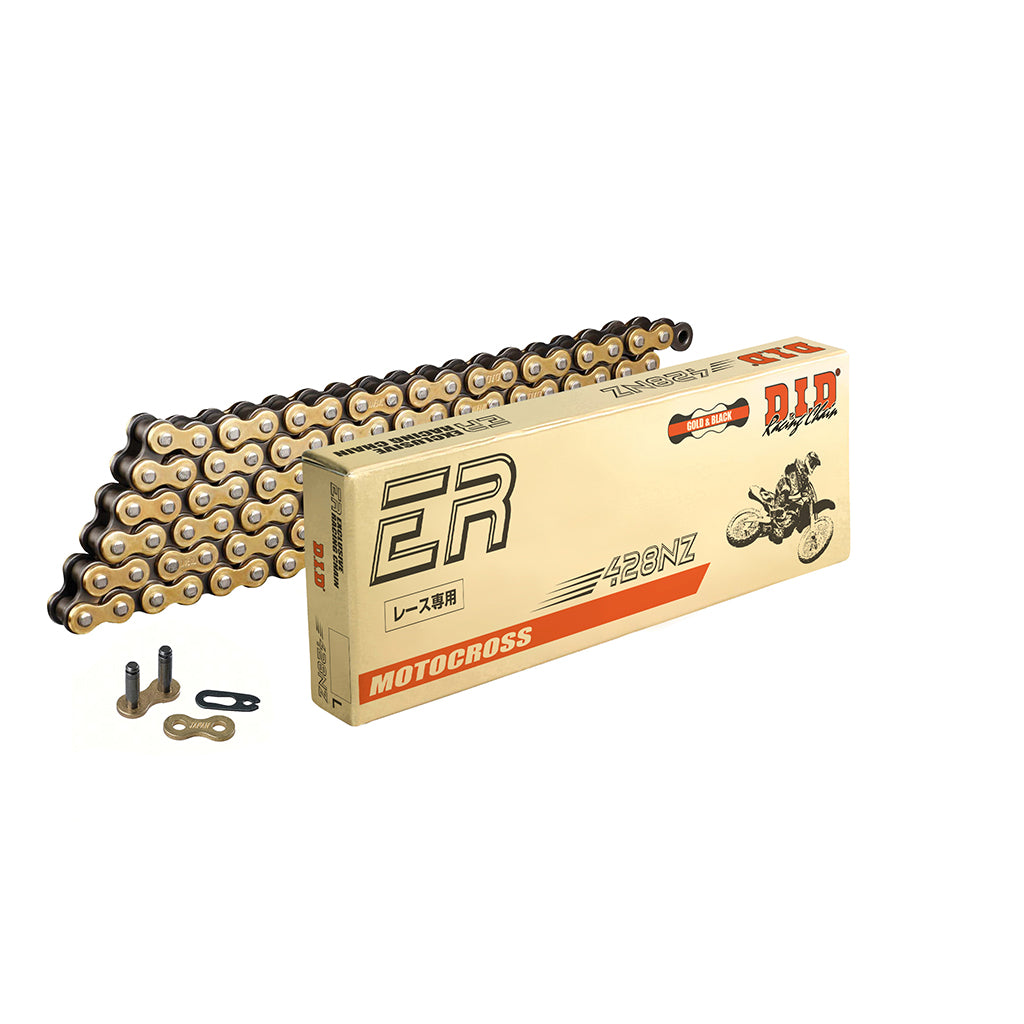

DID 428 NZ

Extra reinforced chain
Without O-rings
Color: Gold/Black
Application by displacement: up to 150 cc

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 410
Tensile strength: 25.50 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-27326

Suitable for

KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2007
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2008
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2009
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2010
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2011
KTM 0 - 100 cc SX 85 (17/14 inch) 2T 2012
