DID chain kit for KTM SX 85 (17/14 inch) 18-22 428 HD chain kit

DID chain kit for KTM SX 85 (17/14 inch) 18-22 428 HD chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

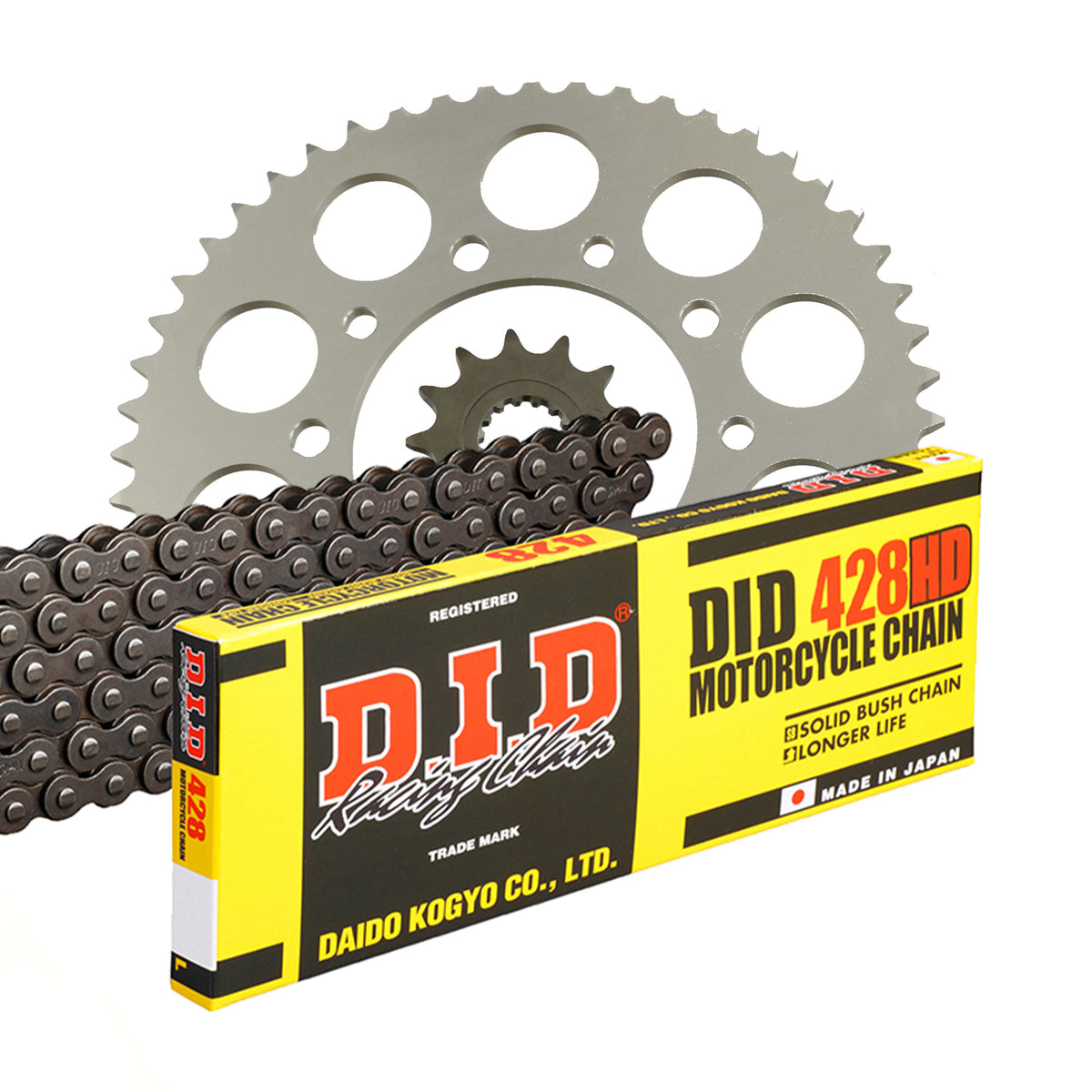

Components of the chain kit KTM SX 85 (17/14 inch) 2T 2018-2022

• Front sprocket: AFAM front sprocket #428 13 teeth - a94202.13
• Chain: DID chain 428 HD 124 with clip link - d6242801124
• Rear sprocket: AFAM rear sprocket ALU #428 - a72102n.46
• Gear ratio sprocket-chain-rear sprocket: 13-124-46

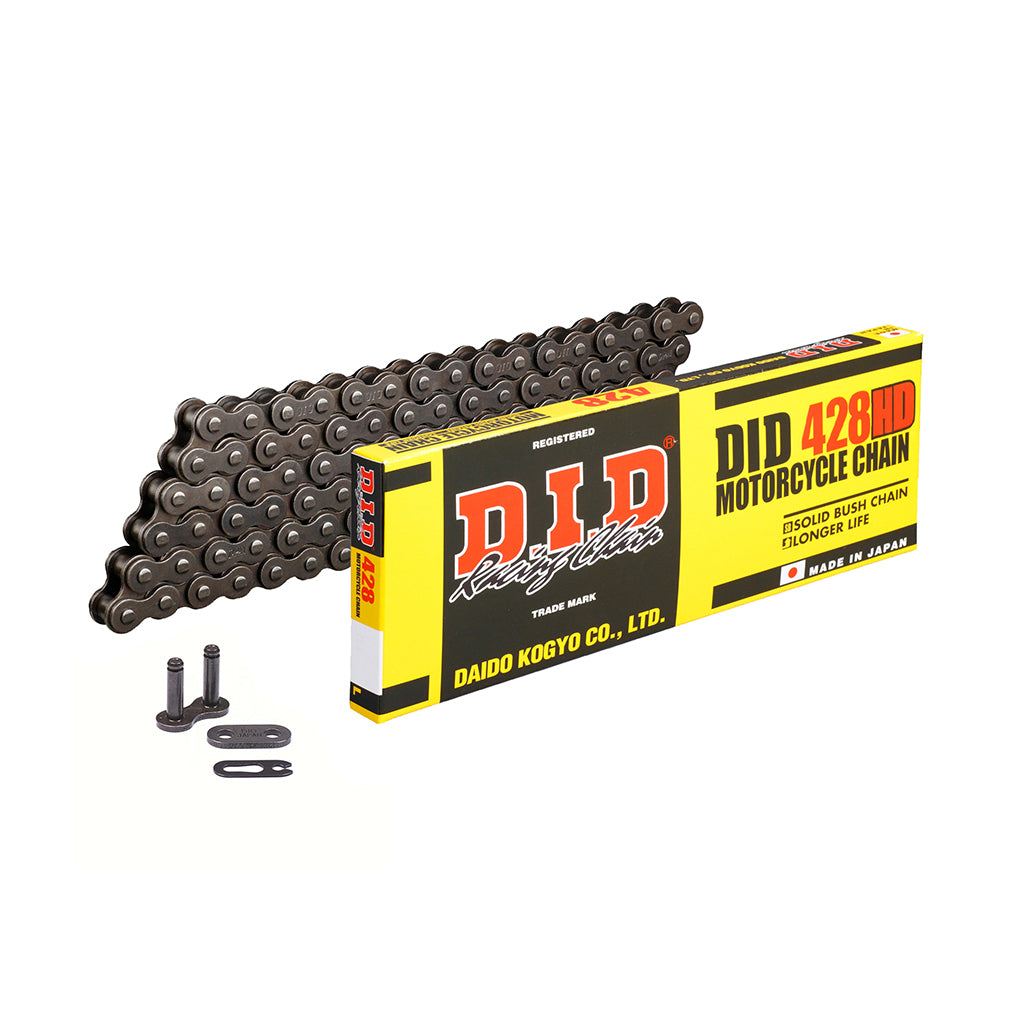

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-50081

Suitable for

KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2018
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2019
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2020
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2021
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2022
