DID chain kit for KTM SX 85 (17/14 inch) 18-22 428 VX chain kit

DID Chain Kit for KTM SX 85 (17/14 inch) 18-22 428 VX Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

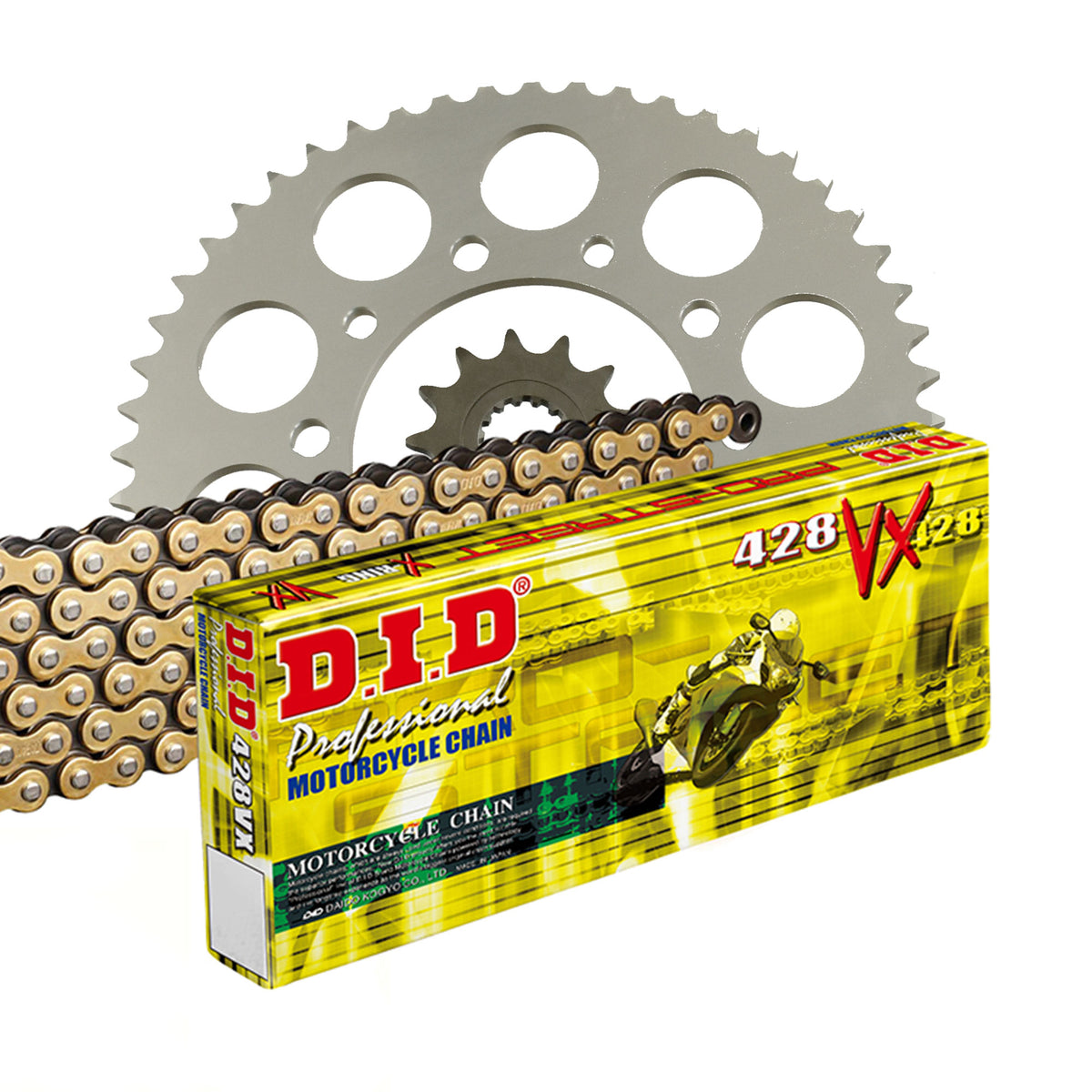

Components of the KTM SX 85 (17/14 inch) 2T 2018-2022 chain kit

• Front sprocket: AFAM front sprocket #428 13 teeth - a94202.13
• Chain: DID chain 428 VX G&B 124 with clip connecting link - d6242825124
• Rear sprocket: AFAM rear sprocket ALU #428 - a72102n.46
• Gear ratio front sprocket-chain-rear sprocket: 13-124-46

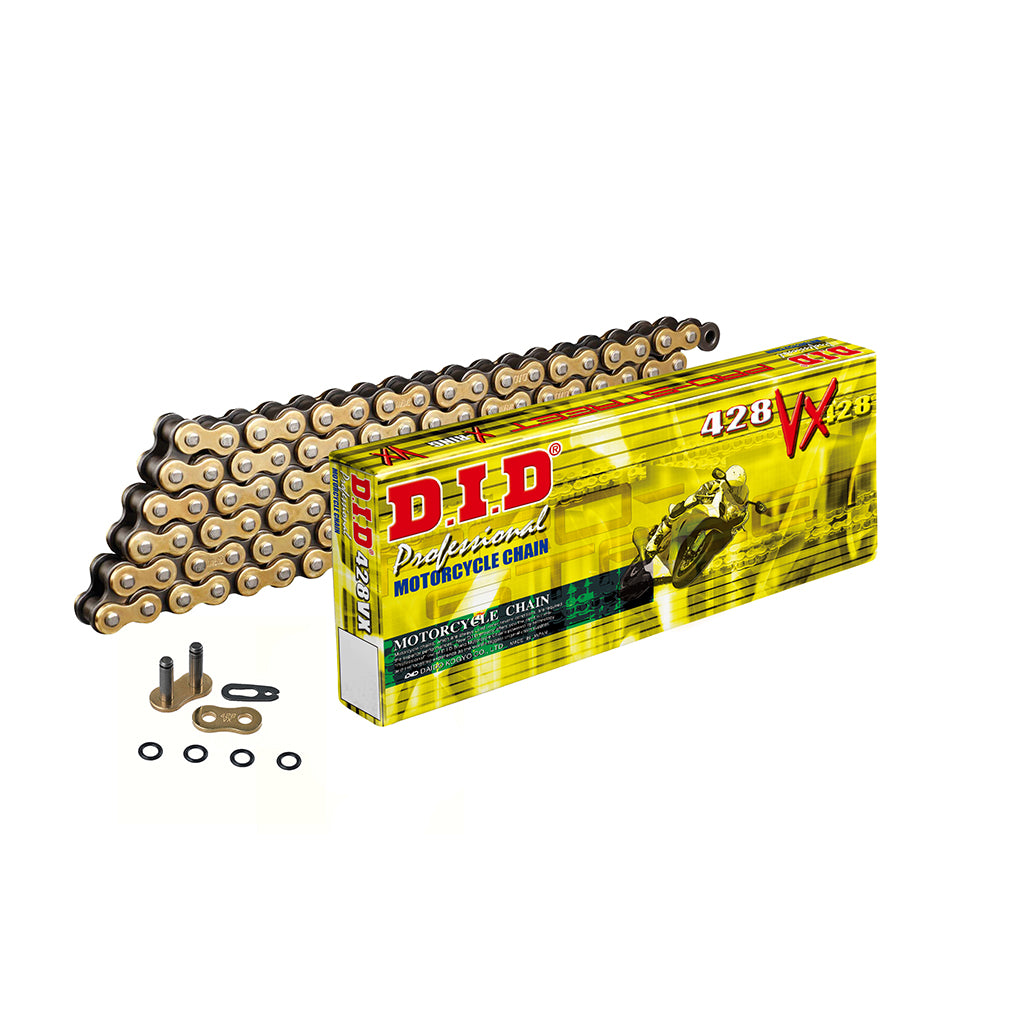

DID 428 VX

Very good quality in the 428 range
X-ring chain
Color: Gold/Black

Technical data:
Pitch: 428
Pin length: 20.65 mm
Roller Ø: 8.6 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 2700
Tensile strength: 33.00 kN
Weight per 100 links: 1.21 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-40506

Suitable for

KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2018
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2019
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2020
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2021
KTM 0 - 100 ccm SX 85 (17/14 inch) 2T 2022
