DID chain kit for KTM SX 85 (19/16 inch) 13-17 428 HD chain kit

DID chain kit for KTM SX 85 (19/16 inch) 13-17 428 HD chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

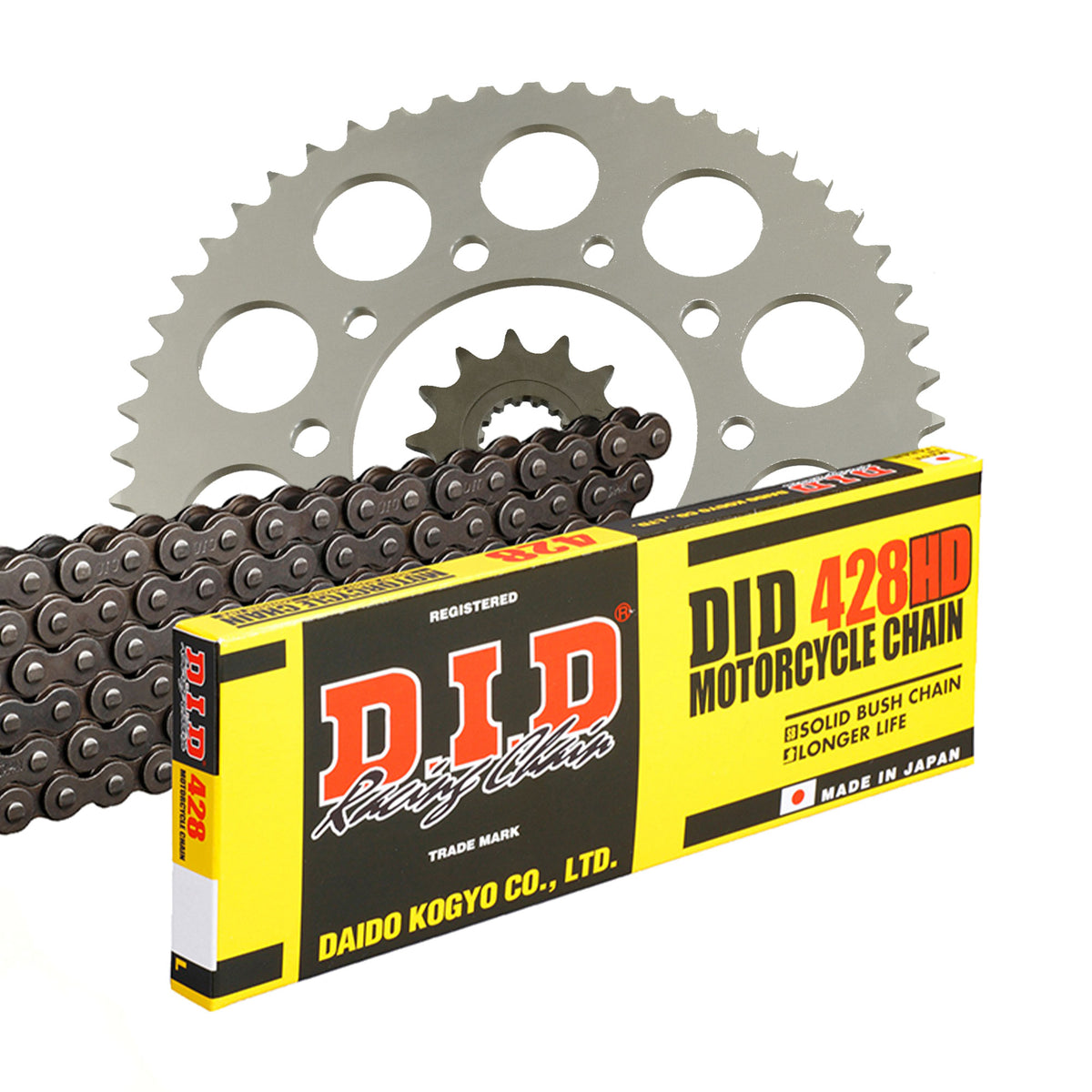

Components of the chain kit KTM SX 85 (19/16 inch) 2T 2013-2017

• Sprocket: AFAM sprocket #428 14 teeth - a94202.14
• Chain: DID chain 428 HD 124 with clip connecting link - d6242801124
• Rear sprocket: AFAM rear sprocket 49 teeth - a72102n.49
• Gear ratio sprocket-chain-rear sprocket: 14-124-49

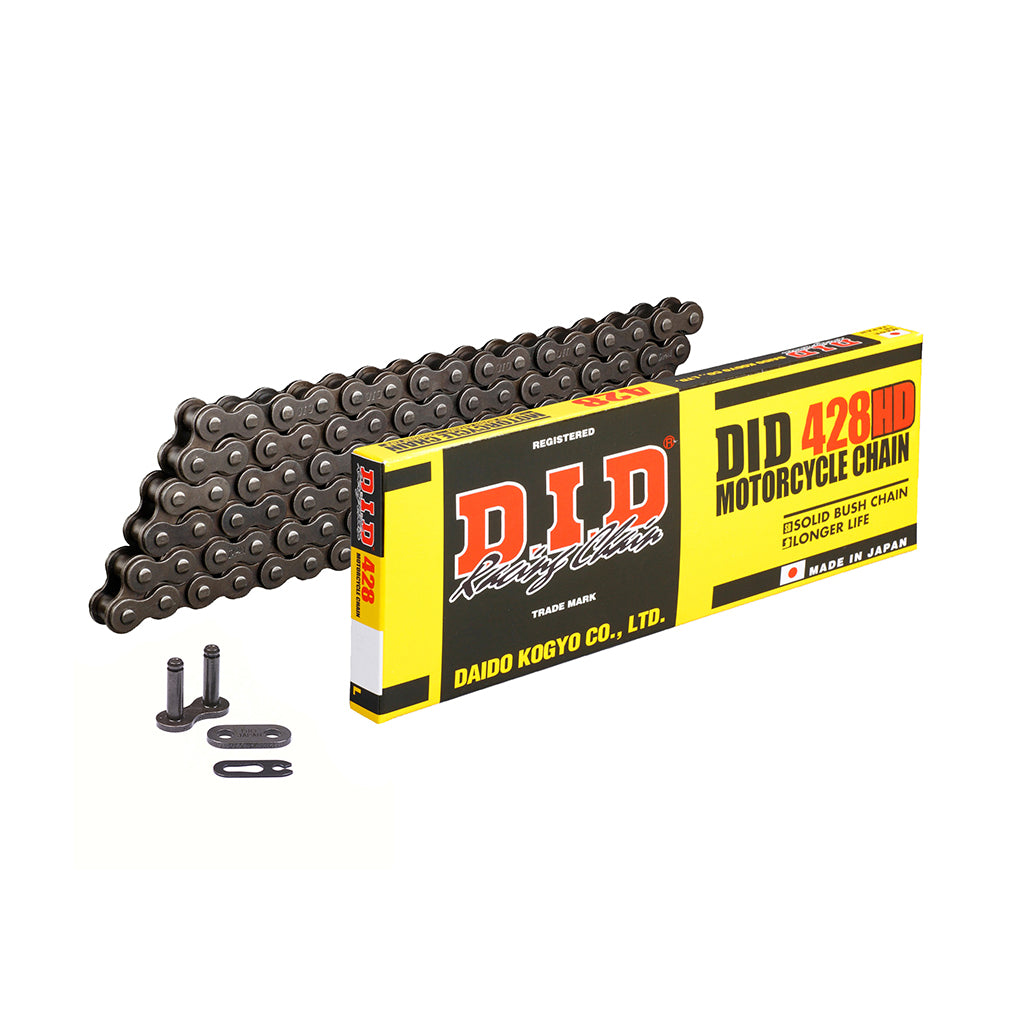

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-72752

Fits

KTM 0 - 100 ccm SX 85 (19/16 inch) 2T 2013
KTM 0 - 100 ccm SX 85 (19/16 inch) 2T 2014
KTM 0 - 100 ccm SX 85 (19/16 inch) 2T 2015
KTM 0 - 100 ccm SX 85 (19/16 inch) 2T 2016
KTM 0 - 100 ccm SX 85 (19/16 inch) 2T 2017
