DID chain kit for KTM SX 85 (19/16 inch) 2022 428 HD chain kit

DID chain kit for KTM SX 85 (19/16 inch) 2022 428 HD chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

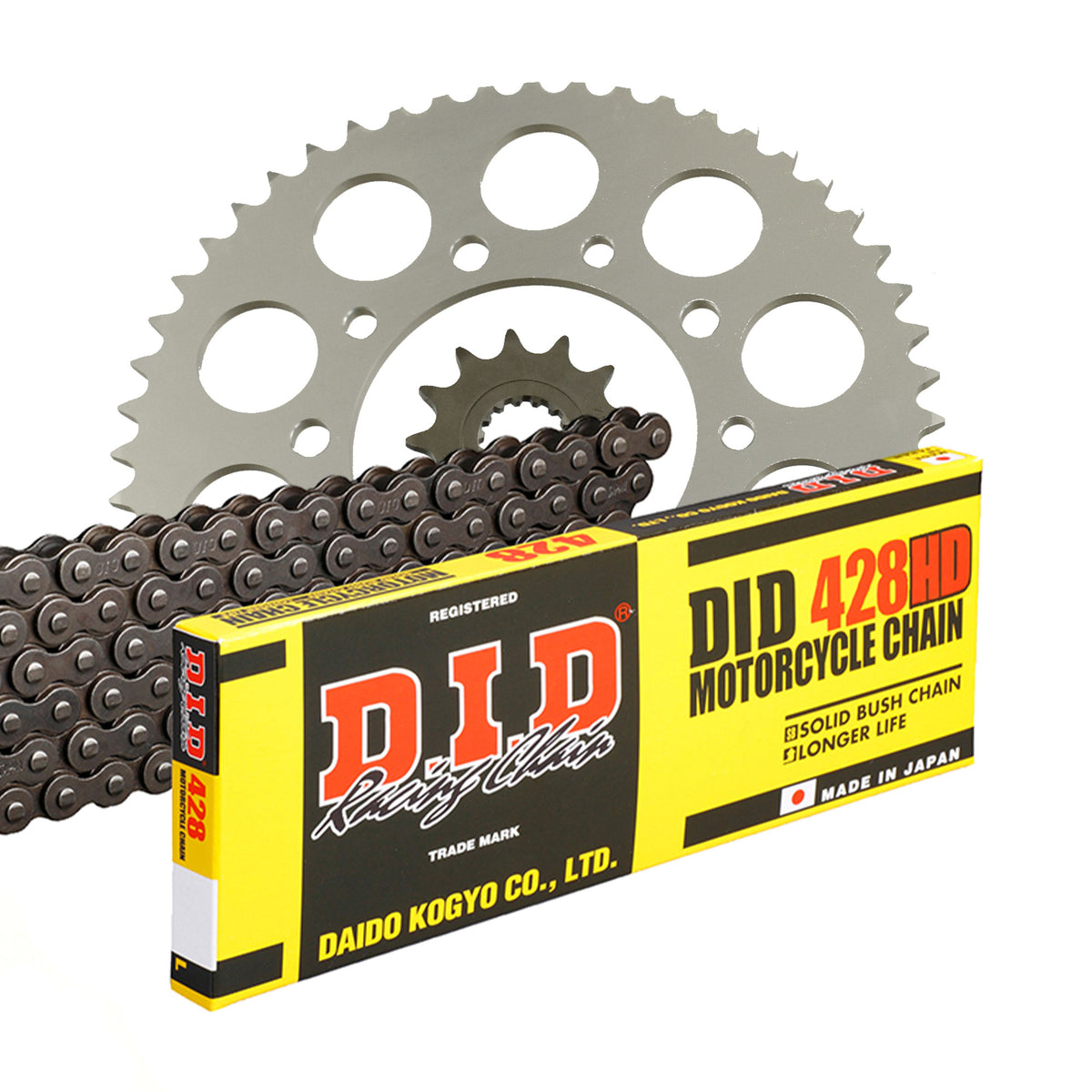

Components of the chain kit KTM SX 85 (19/16 inch) 2T 2022-2022

• Front sprocket: AFAM sprocket #428 13 teeth - a94202.13
• Chain: DID chain 428 HD 124 with clip master link - d6242801124
• Rear sprocket: AFAM sprocket ALU #428 - a72102n.46
• Gear ratio sprocket-chain-rear sprocket: 13-124-46

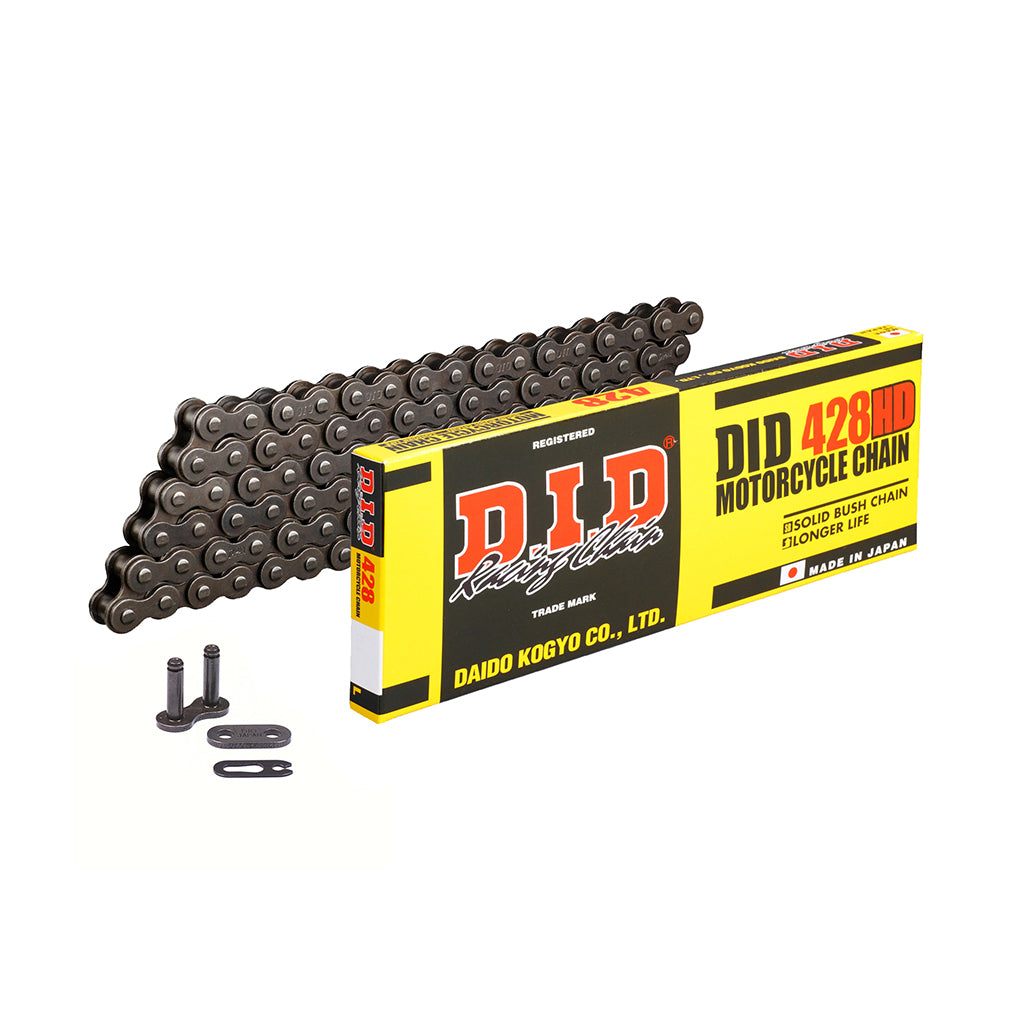

DID 428 HD

Lightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-50085

Fits

KTM 0 - 100 ccm SX 85 (19/16 inch) 2T 2022
