DID chain kit for KTM SX-F 250 13-17 520 ZVMX chain kit

DID Chain Kit for KTM SX-F 250 13-17 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility identification purposes only!

Components of the KTM SX-F 250 4T 2013-2017 chain kit

• Front sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 ZVM-X G&G 118 with rivet link - d6252029118

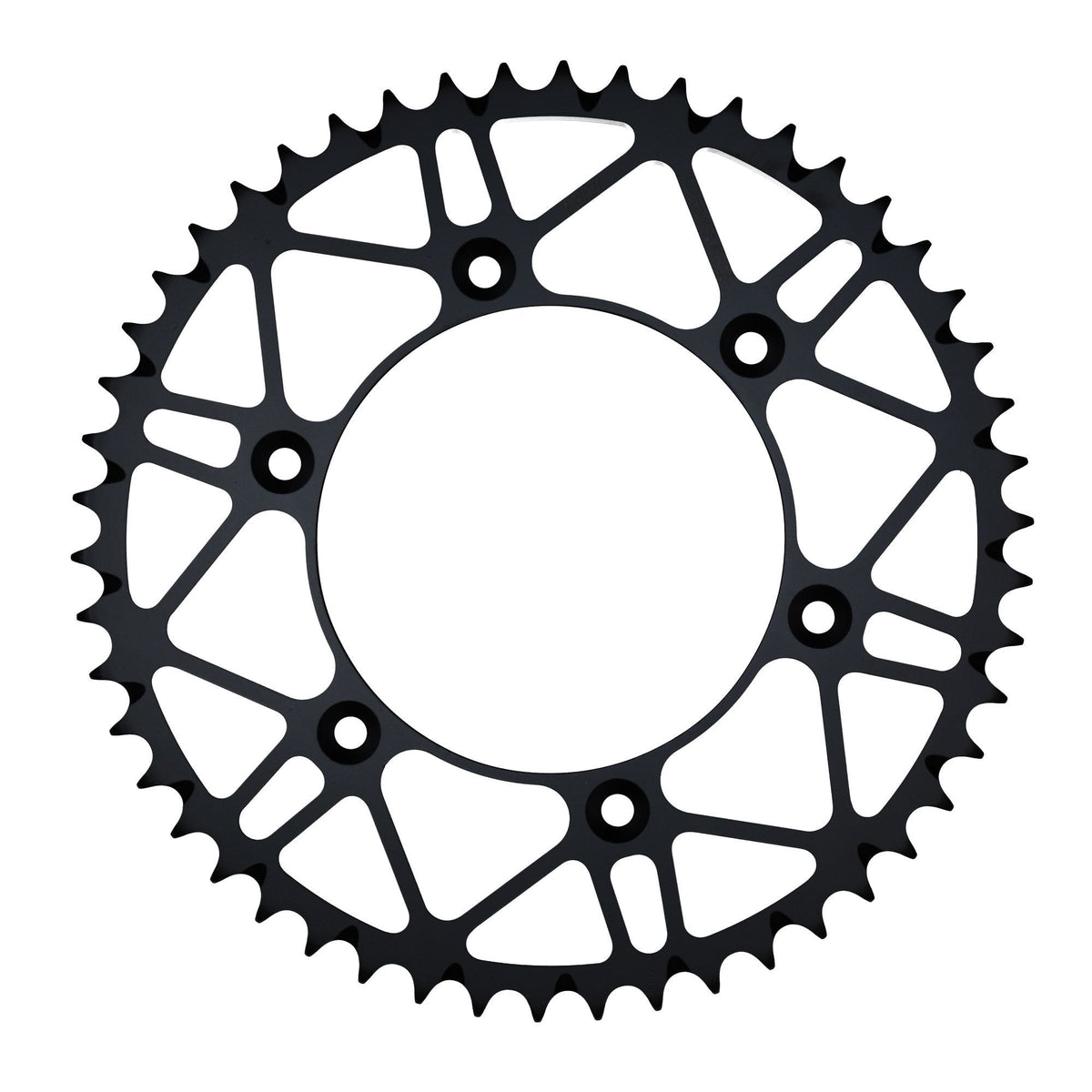

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a71304slk.50
• Gear ratio sprocket-chain-rear sprocket: 13-118-50

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-46028

Suitable for

KTM 126 - 250 cc SX-F 250 4T 2013
KTM 126 - 250 cc SX-F 250 4T 2014
KTM 126 - 250 cc SX-F 250 4T 2015
KTM 126 - 250 cc SX-F 250 4T 2016
KTM 126 - 250 cc SX-F 250 4T 2017
