DID chain kit for KTM SX-F 250 13-17 520 ZVMX chain kit

DID chain kit for KTM SX-F 250 13-17 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the KTM SX-F 250 4T 2013-2017 chain kit

• Front sprocket: AFAM sprocket #520 SC 13 teeth - a73301.13sc
• Chain: DID chain 520 ZVM-X G&G 118 with rivet link - d6252029118

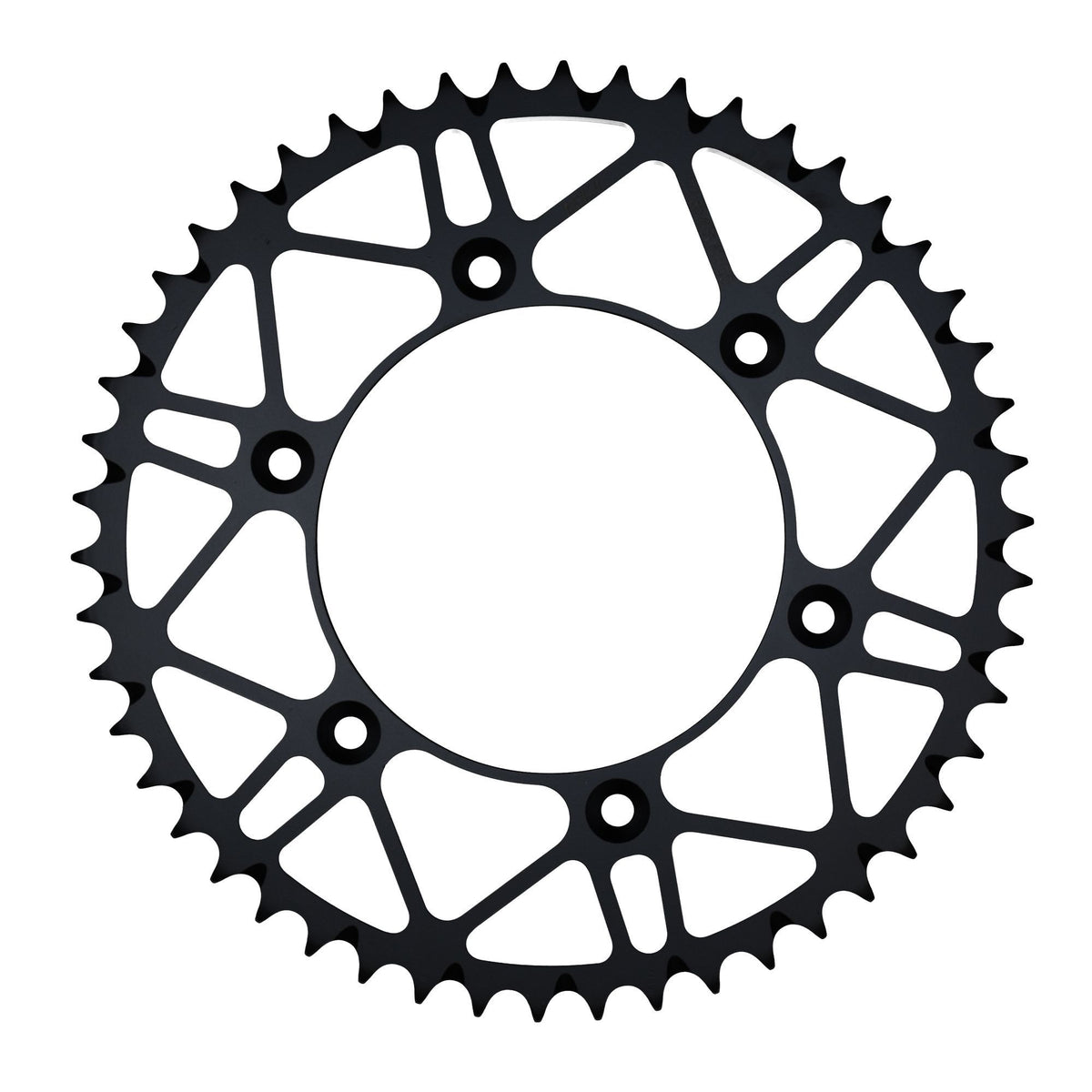

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a71304slk.50
• Gear ratio sprocket-chain-rear sprocket: 13-118-50

DID 520 ZVM-X

Extra reinforced chain, versatile field of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Article number	KKF-59182

Suitable for

KTM 126 - 250 cc SX-F 250 4T 2013
KTM 126 - 250 cc SX-F 250 4T 2014
KTM 126 - 250 cc SX-F 250 4T 2015
KTM 126 - 250 cc SX-F 250 4T 2016
KTM 126 - 250 cc SX-F 250 4T 2017
