DID chain kit for KTM SX-F 250 Factory Edition 2017 520 ZVMX chain kit

DID chain set for KTM SX-F 250 Factory Edition 2017 520 ZVMX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - Manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit KTM SX-F 250 Factory Edition 4T 2017-2017

• Sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118

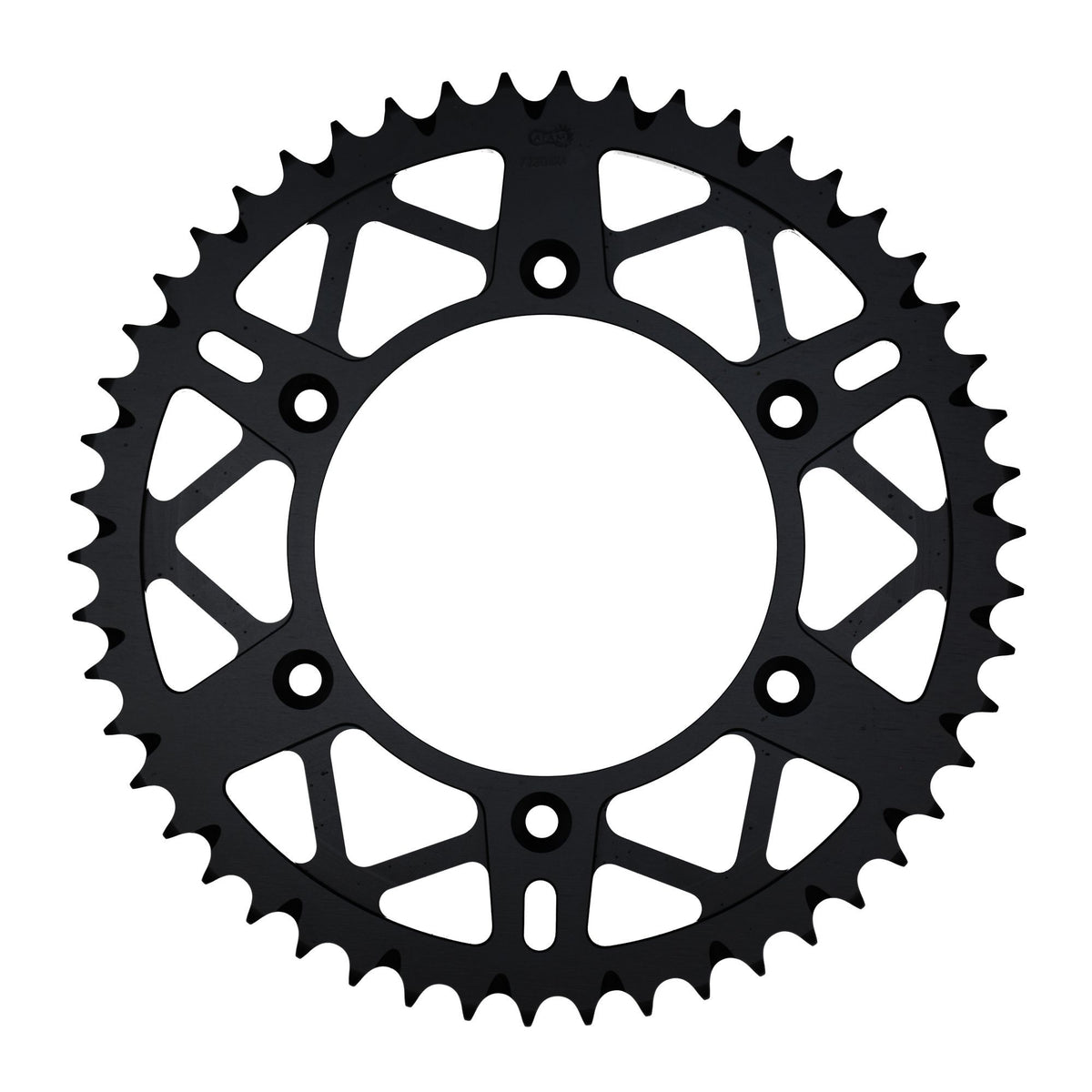

• Chain wheel: AFAM steel sprocket #520 with mud grooves 50 T - a72304PK.50
• Gear ratio sprocket-chain-chain wheel: 13-118-50

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-49509

Fits

KTM 126 - 250 cc SX-F 250 Factory Edition 4T 2017
