DID chain set for KTM SX-F 250 Prado 2020 520 ERT3 chain kit

DID Chain Kit for KTM SX-F 250 Prado 2020 520 ERT3 Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM SX-F 250 Prado 4T 2020-2020

• Front sprocket: AFAM front sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 ERT3 G&G 118 with clip master link - d520ert3-118

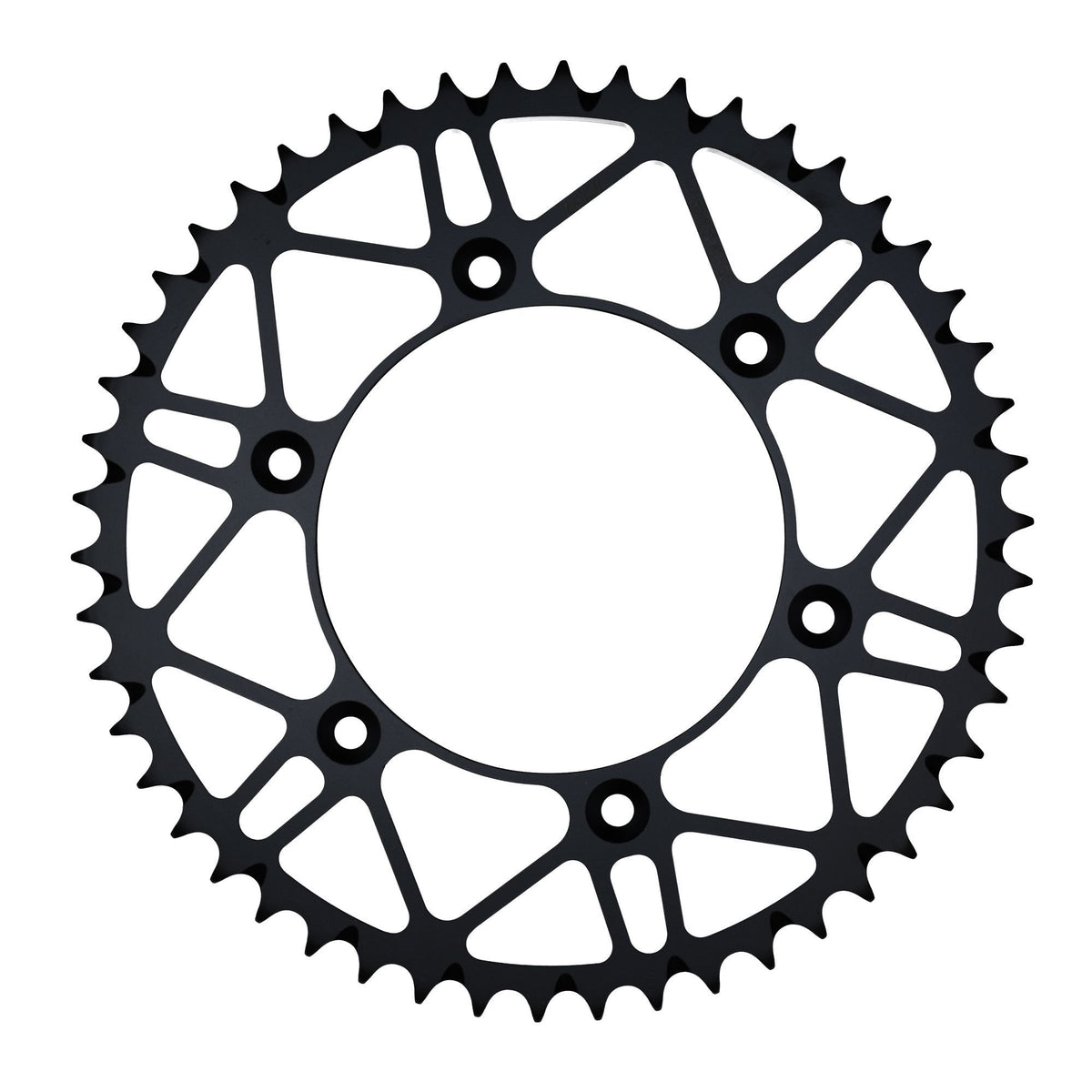

• Rear sprocket: AFAM rear sprocket steel #520 with mud grooves 51 T - a71304slk.51
• Gear ratio front sprocket-chain-rear sprocket: 14-118-51

DID 520 ERT3

Extra reinforced pure motocross chain
Without sealing rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-15792

Suitable for

KTM 126 - 250 cc SX-F 250 Prado 4T 2020
