DID chain set for KTM SX-F 350 20-22 520 ZVMX chain kit

DID Chain Kit for KTM SX-F 350 20-22 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility identification purposes only!

Components of the KTM SX-F 350 4T 2020-2022 chain kit

• Front sprocket: AFAM sprocket #520 14 teeth - a73301.14
• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118

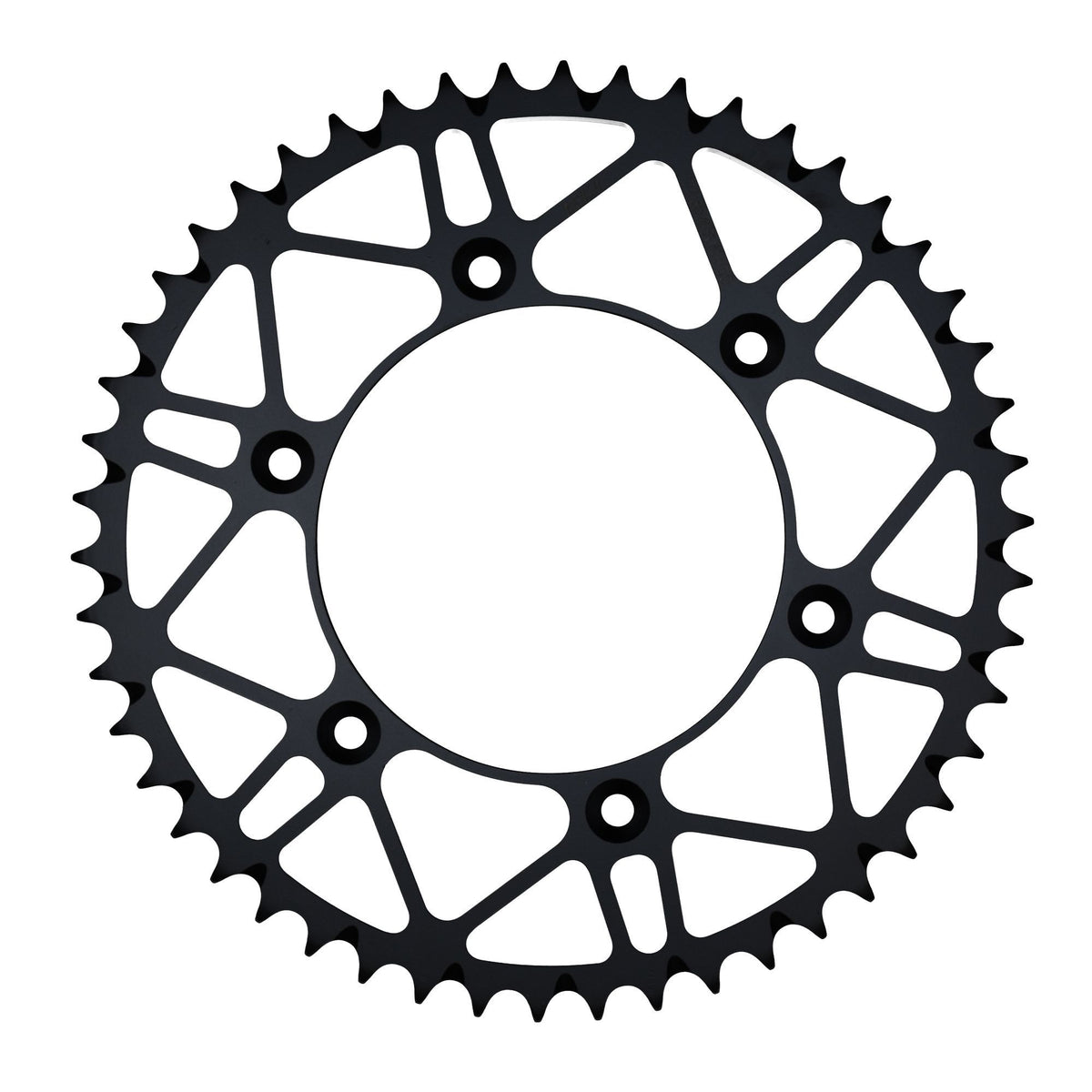

• Rear sprocket: AFAM rear sprocket steel #520 with mud grooves 51 T - a71304slk.51
• Transmission ratio sprocket-chain-rear sprocket: 14-118-51

DID 520 ZVM-X

Extra reinforced chain, versatile range of application
X-ring chain
Color: Gold/Gold
Application by engine displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-29992

Suitable for

KTM 251 - 500 cc SX-F 350 4T 2020
KTM 251 - 500 cc SX-F 350 4T 2021
KTM 251 - 500 cc SX-F 350 4T 2022
