DID chain set for KTM SX-F 350 2022 520 NZ chain kit

DID chain kit for KTM SX-F 350 2022 520 NZ chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit KTM SX-F 350 4T 2022-2022

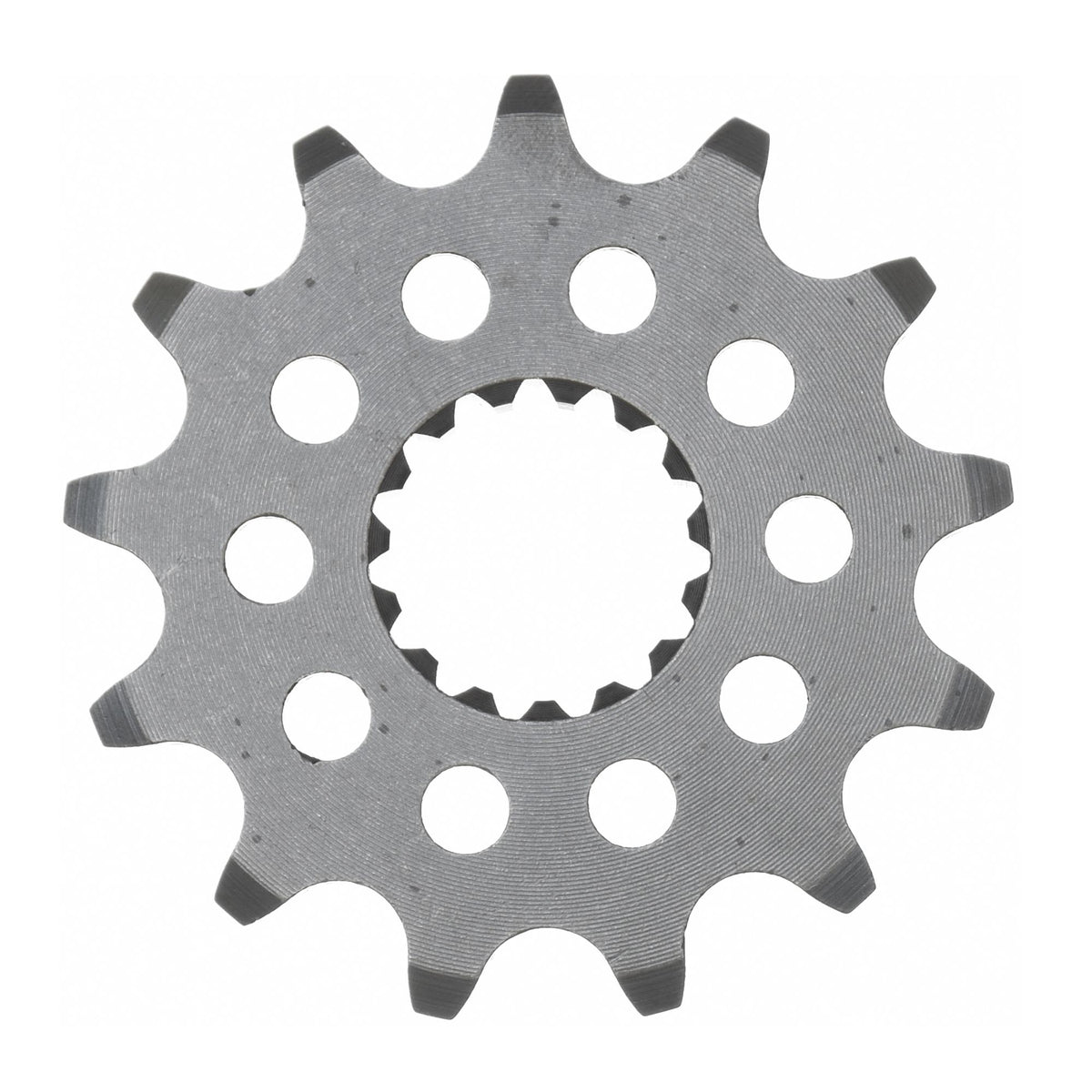

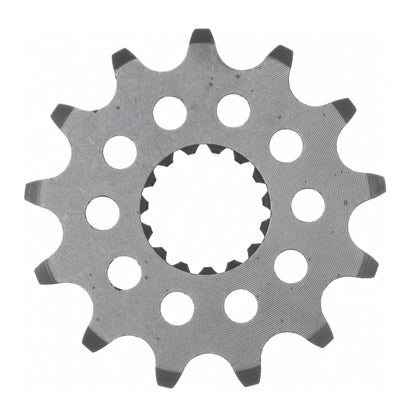

• Front sprocket: Esjot front sprocket 73301-14 #520 Sport 14 teeth - a73301s.14
• Chain: DID chain 520 NZ 118 with clip connecting link - d6252001118
• Rear sprocket: Esjot rear sprocket STEEL #520 51 teeth - a71304.51
• Gear ratio front sprocket-chain-rear sprocket: 14-118-51

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-16953

Fits

KTM 251 - 500 ccm SX-F 350 4T 2022
