DID chain set for KTM SX-F 350 2022 520 VX3 chain kit

DID chain kit for KTM SX-F 350 2022 520 VX3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to illustrate compatibility!

Components of the chain kit KTM SX-F 350 4T 2022-2022

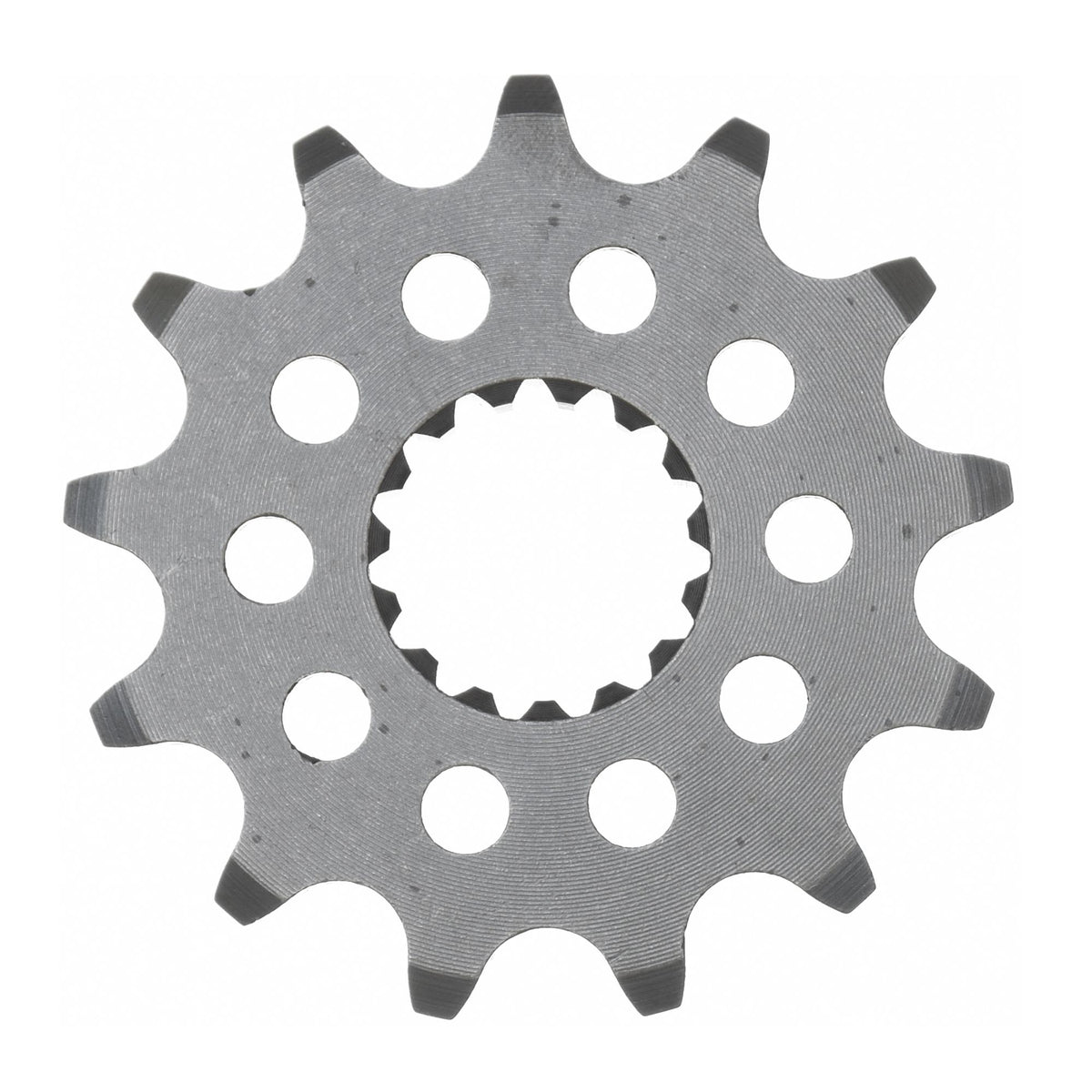

• Front sprocket: Esjot front sprocket 73301-14 #520 Sport 14 teeth - a73301s.14
• Chain: DID chain 520 VX3 G&B 118 with rivet link - d520vx3-118
• Rear sprocket: Esjot rear sprocket STEEL #520 51 teeth - a71304.51
• Gear ratio front sprocket-chain-rear sprocket: 14-118-51

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-30558

Fits

KTM 251 - 500 cc SX-F 350 4T 2022
