DID chain set for KTM SX-F 450 20-22 520 ZVMX chain kit

DID chain kit for KTM SX-F 450 20-22 520 ZVMX chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned for the representation of compatibility!

Components of the chain kit KTM SX-F 450 4T 2020-2022

• Front sprocket: AFAM sprocket #520 SC 13 teeth - a73301.13sc
• Chain: DID chain 520 ZVM-X G&G 118 w. rivet link - d6252029118

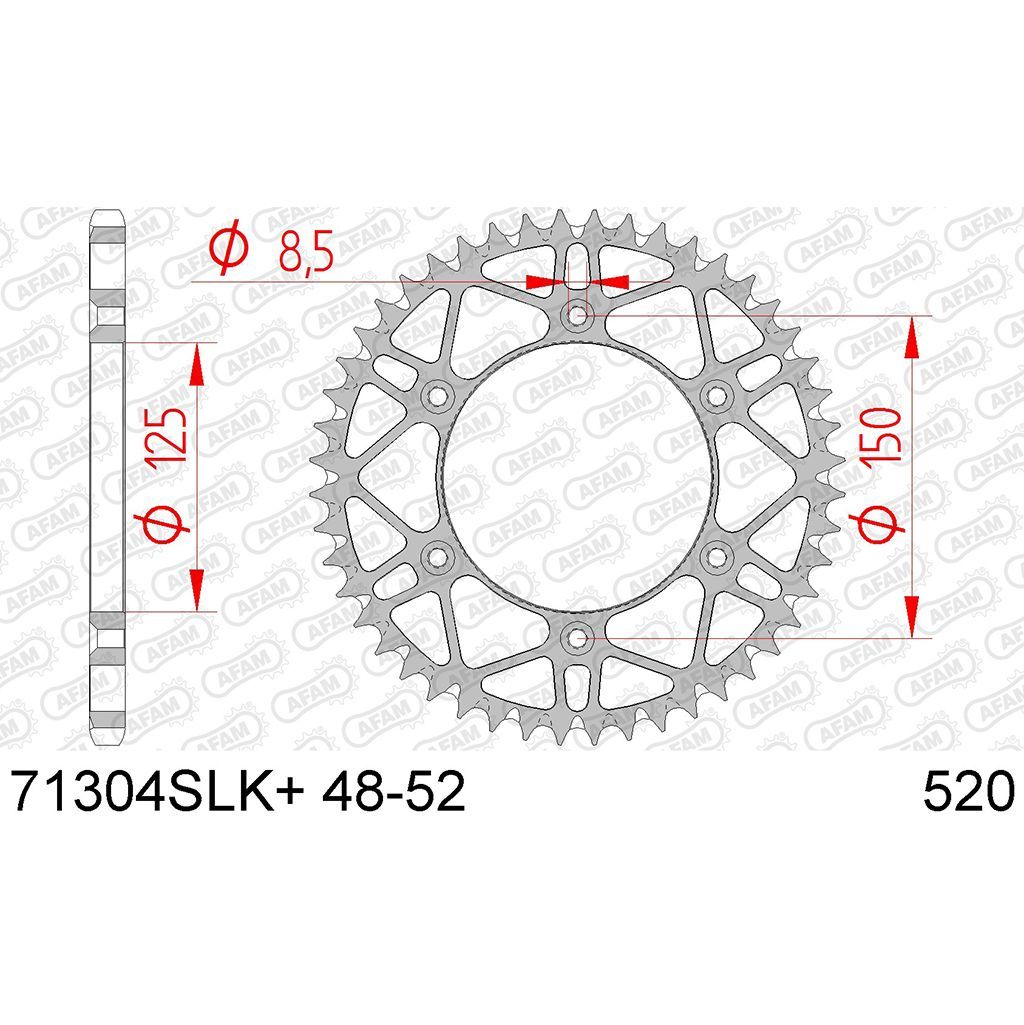

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 49 T - a71304slk.49
• Transmission ratio front sprocket-chain-rear sprocket: 13-118-49

DID 520 ZVM-X

Extra reinforced chain, versatile range of use
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Mileage index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-58818

Fits

KTM 251 - 500 cc SX-F 450 4T 2020
KTM 251 - 500 cc SX-F 450 4T 2021
KTM 251 - 500 cc SX-F 450 4T 2022
