DID chain kit for KTM SX-F 450 Cairoli 2020 520 ERT3 chain kit

DID chain kit for KTM SX-F 450 Cairoli 2020 520 ERT3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit KTM SX-F 450 Cairoli 4T 2020-2020

• Front sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 ERT3 G&G 118 with clip-type master link - d520ert3-118

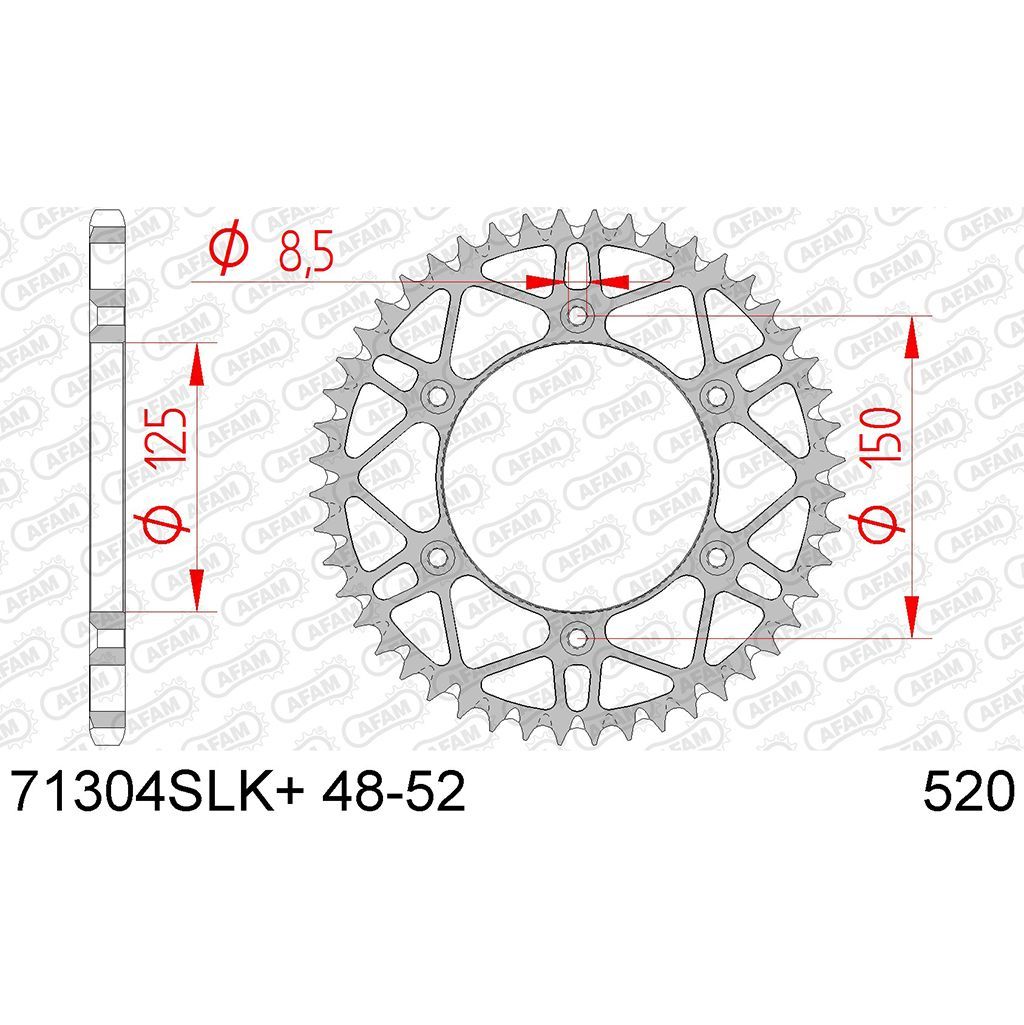

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 49 T - a71304slk.49
• Gear ratio sprocket-chain-rear sprocket: 13-118-49

DID 520 ERT3

Extra reinforced pure motocross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / motocross only

Technical specifications:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear life index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-46592

Suitable for

KTM 251 - 500 cc SX-F 450 Cairoli 4T 2020
