DID chain kit for KTM SX-F 450 Cairoli 2020 520 ERT3 chain kit

DID chain set for KTM SX-F 450 Cairoli 2020 520 ERT3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the KTM SX-F 450 Cairoli 4T 2020-2020 chain kit

• Sprocket: AFAM sprocket #520 SC 13 teeth - a73301.13sc
• Chain: DID chain 520 ERT3 G&G 118 with clip connecting link - d520ert3-118

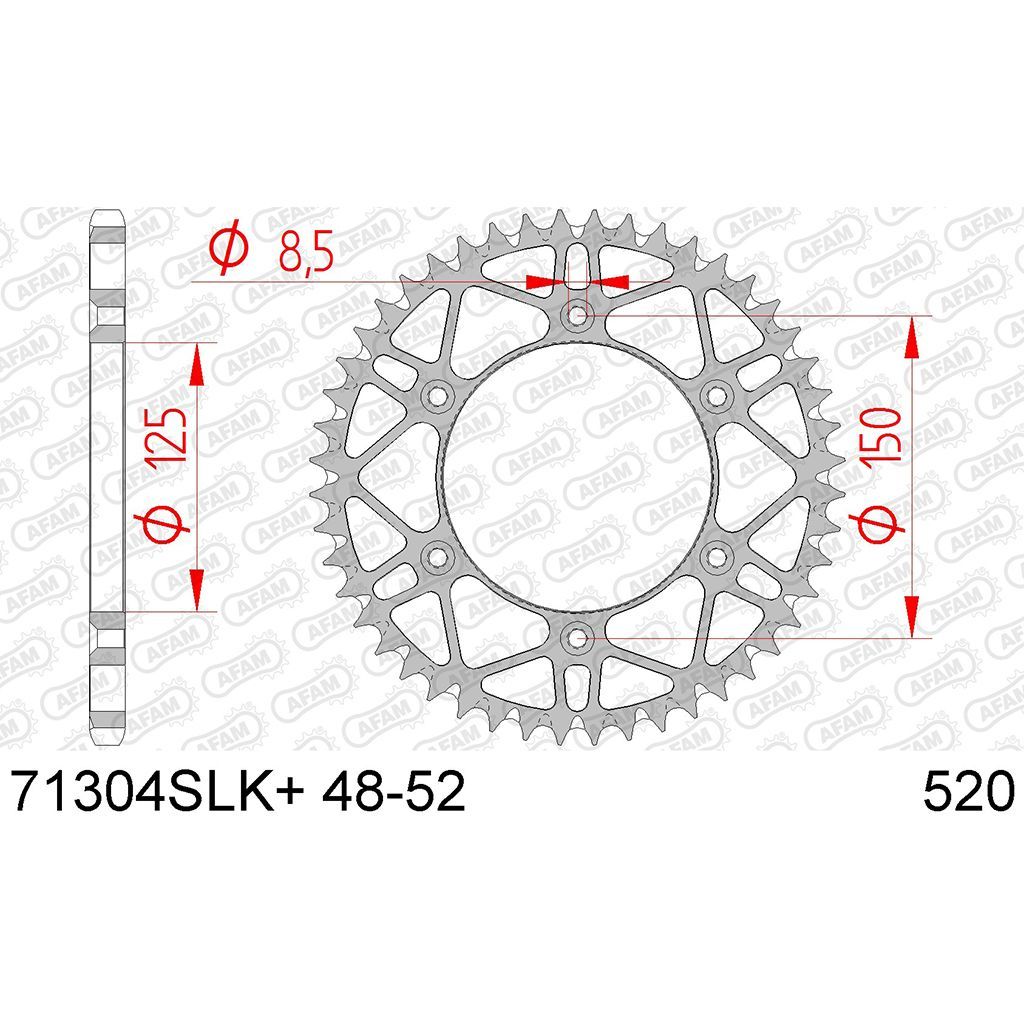

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 49 teeth - a71304slk.49
• Gear ratio sprocket-chain-rear sprocket: 13-118-49

DID 520 ERT3

Extra reinforced pure moto-cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 450 cc / moto-cross only

Technical data:
Pitch: 520
Pin length: 17.6 mm
Roller Ø: 10.16 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 430
Tensile strength: 37.70 kN
Weight per 100 links: 1.36 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-59744

Fits

KTM 251 - 500 cc SX-F 450 Cairoli 4T 2020
