DID chain kit for KTM SX-F 450 Factory Edition 2020 520 NZ chain kit

DID chain kit for KTM SX-F 450 Factory Edition 2020 520 NZ chain set

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit KTM SX-F 450 Factory Edition 4T 2020-2020

• Front sprocket: AFAM front sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 NZ 118 with clip connecting link - d6252001118

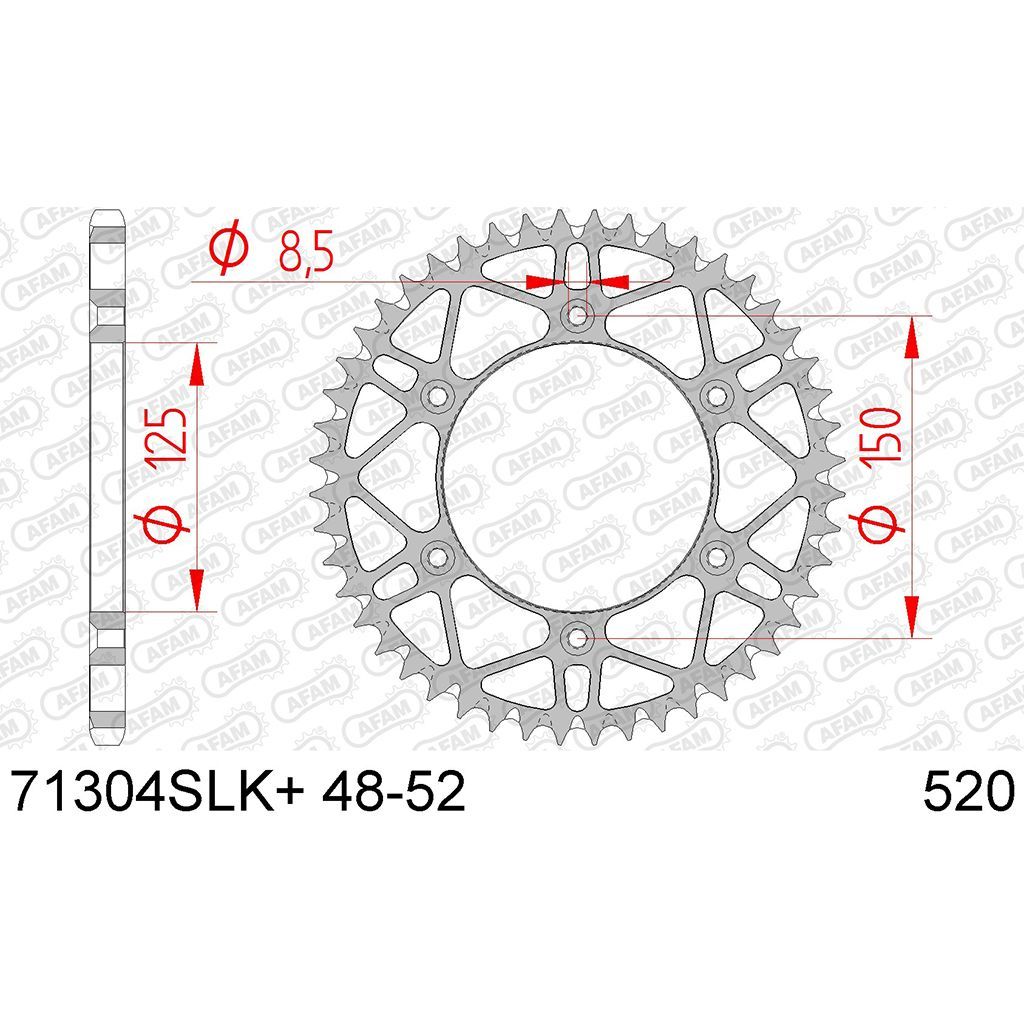

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 49 T - a71304slk.49
• Gear ratio front sprocket-chain-rear sprocket: 13-118-49

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical data:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-32515

Fits

KTM 251 - 500 cc SX-F 450 Factory Edition 4T 2020
