DID chain kit for KTM SX-F 505 Racing 07-08 520 VX3 chain kit

DID Chain Kit for KTM SX-F 505 Racing 07-08 520 VX3 Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

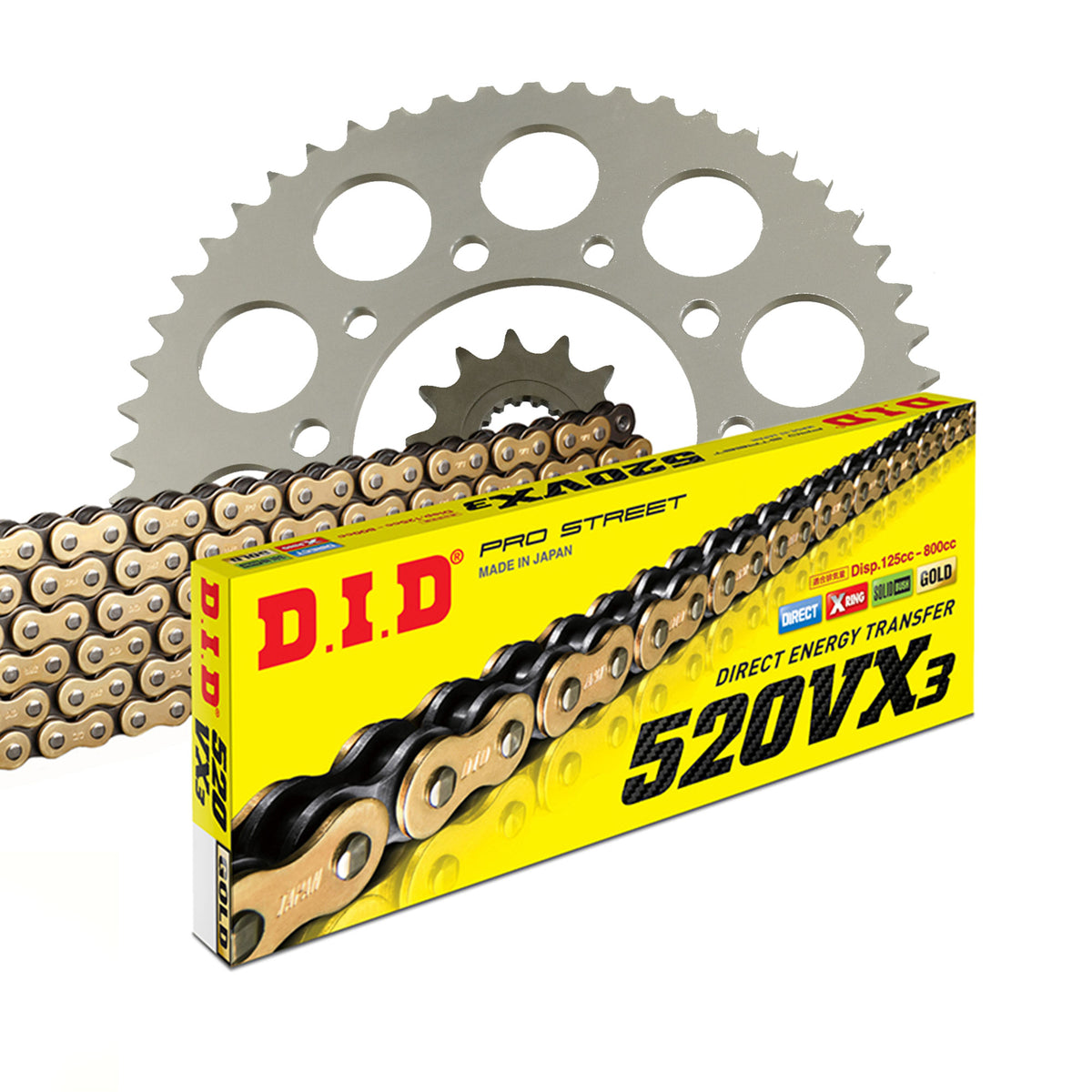

Components of the chain kit KTM SX-F 505 Racing 4T 2007-2008

• Front sprocket: AFAM front sprocket #520 14 teeth - a73301.14

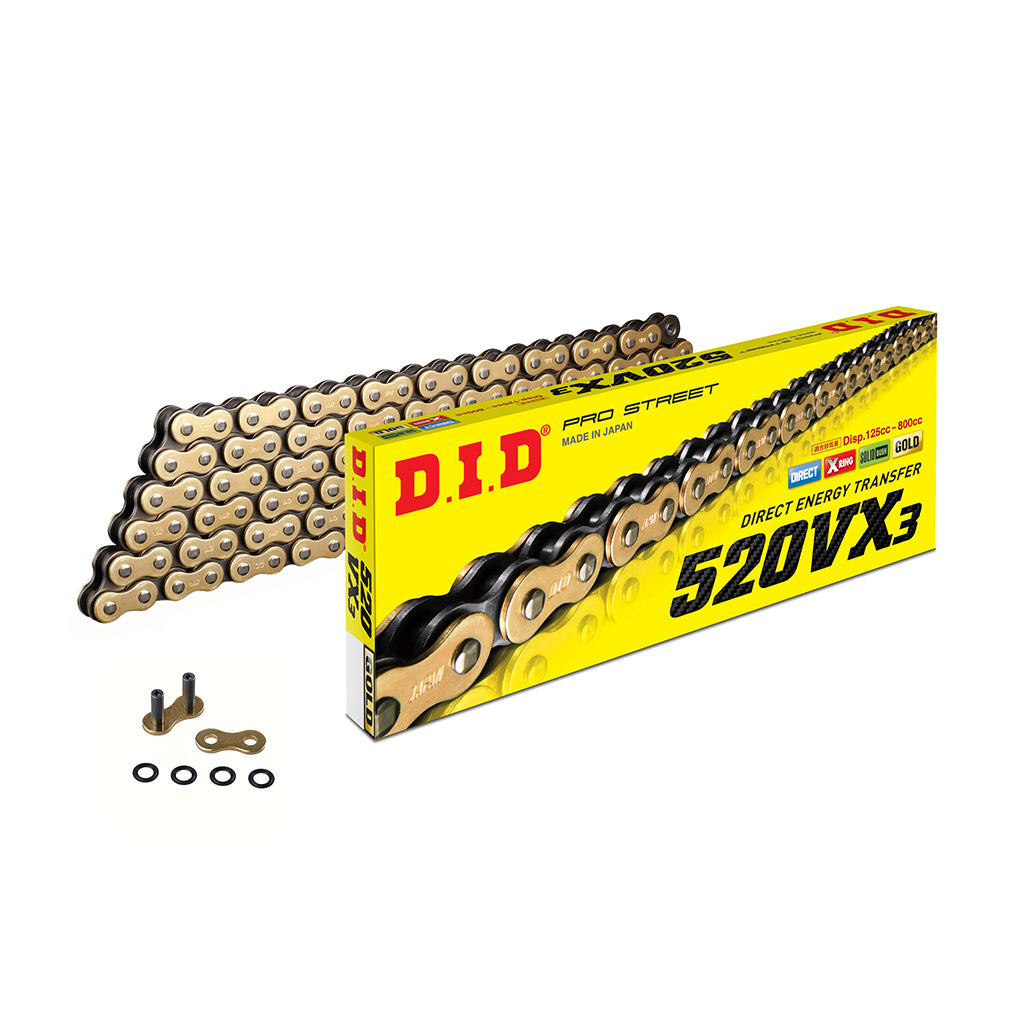

• Chain: DID chain 520 VX3 G&B 118 with rivet link - d520vx3-118

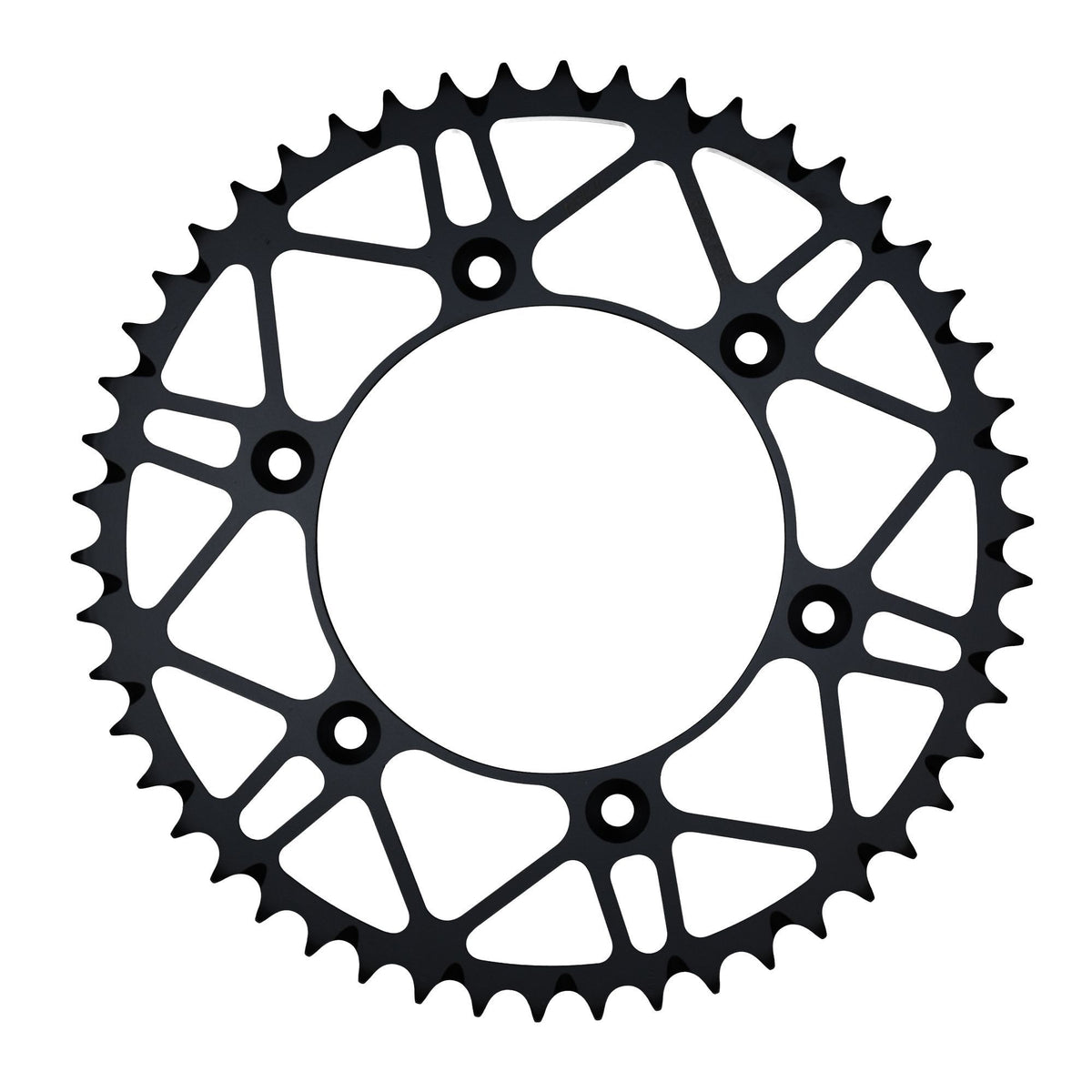

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 52 T - a71304slk.52
• Gear ratio front sprocket-chain-rear sprocket: 14-118-52

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-27556

Suitable for

KTM 501 - 750 cc SX-F 505 Racing 4T 2007
KTM 501 - 750 cc SX-F 505 Racing 4T 2008
