DID chain kit for KTM XC 525 Quad 08-11 520 ZVMX chain kit

DID Chain Kit for KTM XC 525 Quad 08-11 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the KTM XC 525 Quad 2008-2011 chain kit

• Front sprocket: AFAM sprocket #520 15 teeth - a73301.15
• Chain: DID chain 520 ZVM-X G&G 96 with rivet link - d6252029096

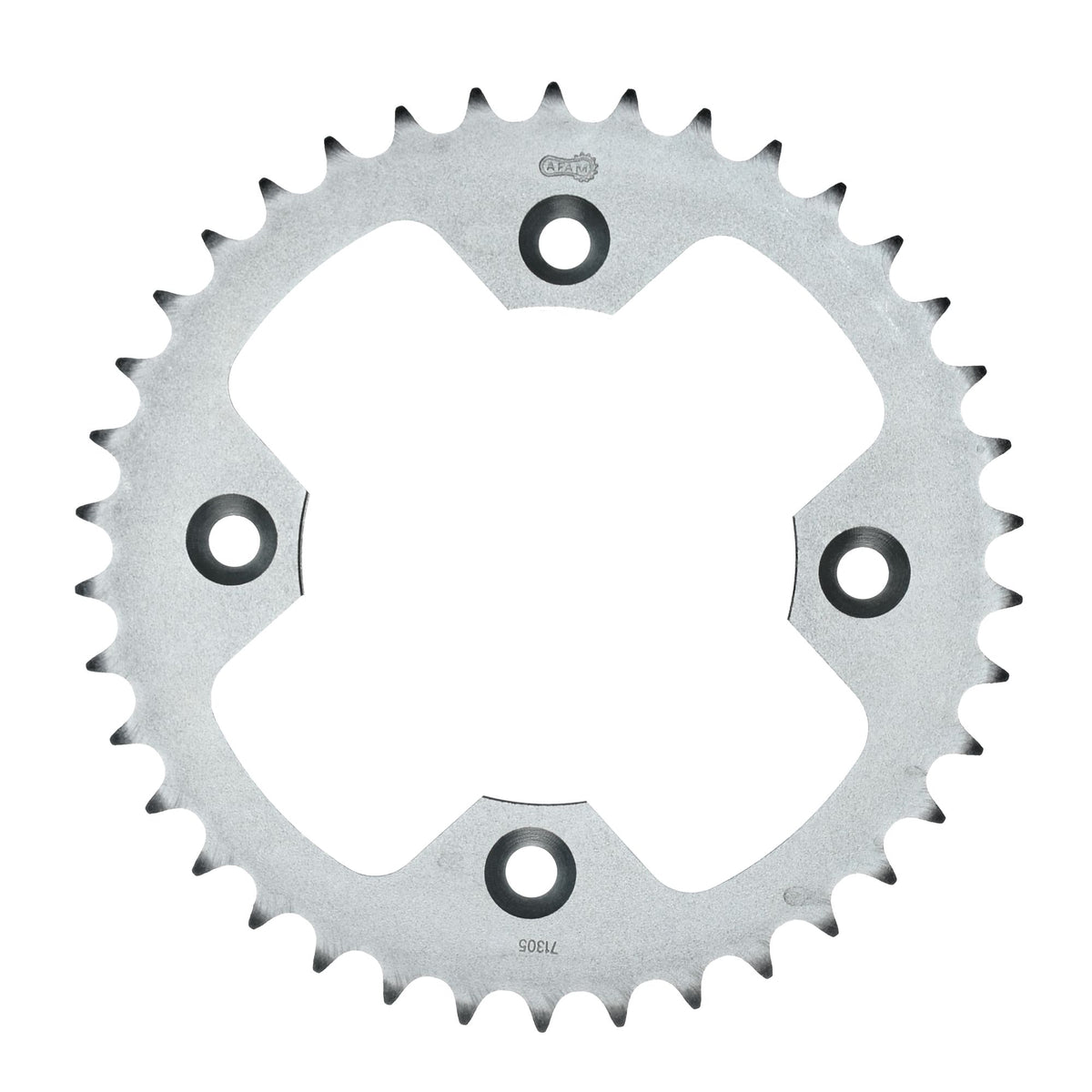

• Rear sprocket: AFAM rear sprocket STEEL #520 37 teeth - a71305.37
• Gear ratio front sprocket-chain-rear sprocket: 15-96-37

DID 520 ZVM-X

Extra reinforced chain, versatile application area
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical specifications:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-35051

Suitable for

KTM 501 - 750 cc XC 525 Quad 2008
KTM 501 - 750 cc XC 525 Quad 2009
KTM 501 - 750 cc XC 525 Quad 2010
KTM 501 - 750 cc XC 525 Quad 2011
