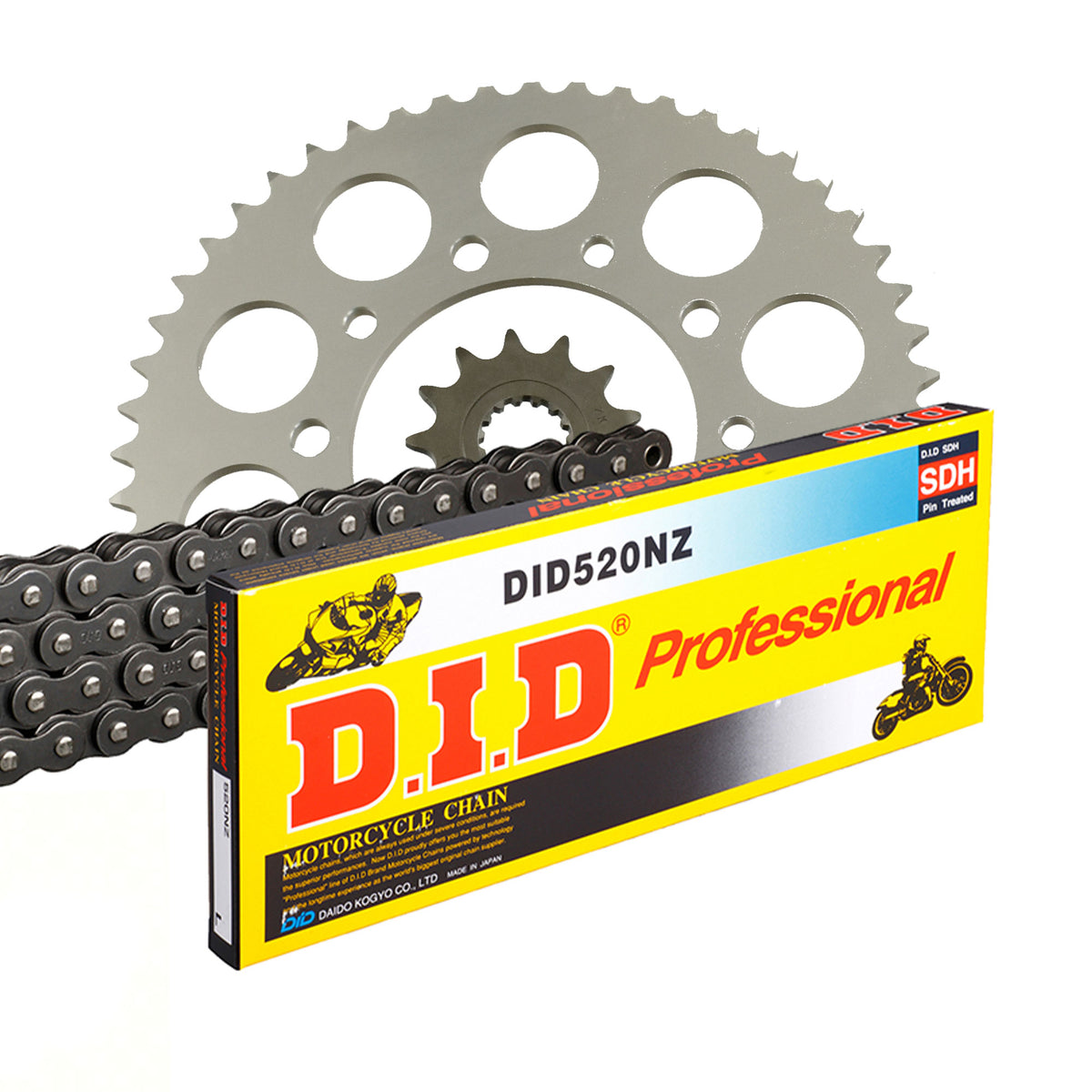

DID chain kit for KTM XC-W 125 17-19 520 NZ chain kit

DID Chain Kit for KTM XC-W 125 17-19 520 NZ Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit KTM XC-W 125 2T 2017-2019

• Front sprocket: AFAM sprocket #520 13 teeth - a73301.13
• Chain: DID chain 520 NZ 118 with clip master link - d6252001118
• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 50 T - a71304slk.50
• Gear ratio sprocket-chain-rear sprocket: 13-118-50

DID 520 NZ

Extra reinforced chain
Without O-rings
Color: Black
Application by displacement: up to 250 cc

Technical specifications:
Pitch: 520
Pin length: 18.35 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 410
Tensile strength: 35.80 kN
Weight per 100 links: 1.61 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-40744

Fits

KTM 101 - 125 cc XC-W 125 2T 2017
KTM 101 - 125 cc XC-W 125 2T 2018
KTM 101 - 125 cc XC-W 125 2T 2019
