DID chain set for KTM XC-W 150 17-19 520 VX3 chain kit

DID chain kit for KTM XC-W 150 17-19 520 VX3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

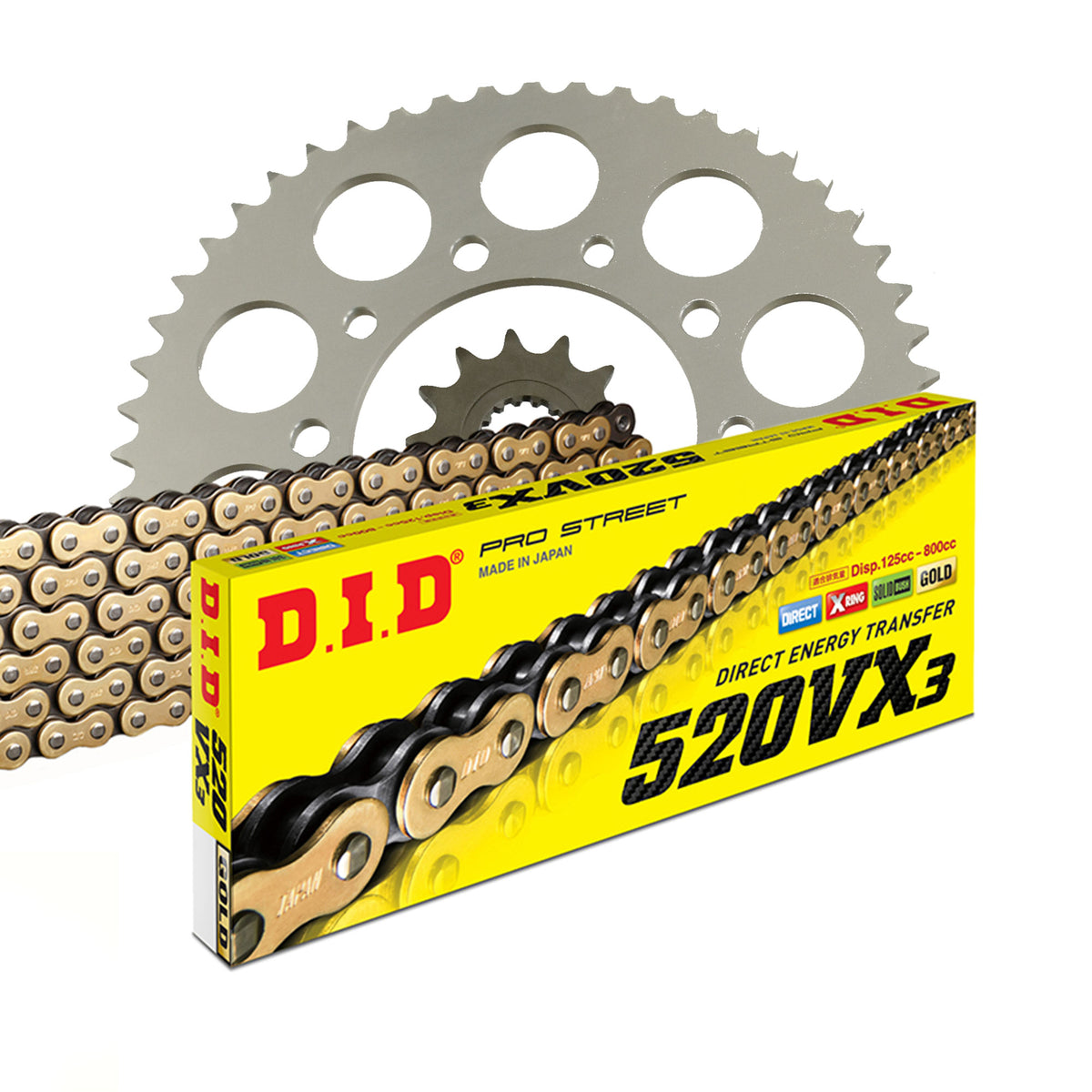

Components of the KTM XC-W 150 2T 2017-2019 chain kit

• Front sprocket: AFAM sprocket #520 SC 13 teeth - a73301.13sc

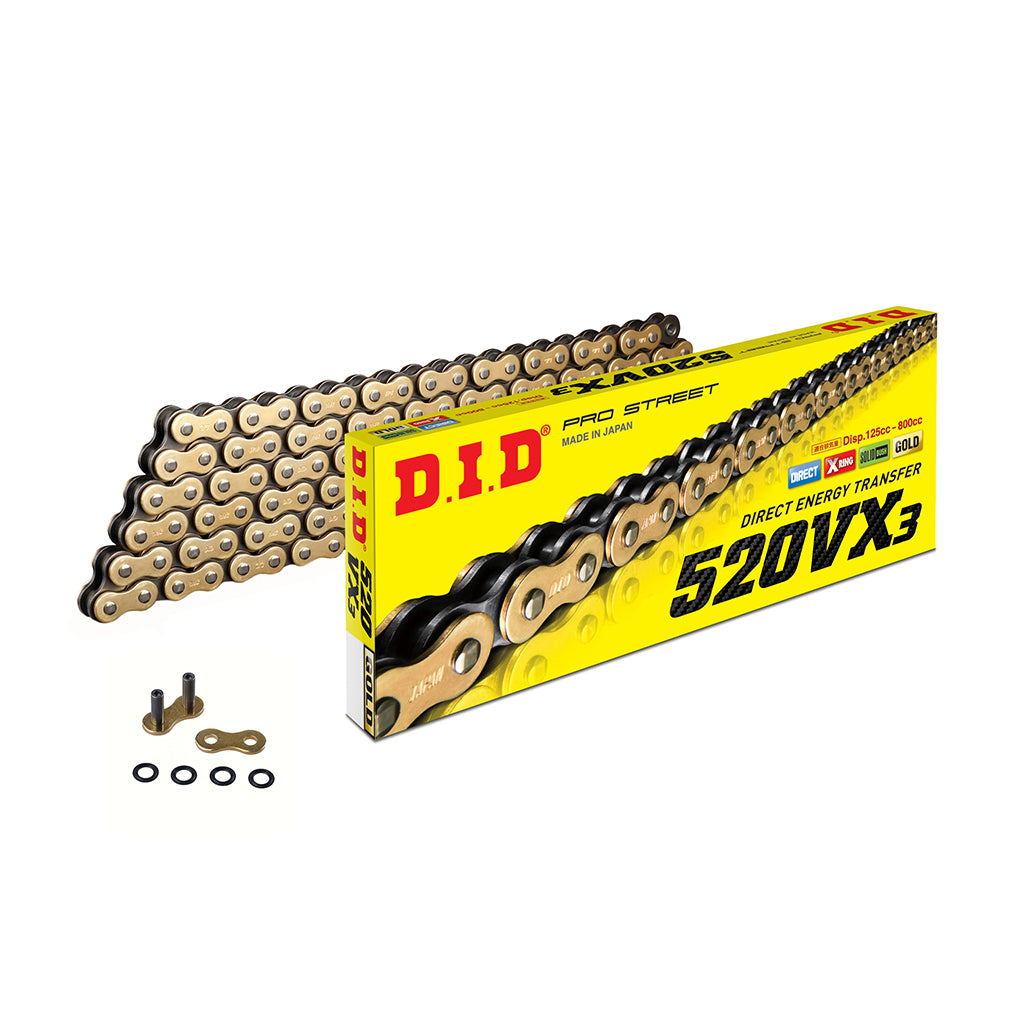

• Chain: DID chain 520 VX3 G&B 118 with rivet connecting link - d520vx3-118

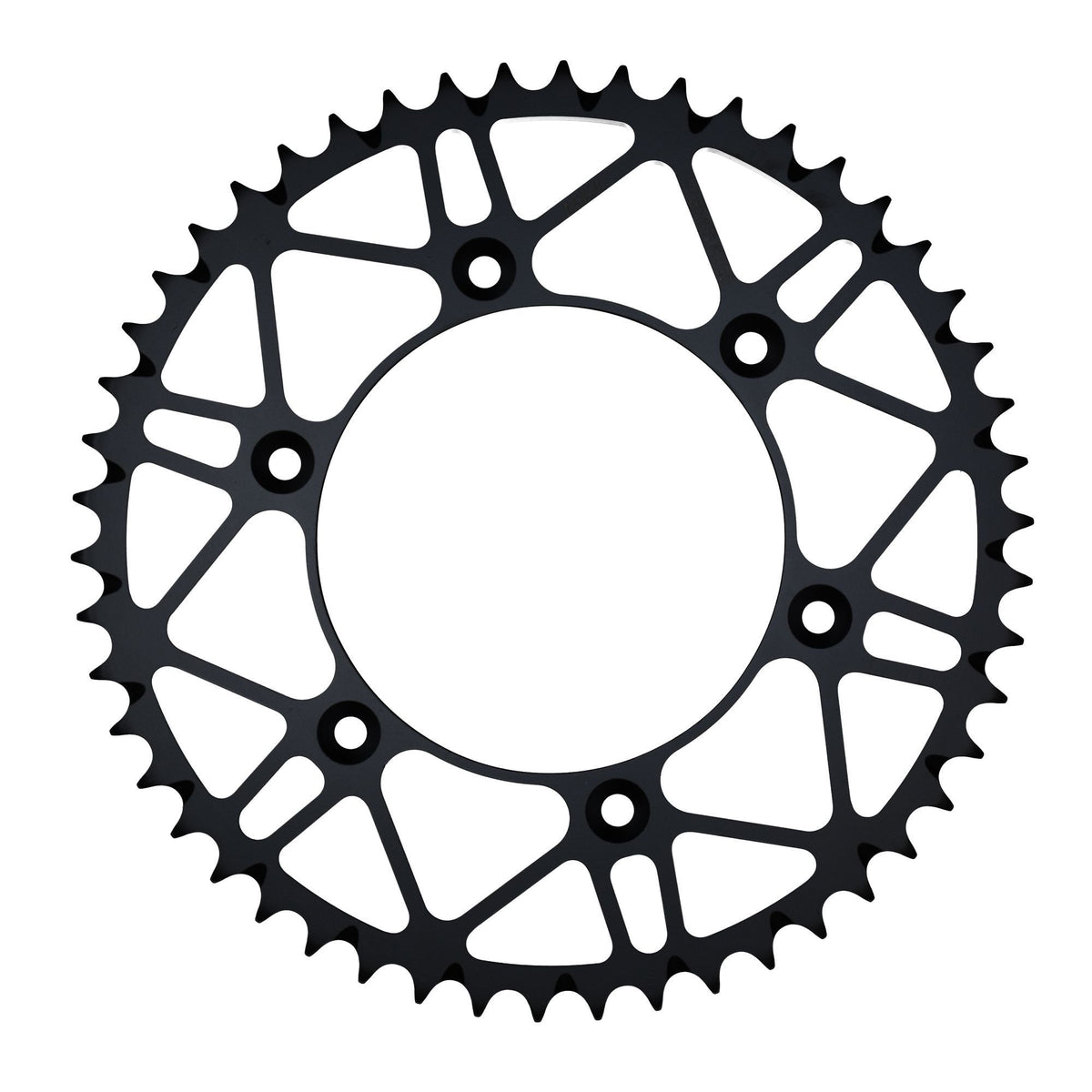

• Rear sprocket: AFAM steel sprocket #520 with mud grooves 50 T - a71304slk.50
• Gear ratio front sprocket-chain-rear sprocket: 13-118-50

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical data:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-58055

Suitable for

KTM 126 - 250 cc XC-W 150 2T 2017
KTM 126 - 250 cc XC-W 150 2T 2018
KTM 126 - 250 cc XC-W 150 2T 2019
