DID chain set for Kymco Naked 125 07-12 428 HD chain kit

DID Chain Kit for Kymco Naked 125 07-12 428 HD Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Kymco Naked 125 2007-2012

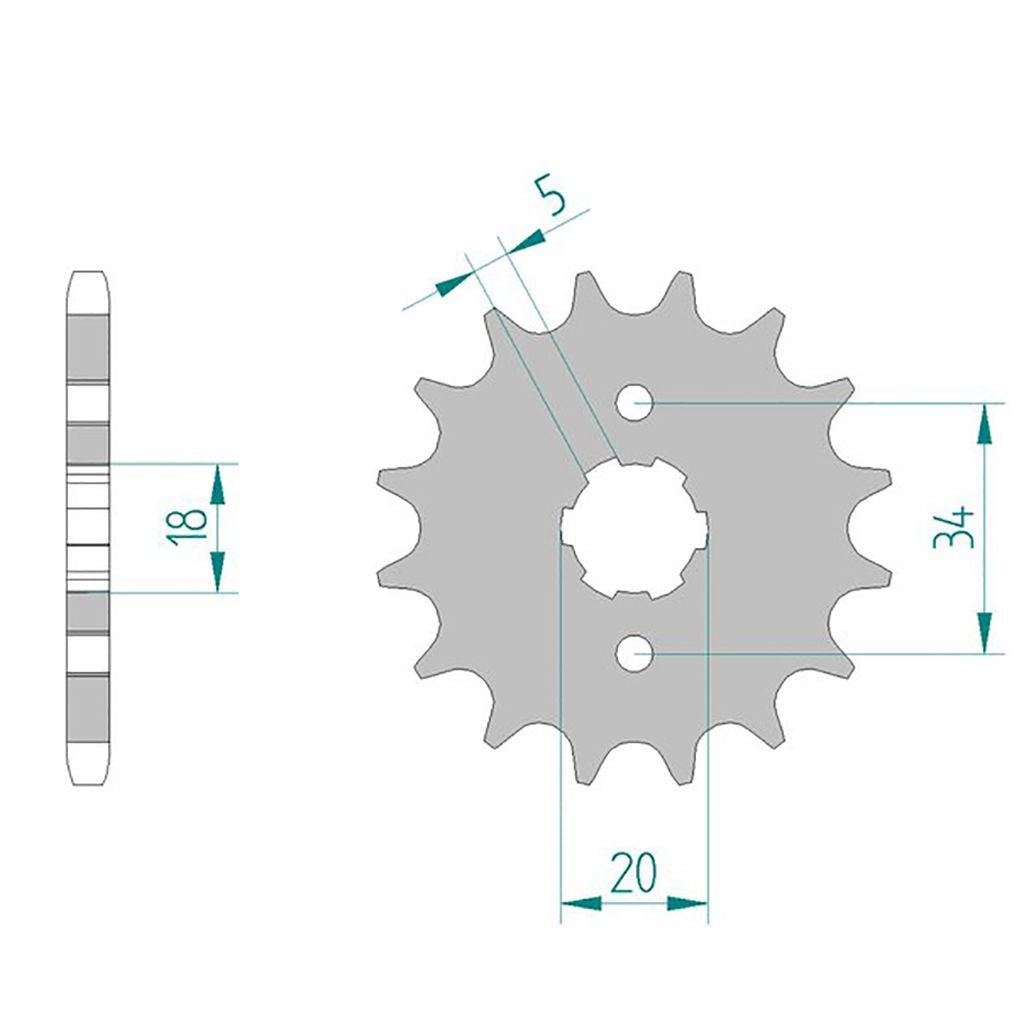

• Sprocket: AFAM sprocket #428 15 teeth - a26200.15
• Chain: DID chain 428 HD 130 with clip connecting link - d6242801130

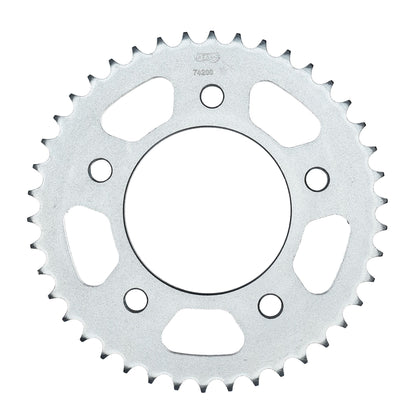

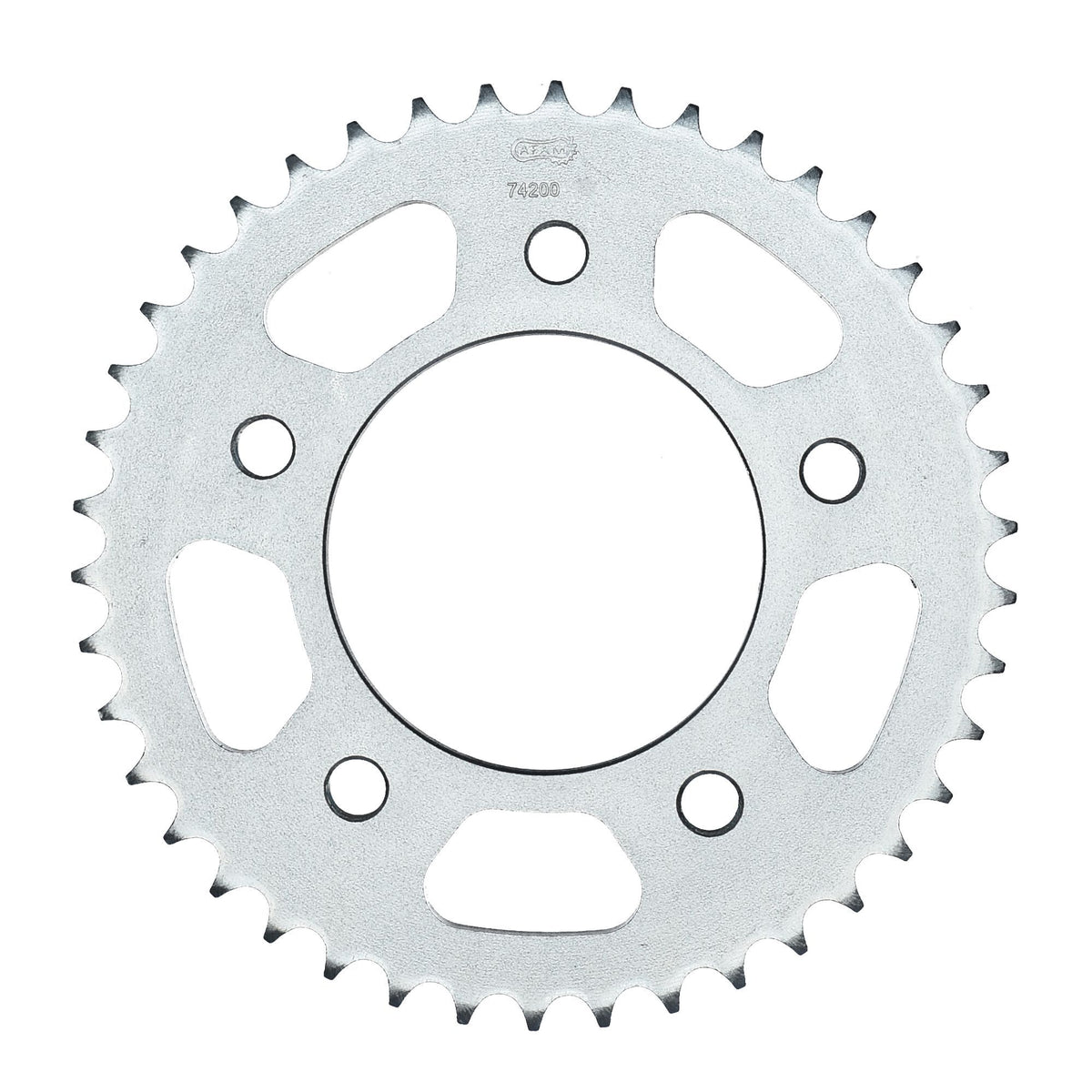

• Rear sprocket: AFAM rear sprocket STEEL #428 42 teeth - a74200.42
• Gear ratio sprocket-chain-rear sprocket: 15-130-42

DID 428 HD

Lightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical specifications:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Mileage index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-44549

Suitable for

Kymco 101 - 125 ccm Naked 125 2007
Kymco 101 - 125 ccm Naked 125 2008
Kymco 101 - 125 ccm Naked 125 2009
Kymco 101 - 125 ccm Naked 125 2010
Kymco 101 - 125 ccm Naked 125 2011
Kymco 101 - 125 ccm Naked 125 2012
