DID chain set for Kymco Pulsar 125 01-04 428 HD chain kit

DID chain set for Kymco Pulsar 125 01-04 428 HD chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Kymco Pulsar 125 RJ25CB 2001-2004

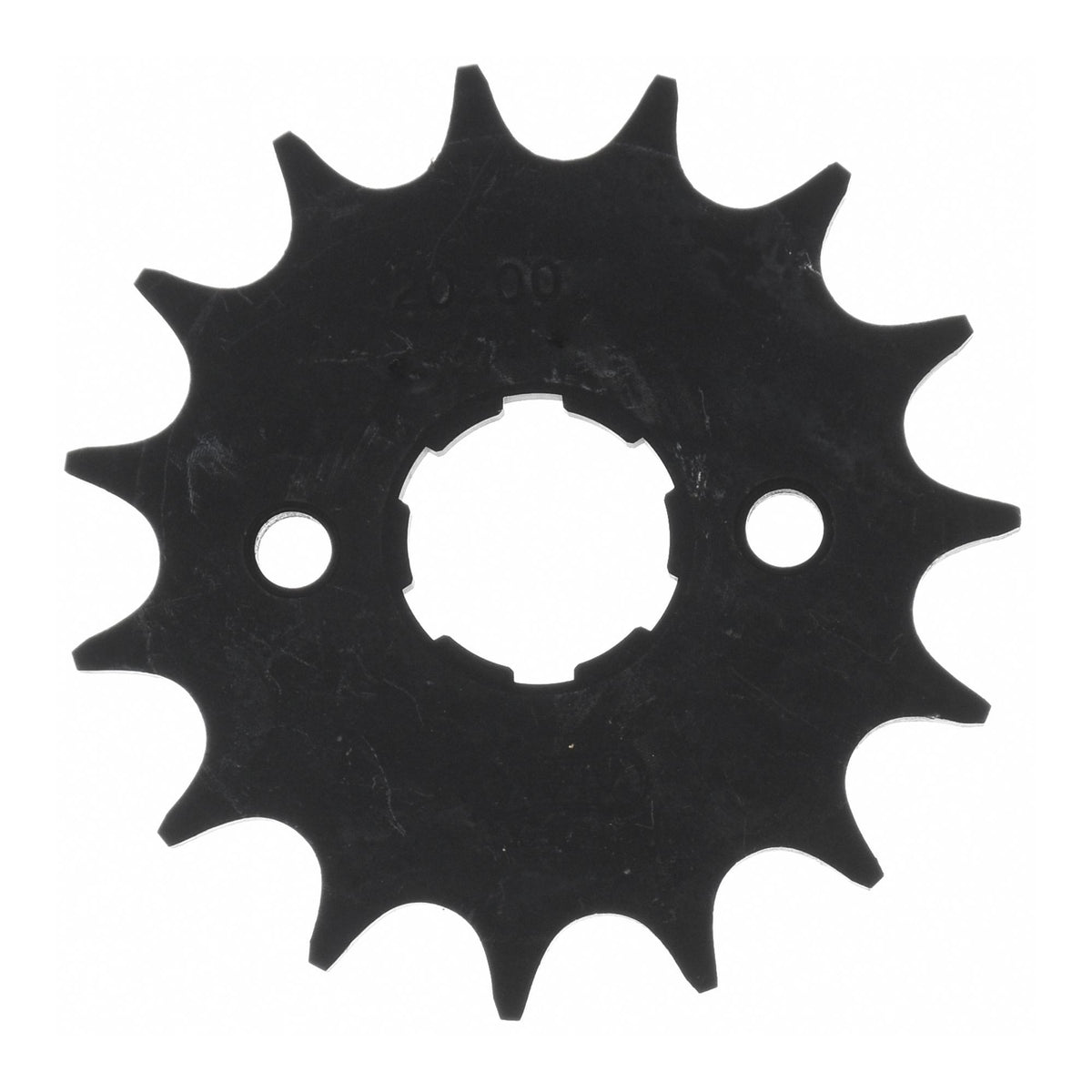

• Front sprocket: AFAM front sprocket #428 15 teeth - a20200.15
• Chain: DID chain 428 HD 126 with clip master link - d6242801126
• Rear sprocket: AFAM rear sprocket STEEL #428 39 teeth - a10201.39
• Transmission ratio front sprocket-chain-rear sprocket: 15-126-39

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without O-rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-39442

Suitable for

Kymco 101 - 125 cc Pulsar 125 RJ25CB 2001
Kymco 101 - 125 cc Pulsar 125 RJ25CB 2002
Kymco 101 - 125 cc Pulsar 125 RJ25CB 2003
Kymco 101 - 125 cc Pulsar 125 RJ25CB 2004
