DID chain kit for Kymco Quannon 125 07-11 428 HD chain kit

DID chain kit for Kymco Quannon 125 07-11 428 HD chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used only to indicate compatibility!

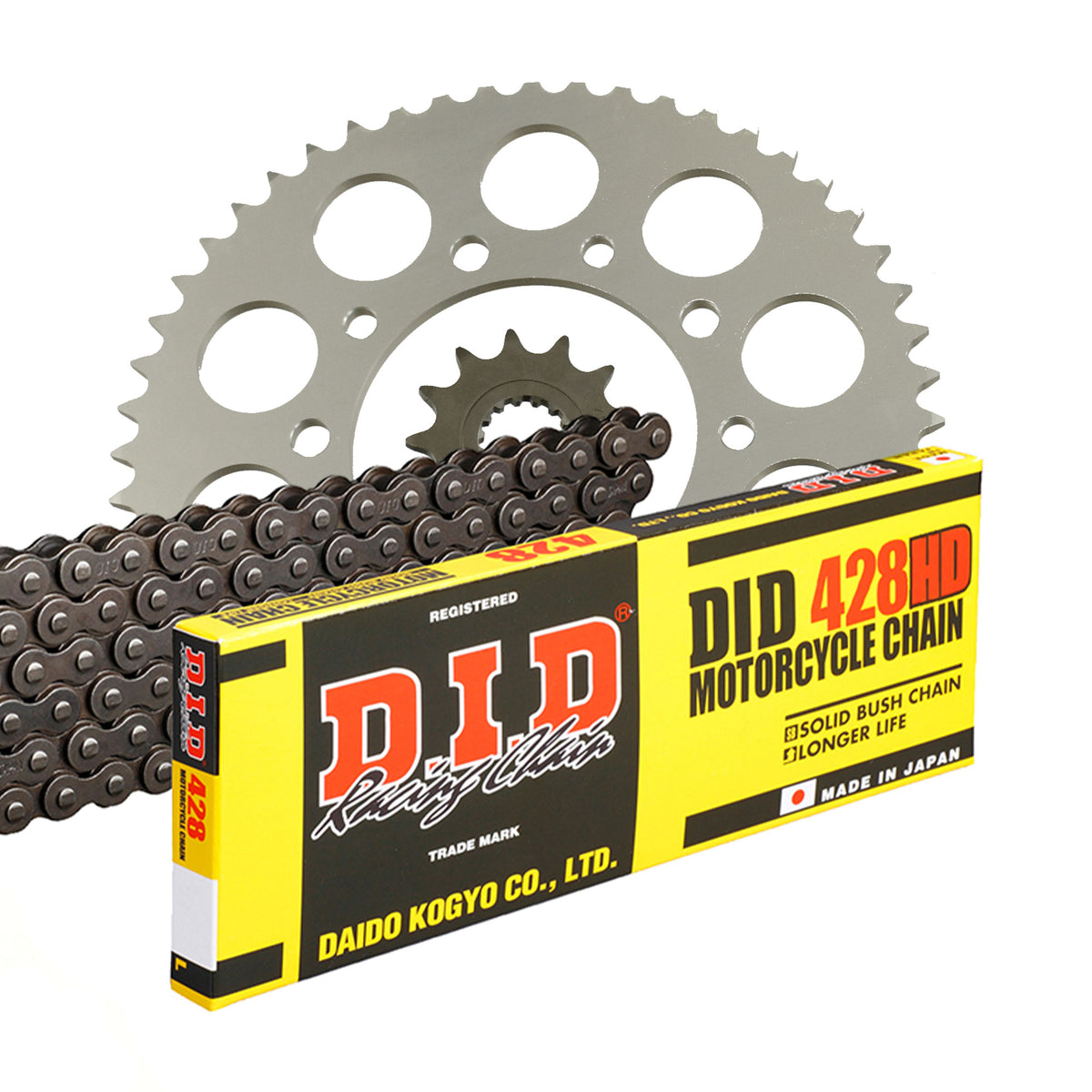

Components of the chain kit Kymco Quannon 125 RL25BA 2007-2011

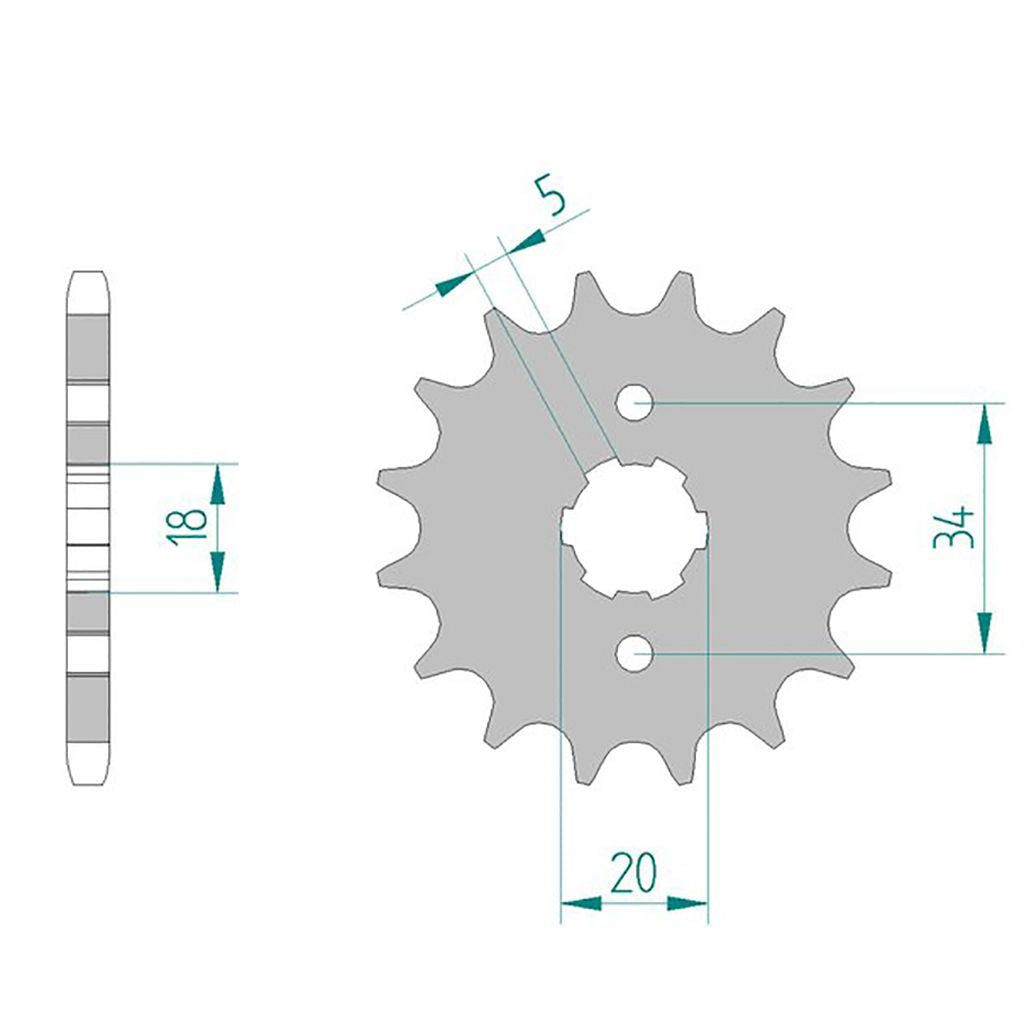

• Sprocket: AFAM sprocket #428 15 teeth - a26200.15

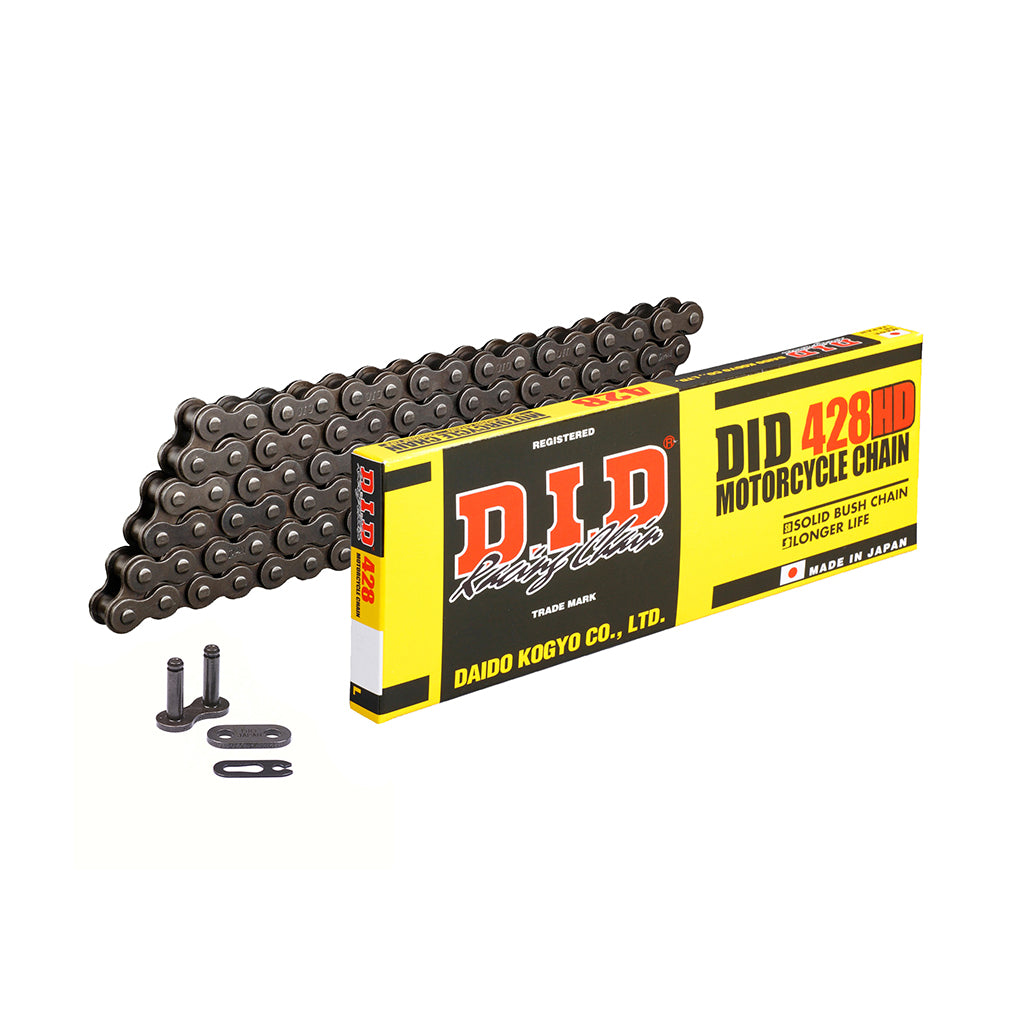

• Chain: DID chain 428 HD 130 with clip connecting link - d6242801130

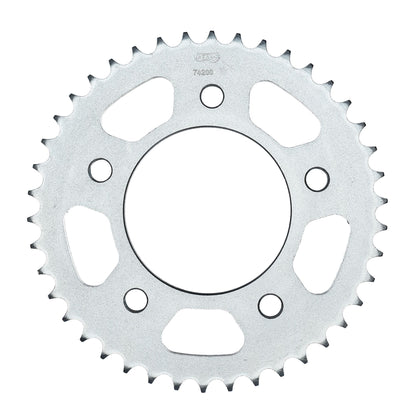

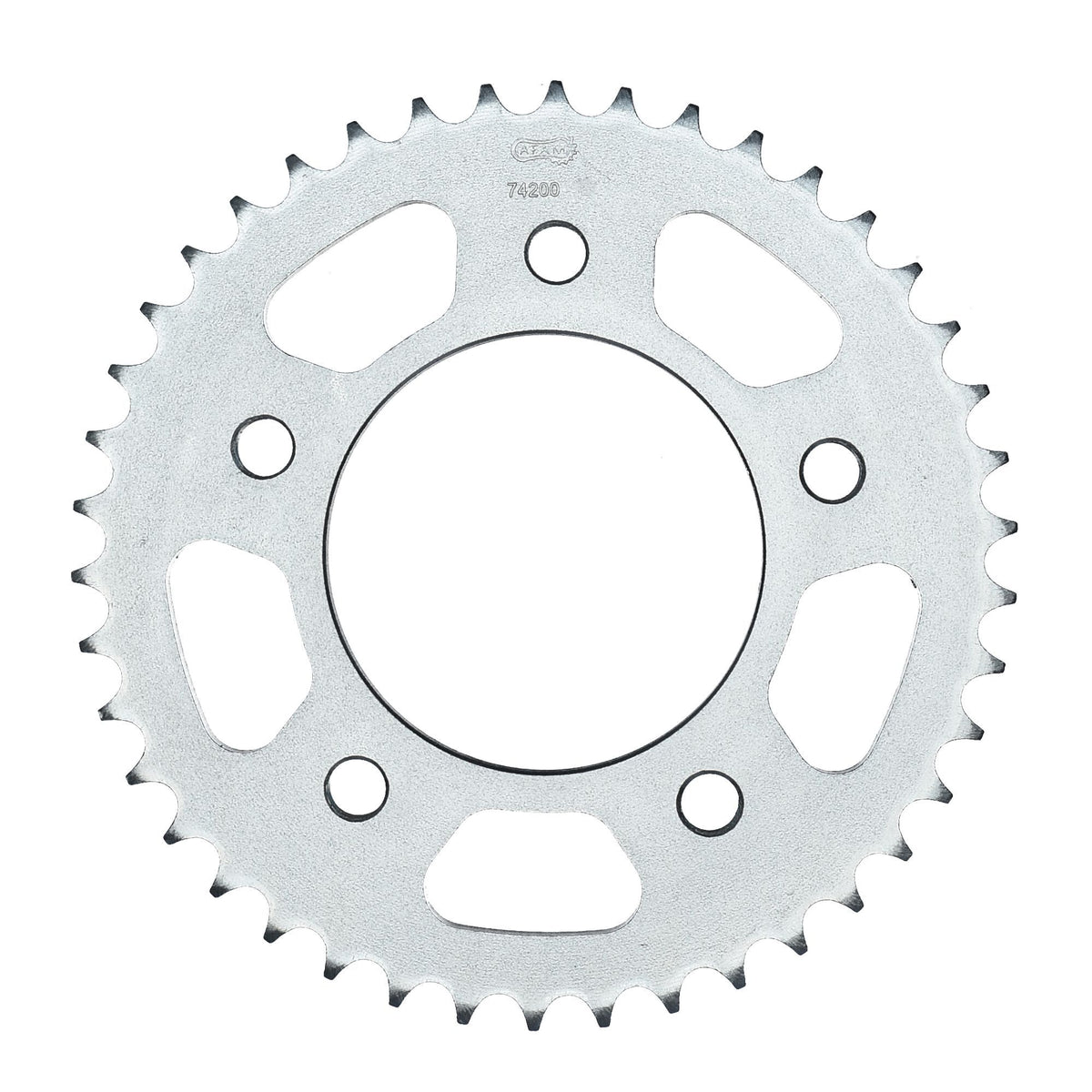

• Chain wheel: AFAM chain wheel STEEL #428 42 teeth - a74200.42
• Gear ratio sprocket-chain-chain wheel: 15-130-42

DID 428 HD

Slightly reinforced chain and successor to the proven 428 H
Without sealing rings
Color: Black

Technical data:
Pitch: 428
Pin length: 18.9 mm
Roller Ø: 8.5 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 100
Tensile strength: 23.40 kN
Weight per 100 links: 1.0 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-39445

Suitable for

Kymco 101 - 125 ccm Quannon 125 RL25BA 2007
Kymco 101 - 125 ccm Quannon 125 RL25BA 2008
Kymco 101 - 125 ccm Quannon 125 RL25BA 2009
Kymco 101 - 125 ccm Quannon 125 RL25BA 2010
Kymco 101 - 125 ccm Quannon 125 RL25BA 2011
