DID chain set for Kymco Quannon 125 07-11 428 VX chain kit

DID chain kit for Kymco Quannon 125 07-11 428 VX chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

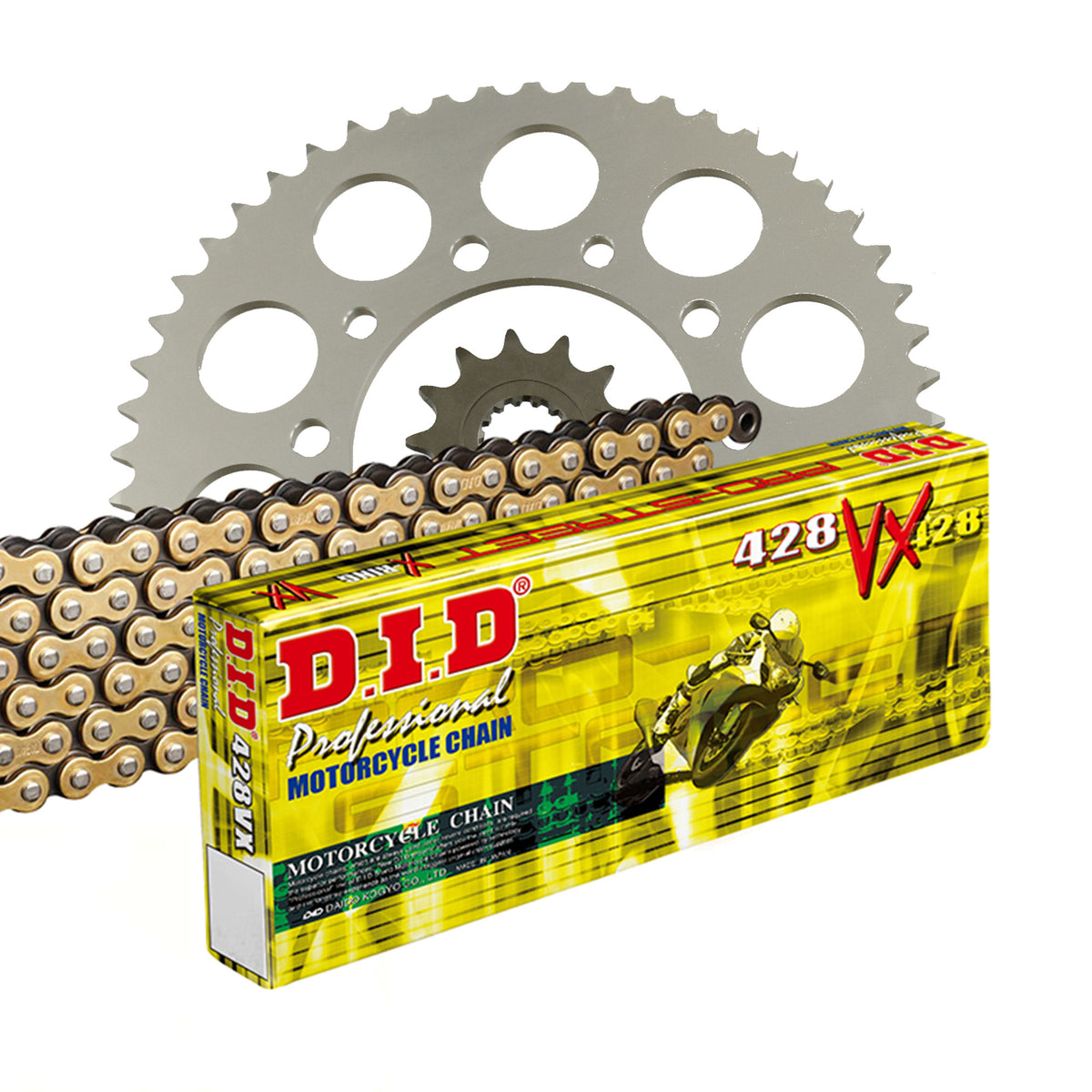

Components of the chain kit Kymco Quannon 125 RL25BA 2007-2011

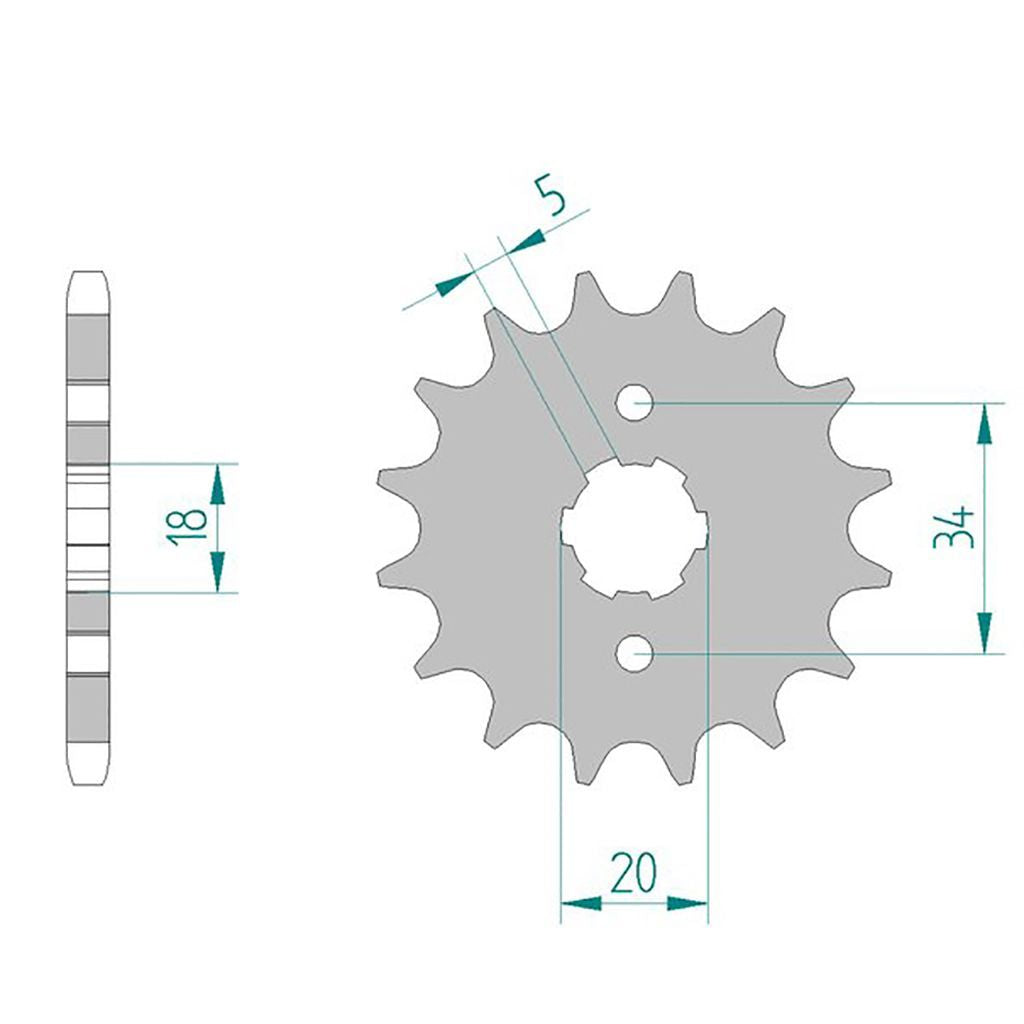

• Sprocket: AFAM sprocket #428 15 teeth - a26200.15

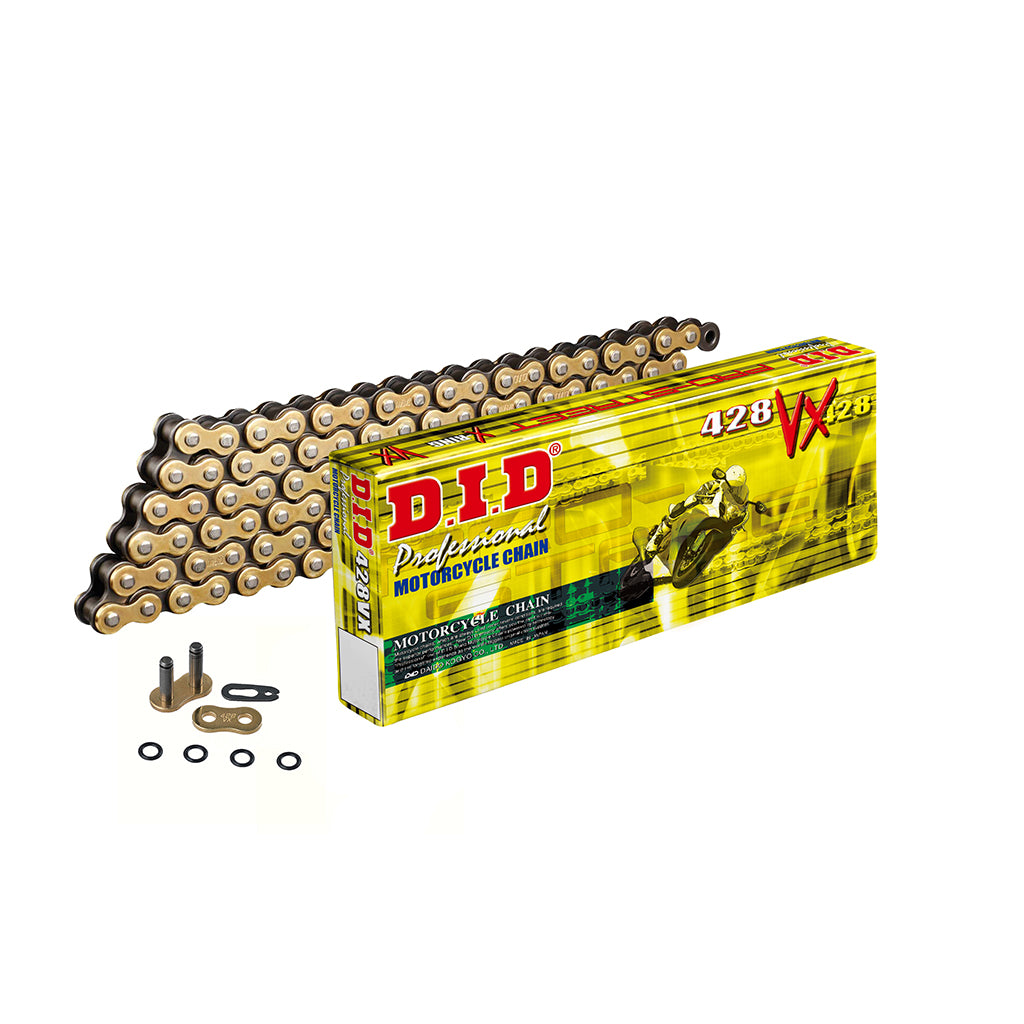

• Chain: DID chain 428 VX G&B 130 with clip master link - d6242825130

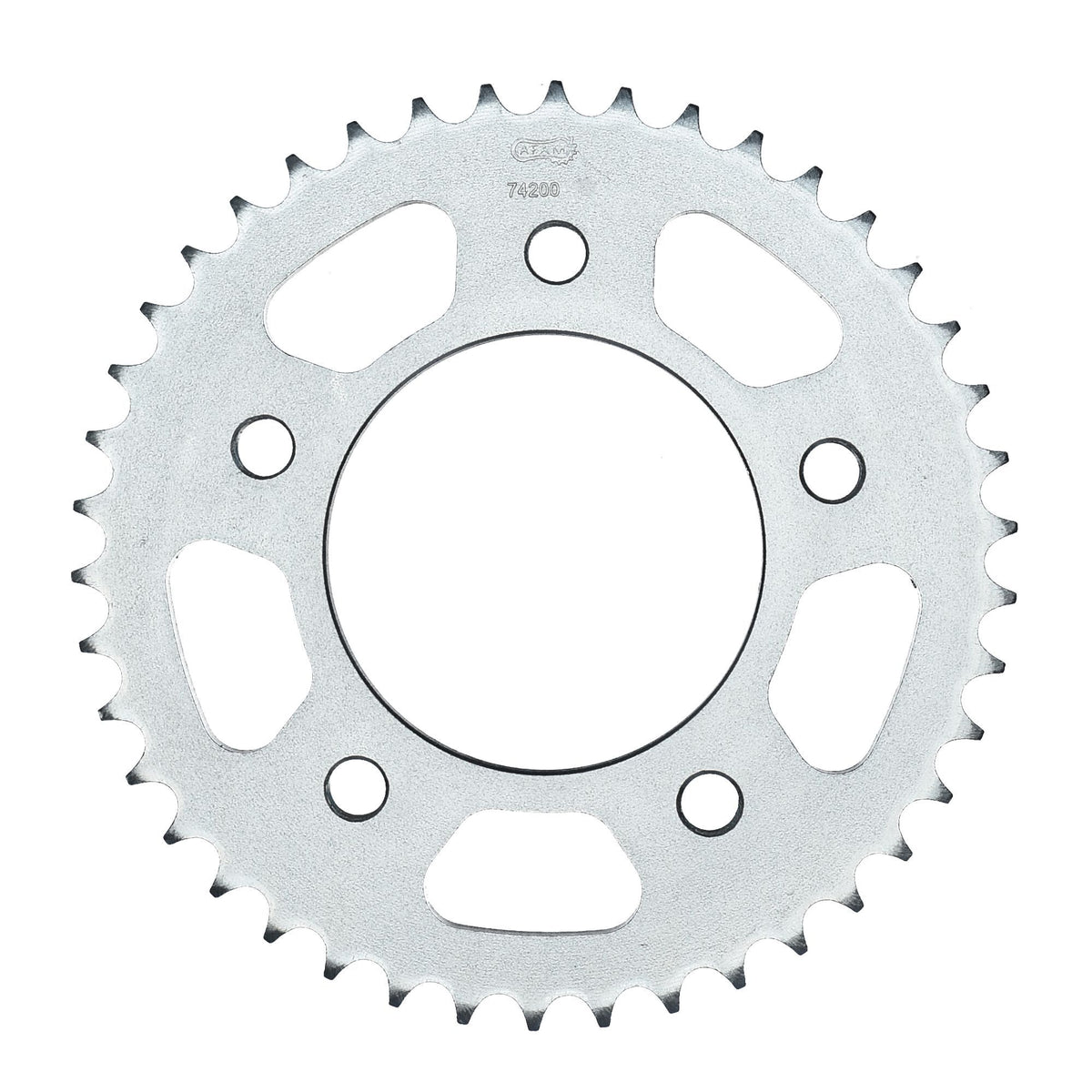

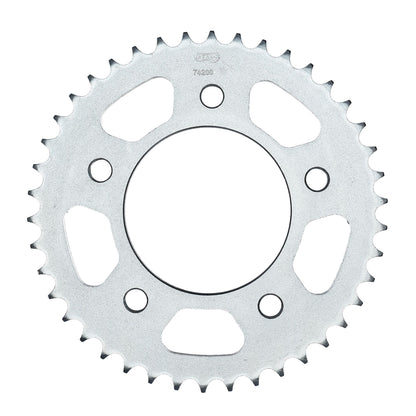

• Chain wheel: AFAM chain wheel STEEL #428 42 teeth - a74200.42
• Transmission ratio sprocket-chain-chain wheel: 15-130-42

DID 428 VX

Very good quality in the 428 range
X-ring chain
Color: Gold/Black

Technical data:
Pitch: 428
Pin length: 20.65 mm
Roller Ø: 8.6 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear index: 2700
Tensile strength: 33.00 kN
Weight per 100 links: 1.21 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-29874

Fits for

Kymco 101 - 125 ccm Quannon 125 RL25BA 2007
Kymco 101 - 125 ccm Quannon 125 RL25BA 2008
Kymco 101 - 125 ccm Quannon 125 RL25BA 2009
Kymco 101 - 125 ccm Quannon 125 RL25BA 2010
Kymco 101 - 125 ccm Quannon 125 RL25BA 2011
