DID chain set for Laverda SF 750 74-77 530 ZVM-X2 chain kit

DID chain kit for Laverda SF 750 74-77 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

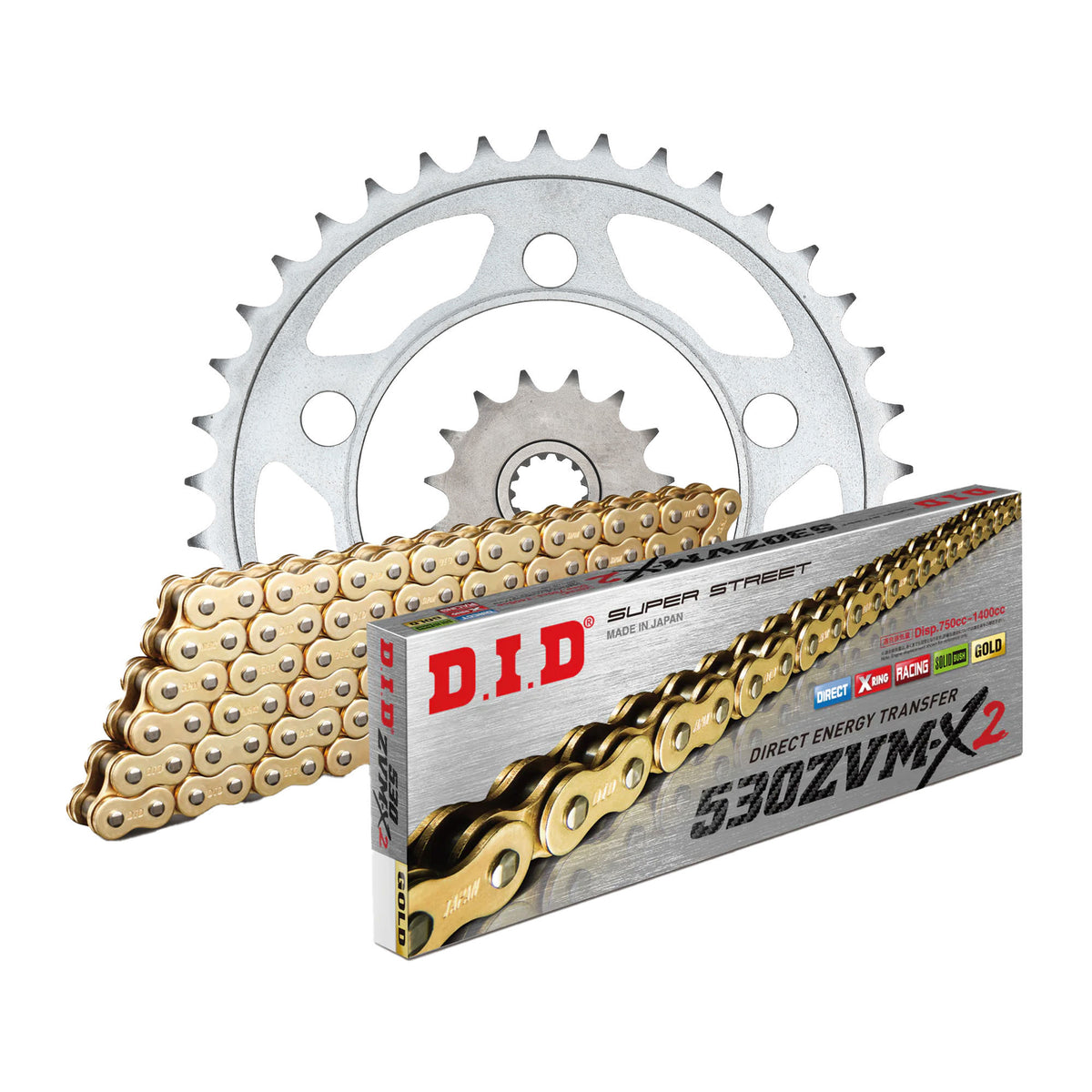

Components of the chain kit Laverda SF 750 1974-1977

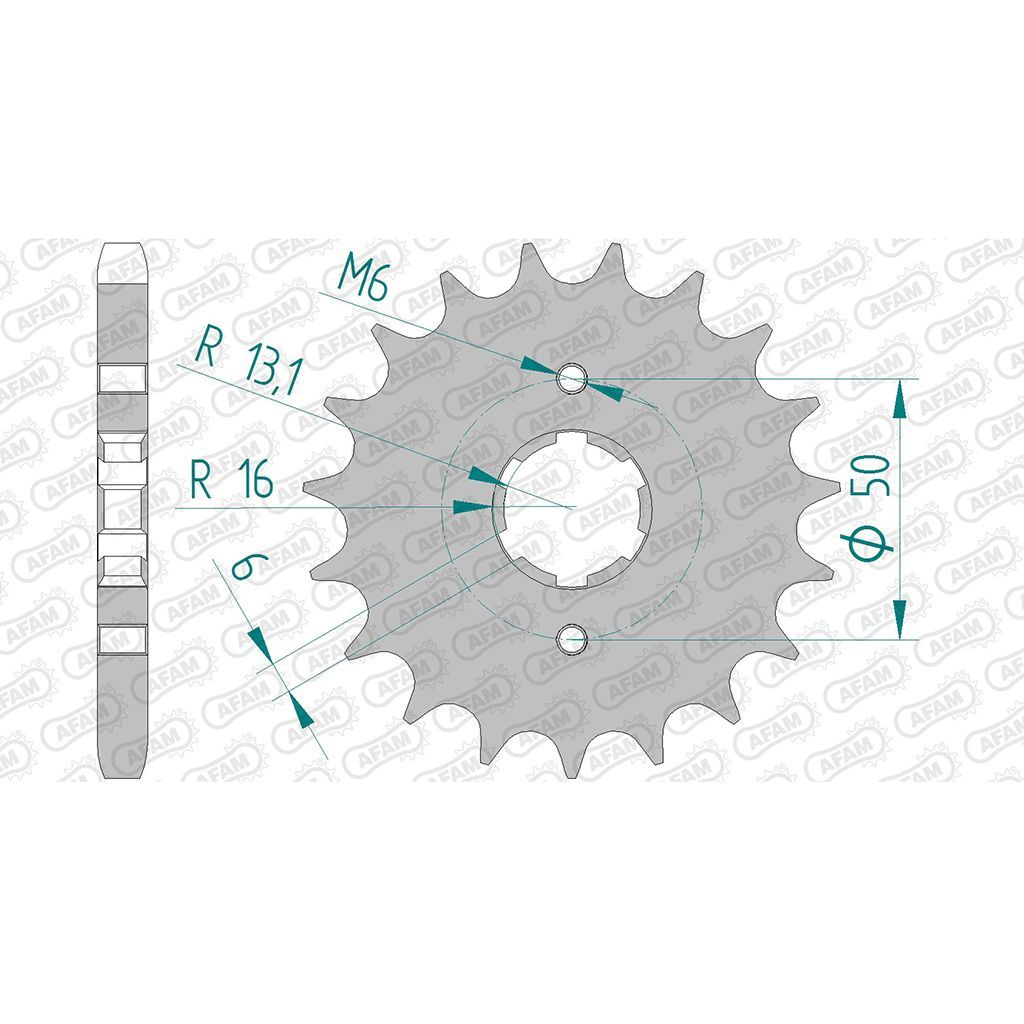

• Front sprocket: AFAM front sprocket #530 19 teeth - a94803.19
• Chain: DID chain 530 ZVM-X2 G&G 106 w. rivet link - d530zvmx2.gg.106

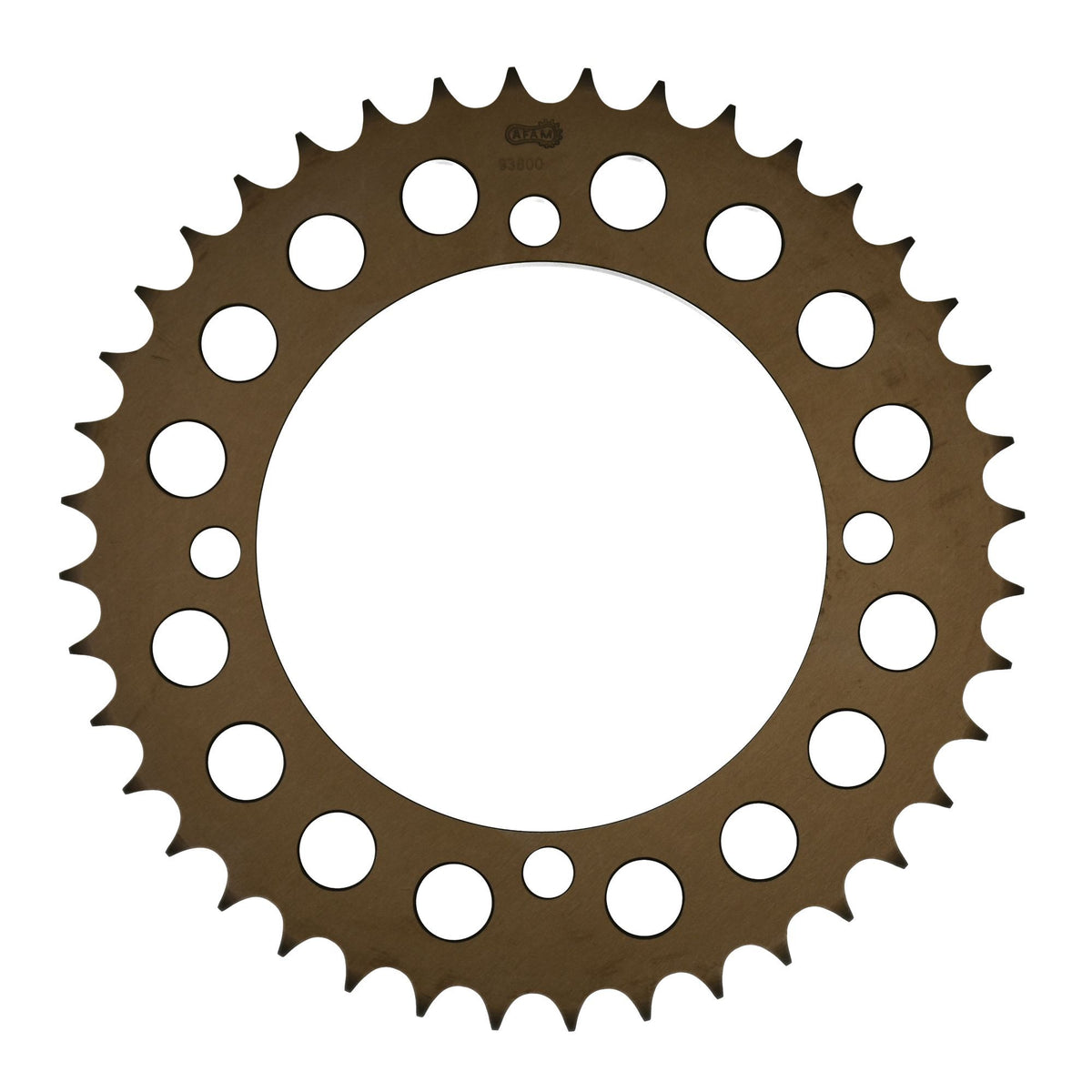

• Rear sprocket: AFAM rear sprocket ALU #530 40 teeth - a93800.40
• Gear ratio front sprocket-chain-rear sprocket: 19-106-40

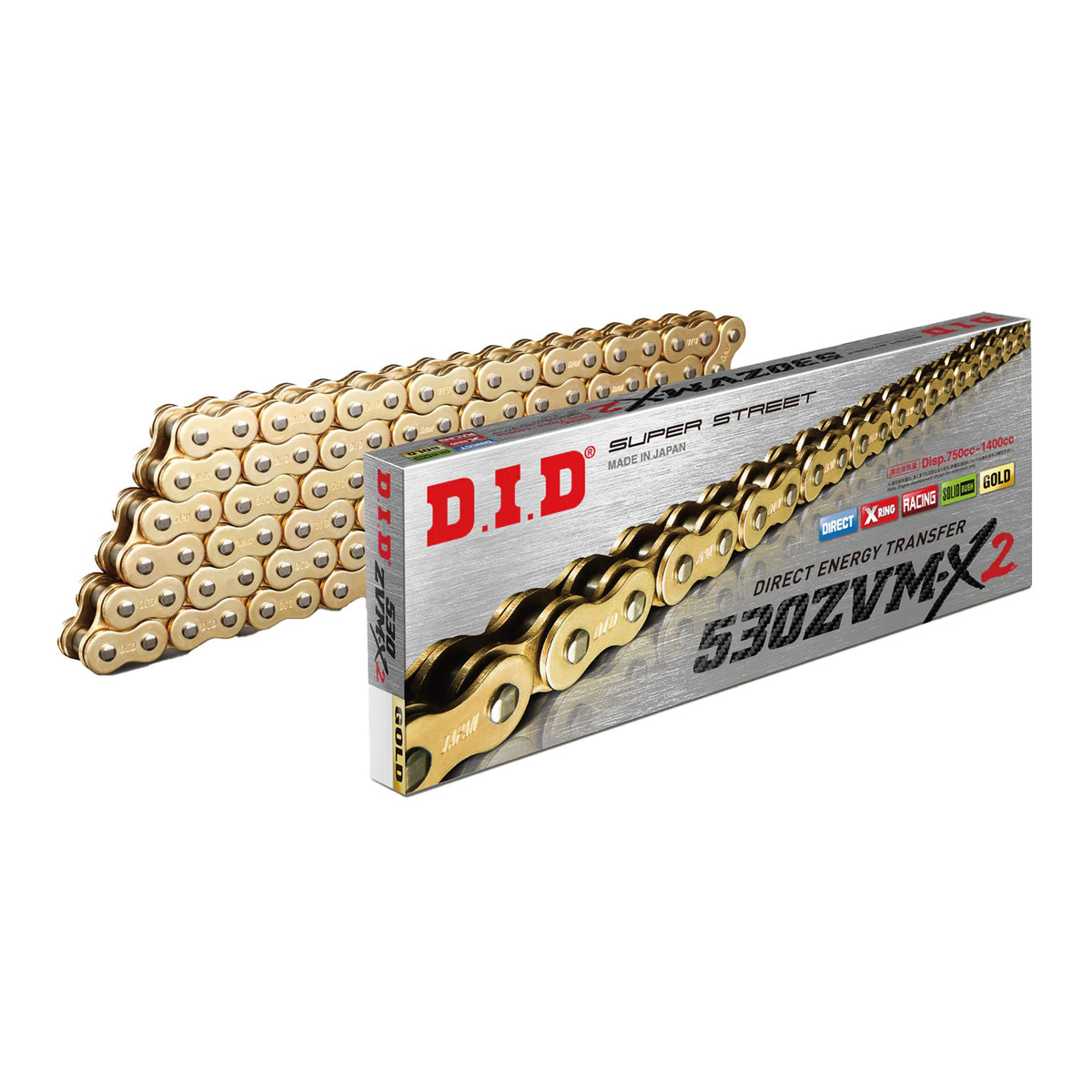

DID 530 ZVM-X2

Extra reinforced chain, versatile range of application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical data:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Item number	KKF-63829

Fits for

Laverda 501 - 750 cc SF 750 1974
Laverda 501 - 750 cc SF 750 1975
Laverda 501 - 750 cc SF 750 1976
Laverda 501 - 750 cc SF 750 1977
