DID chain set for Laverda SFC 1000 (120-degree engine) 85-86 530 ZVM-X2 chain kit

DID chain kit for Laverda SFC 1000 (120 degree engine) 85-86 530 ZVM-X2 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Laverda SFC 1000 (120 degree engine) 1985-1986

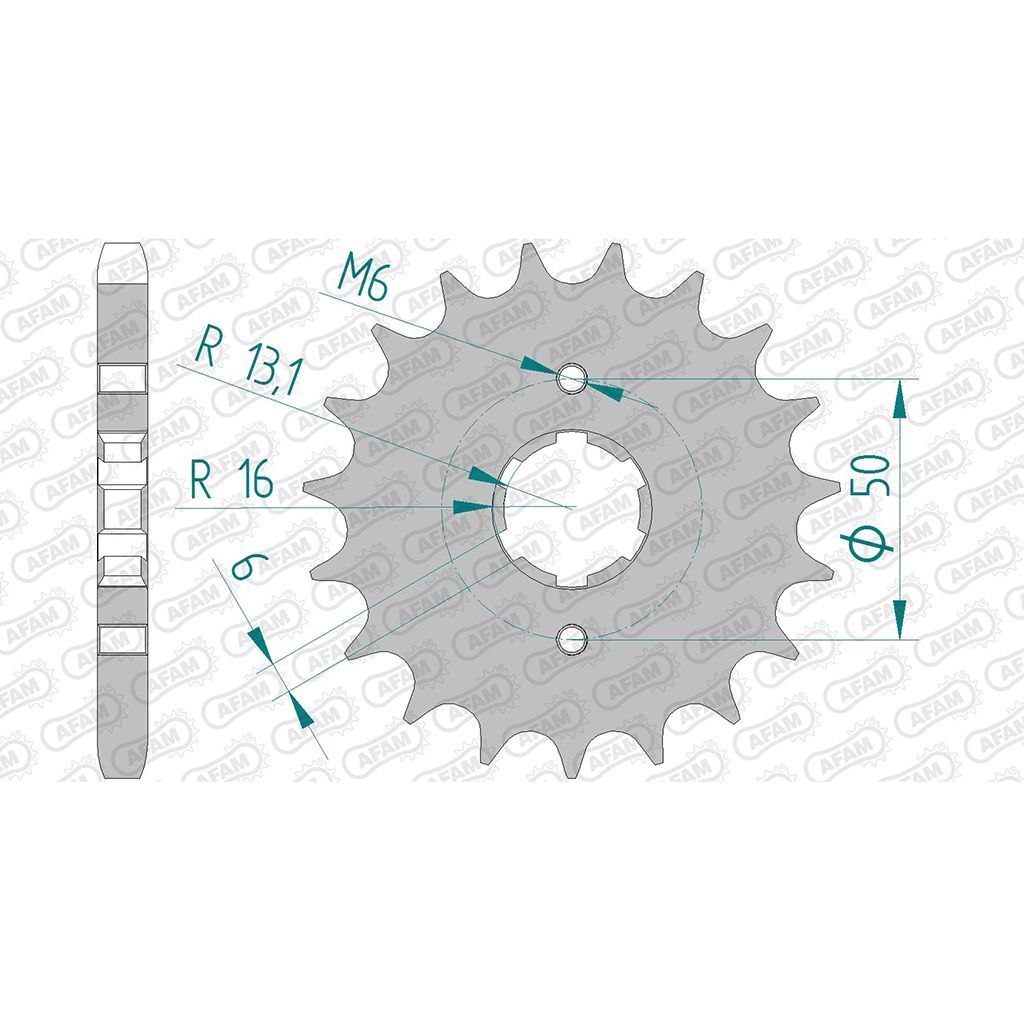

• Sprocket: AFAM sprocket #530 19 teeth - a94803.19
• Chain: DID chain 530 ZVM-X2 G&G 108 w. rivet link - d530zvmx2.gg.108

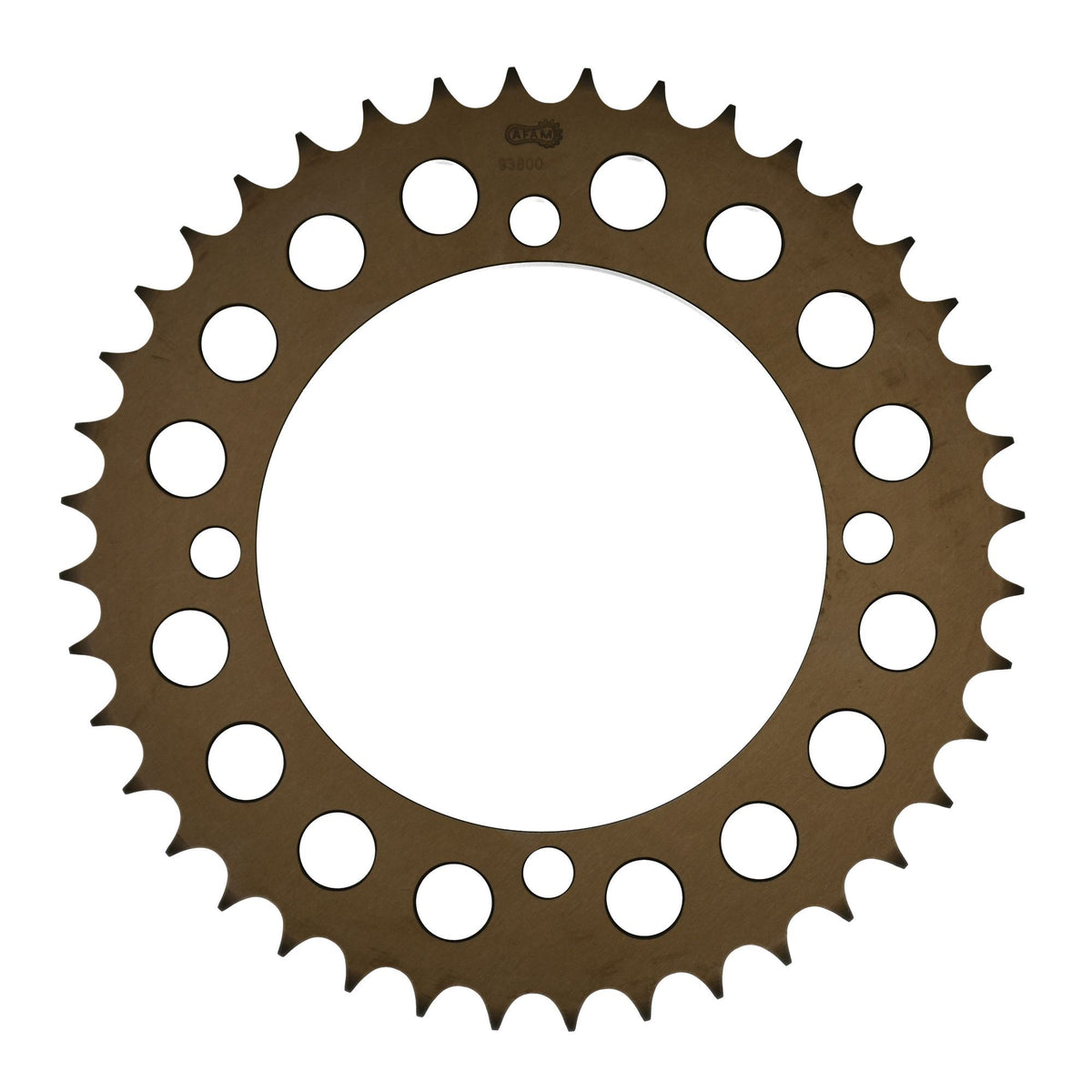

• Rear sprocket: AFAM rear sprocket ALU #530 40 teeth - a93800.40
• Gear ratio sprocket-chain-rear sprocket: 19-108-40

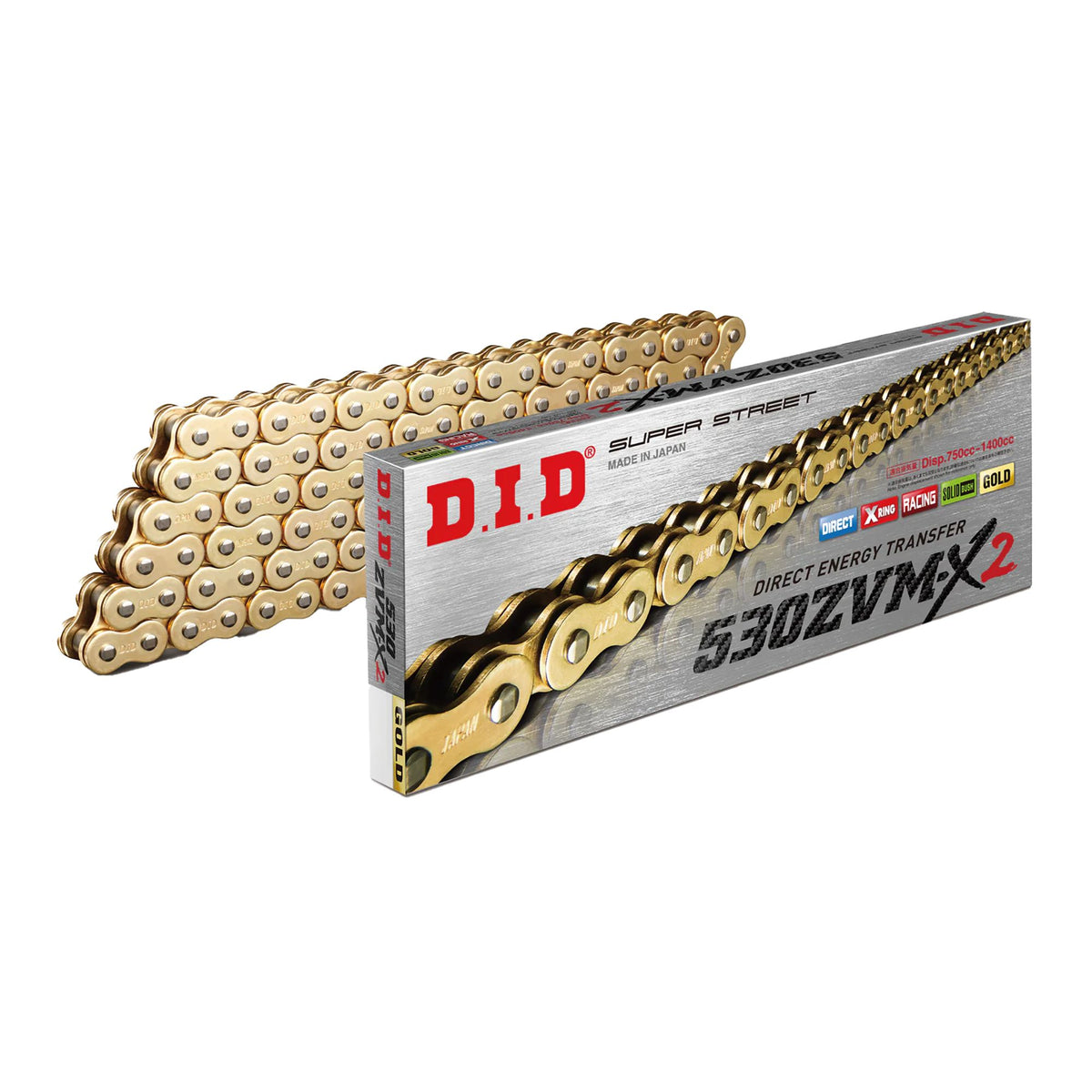

DID 530 ZVM-X2

Extra reinforced chain, versatile application area
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1400 cc

Technical specifications:
Pitch: 530
Pin length: 24.9 mm
Roller Ø: 10.32 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Wear resistance index: 4000
Tensile strength: 47.20 kN
Weight per 100 links: 2.20 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-63828

Suitable for

Laverda 751 - 1000 cc SFC 1000 (120 degree engine) 1985
Laverda 751 - 1000 cc SFC 1000 (120 degree engine) 1986
