DID chain set for Laverda Strike 750 98-01 520 ZVMX chain kit

DID Chain Kit for Laverda Strike 750 98-01 520 ZVMX Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

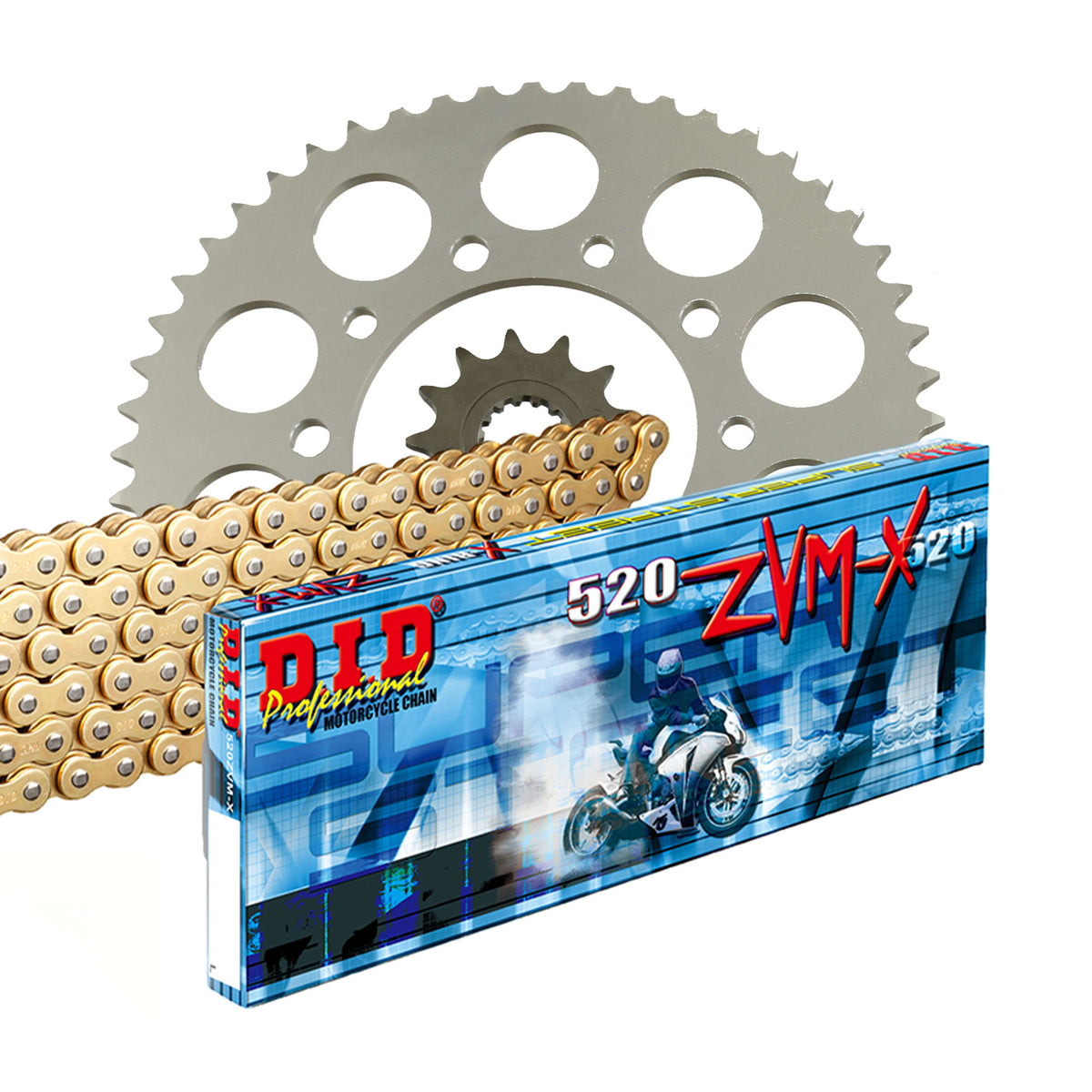

Components of the chain kit for Laverda Strike 750 1998-2001

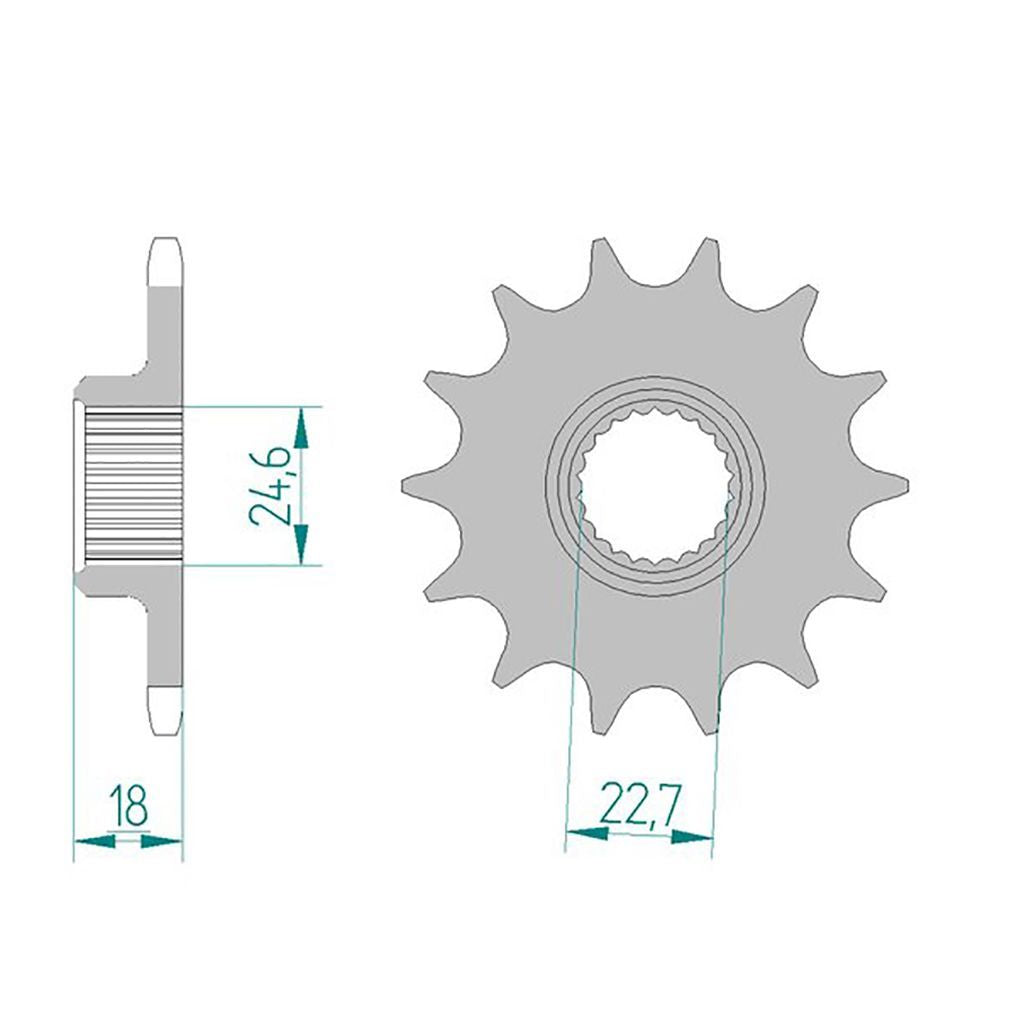

• Front sprocket: AFAM sprocket #520 16 teeth - a70600.16
• Chain: DID chain 520 ZVM-X G&G 110 w. rivet link - d6252029110

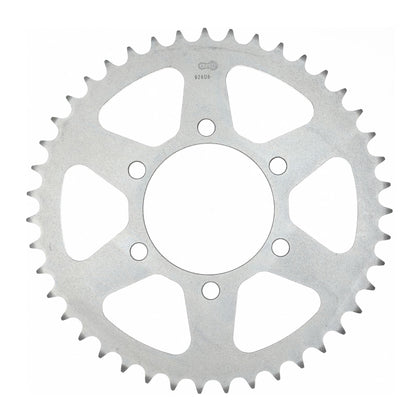

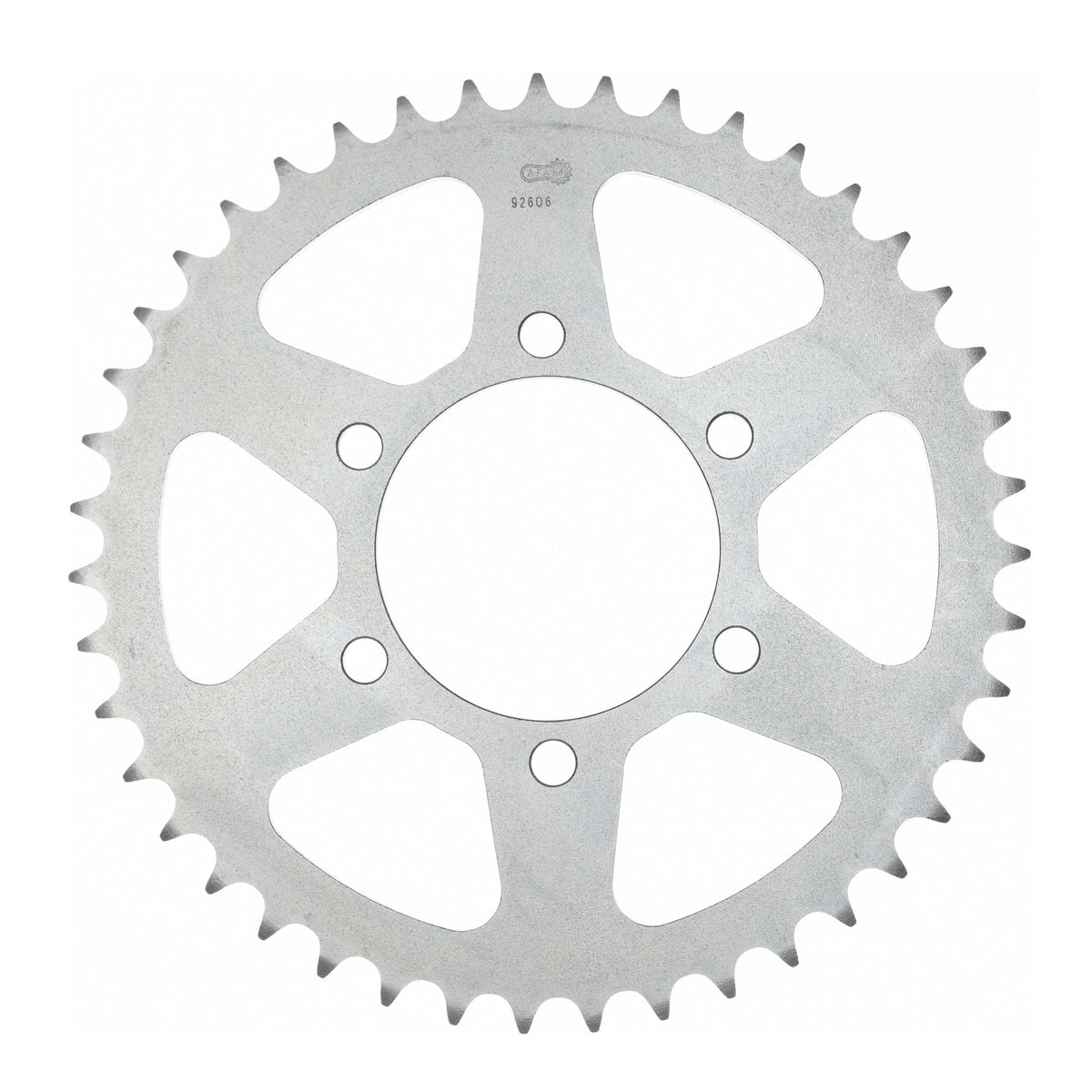

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a92606.43
• Gear ratio sprocket-chain-rear sprocket: 16-110-43

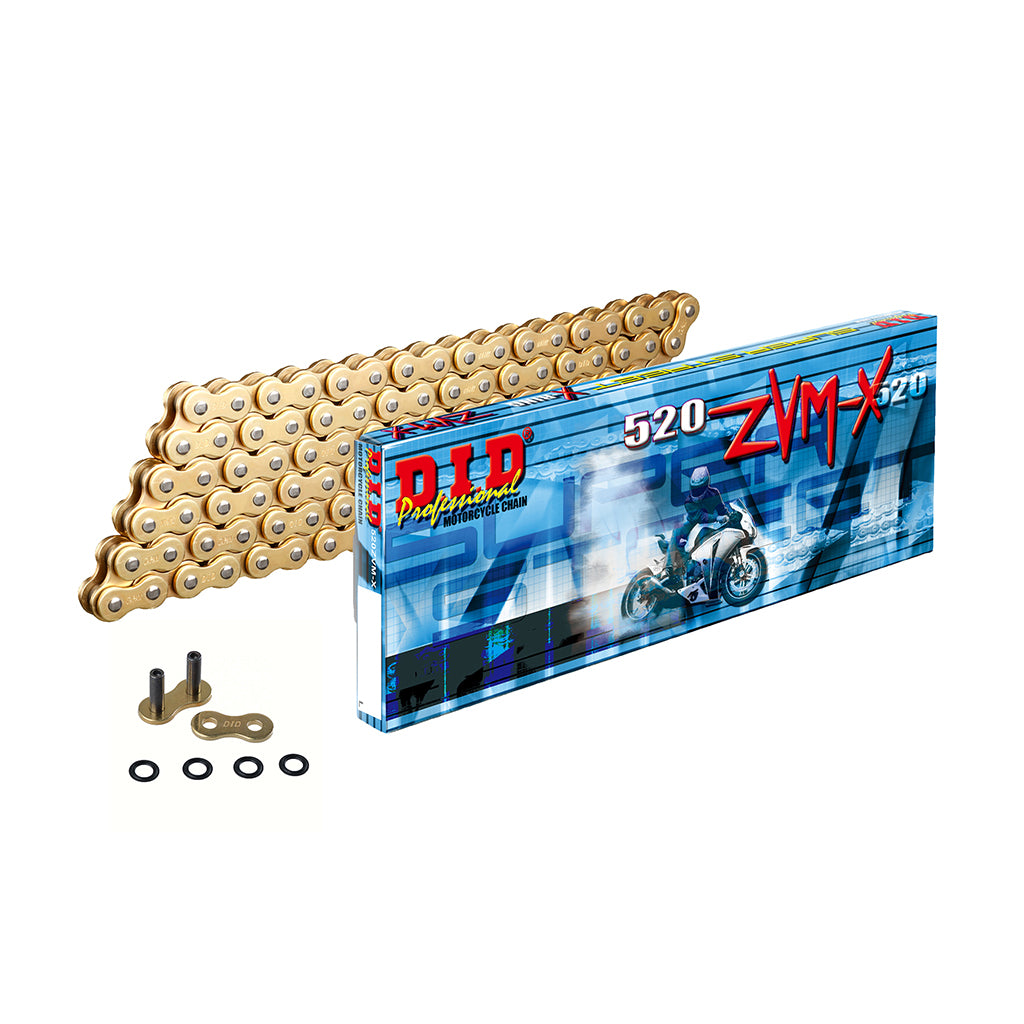

DID 520 ZVM-X

Extra reinforced chain, versatile application
X-ring chain
Color: Gold/Gold
Application by displacement: up to 1200 cc

Technical data:
Pitch: 520
Pin length: 21.0 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.2 mm
Wear resistance index: 3500
Tensile strength: 38.90 kN
Weight per 100 links: 1.63 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical data

Brand	DID
Part number	KKF-39454

Suitable for

Laverda 501 - 750 cc Strike 750 1998
Laverda 501 - 750 cc Strike 750 1999
Laverda 501 - 750 cc Strike 750 2000
Laverda 501 - 750 cc Strike 750 2001
