DID chain kit for Laverda Supersport 750 98-01 520 VX3 chain kit

DID chain kit for Laverda Supersport 750 98-01 520 VX3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit for Laverda Supersport 750 1998-2001

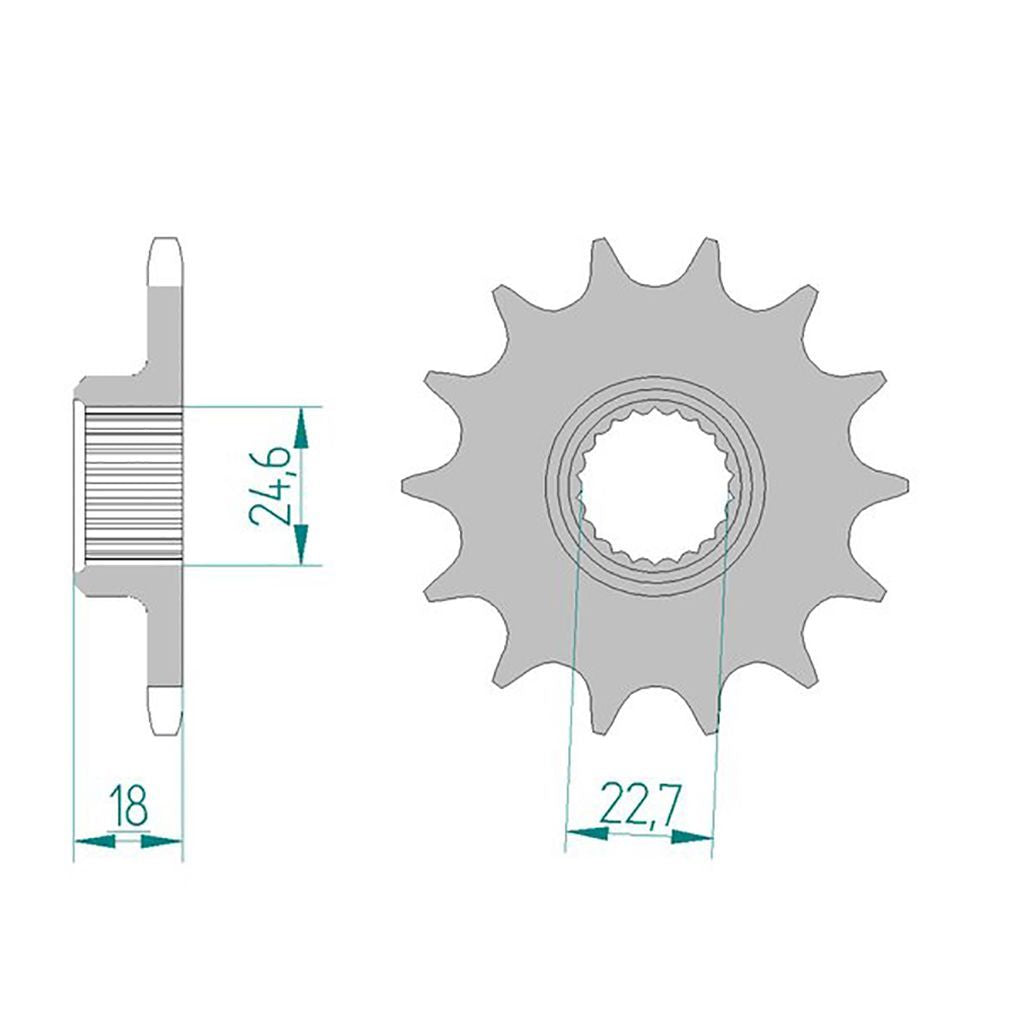

• Sprocket: AFAM sprocket #520 16 teeth - a70600.16
• Chain: DID chain 520 VX3 G&B 110 with rivet link - d520vx3-110

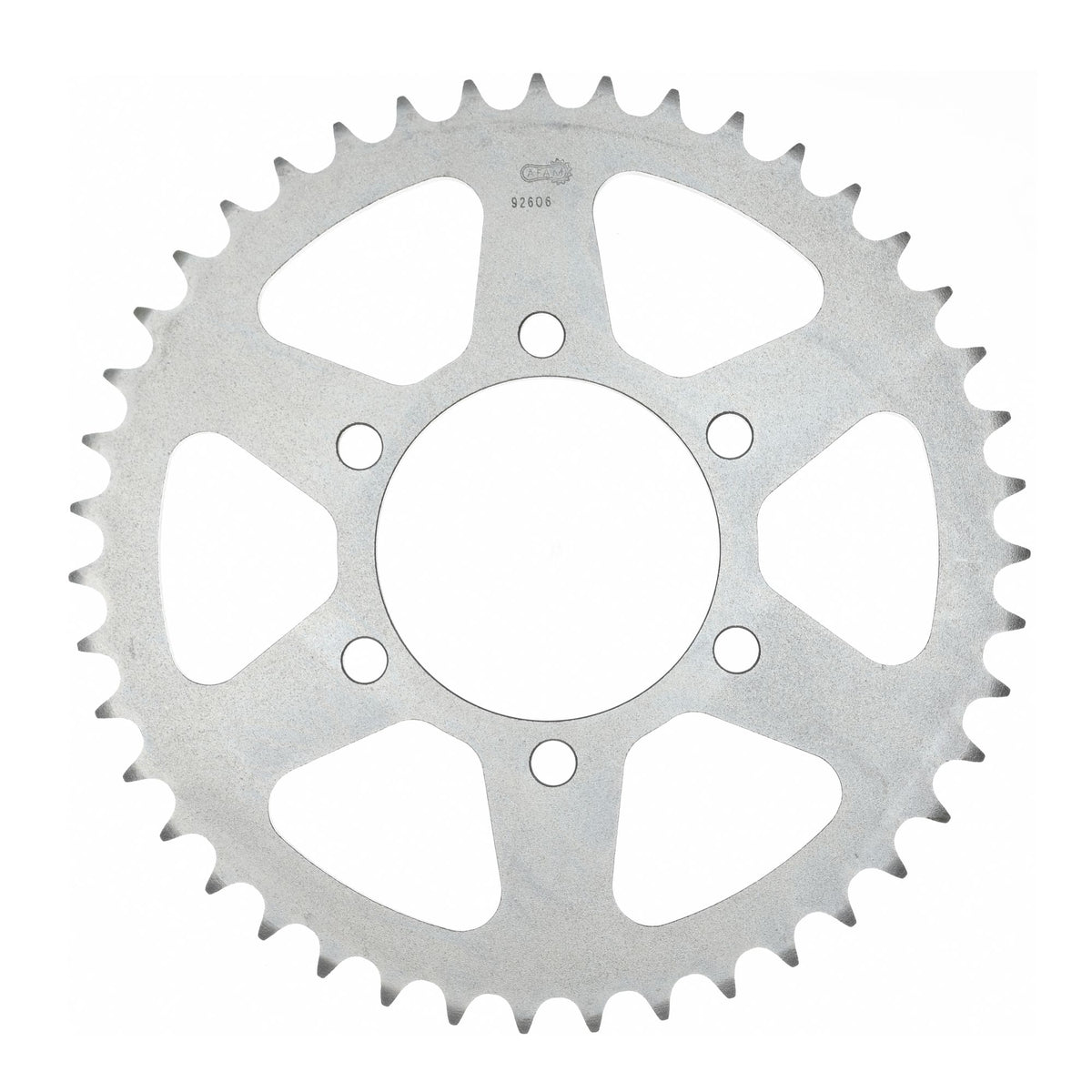

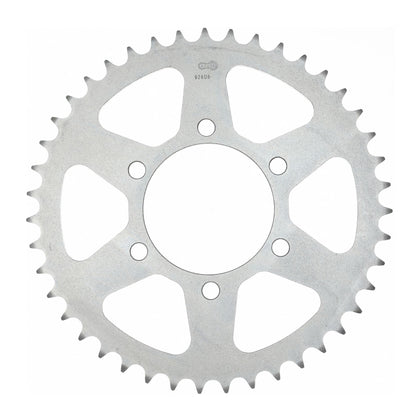

• Rear sprocket: AFAM rear sprocket STEEL #520 43 teeth - a92606.43
• Gear ratio sprocket-chain-rear sprocket: 16-110-43

DID 520 VX3

Successor to the proven 520 VX2
X-ring chain
Color: Gold/Black
Application by displacement: up to 750 cc

Technical specifications:
Pitch: 520
Pin length: 18.7 mm
Roller Ø: 10.22 mm
Inner plate thickness: 2.0 mm
Outer plate thickness: 2.0 mm
Wear resistance index: 3500
Tensile strength: 37.20 kN
Weight per 100 links: 1.52 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DID EUROPE S.R.L., Via del Fonditore 16 , 40138 Bologna IT, info@dideu.it

Technical specifications

Brand	DID
Item number	KKF-29881

Suitable for

Laverda 501 - 750 cc Supersport 750 1998
Laverda 501 - 750 cc Supersport 750 1999
Laverda 501 - 750 cc Supersport 750 2000
Laverda 501 - 750 cc Supersport 750 2001
